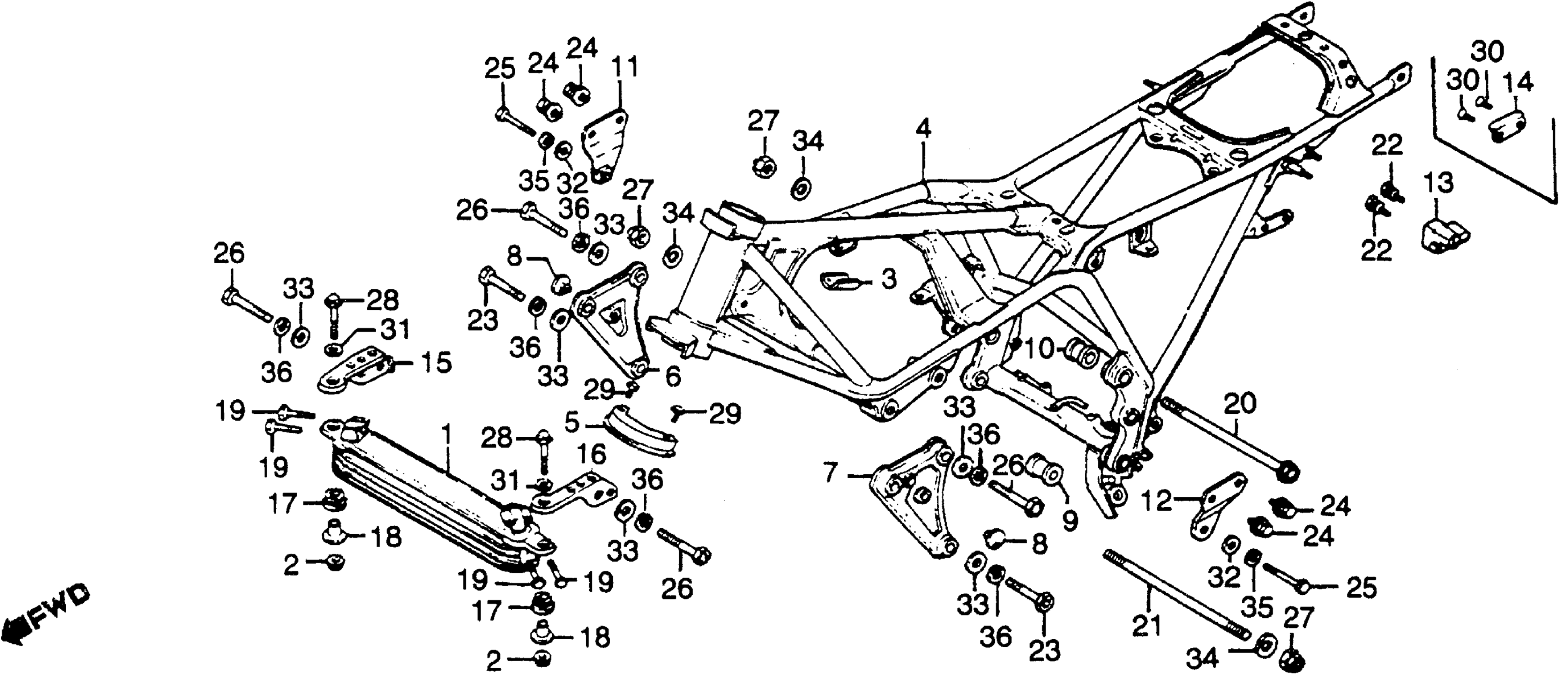

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 FRAME + OIL COOLER Diagram

#

Description
Price

1

COOLER, OIL (SHOWA) (NOT AVAILABLE)

15600-422-003

Unavailable

1

COOLER, OIL (DENSO) (NOT AVAILABLE)

15600-422-004

Unavailable

2

NUT, FLANGE (6MM) This part replaces 18362-329-690.

94050-06070

$1.49

2

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

2

NUT, FLANGE (6MM)

94050-06070

$1.49

3

RUBBER, BATTERY CUSHION | Use from Frame SN 2007031

31511-107-300

$4.69

4

FRAME *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN 2000978 This part replaces 50100-422-000ZA.

50100-422-020ZA

Unavailable

4

FRAME *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN 2011932 This part replaces 50100-422-010ZA.

50100-422-020ZA

Unavailable

4

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-422-020ZA

Unavailable

5

COVER, HANDLE STOPPER (NOT AVAILABLE)

50341-422-000

Unavailable

6

BRACKET, R. FR. ENGINE HANGER (NOT AVAILABLE)

50351-422-000

Unavailable

7

BRACKET, L. FR. ENGINE HANGER (NOT AVAILABLE)

50352-422-000

Unavailable

8

PLUG, ENGINE HANGER (NOT AVAILABLE)

50354-422-000

Unavailable

9

COLLAR A, ENGINE SIDE (NOT AVAILABLE)

50356-422-000

Unavailable

10

COLLAR B, ENGINE SIDE (NOT AVAILABLE) | Use up to Frame SN 2000049 This part replaces 50357-422-000.

50357-422-010

Unavailable

10

COLLAR B, ENGINE SIDE (NOT AVAILABLE)

50357-422-010

Unavailable

11

BRACKET, R. RR. ENGINE HANGER (NOT AVAILABLE)

50361-422-000

Unavailable

12

BRACKET, L. RR. ENGINE HANGER (NOT AVAILABLE)

50362-422-000

Unavailable

13

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

13

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

14

COVER, PAN SCREW (NOT AVAILABLE)

50715-149-300

Unavailable

15

STAY, R. OIL COOLER (NOT AVAILABLE) This part replaces 55105-422-000.

55105-422-010

Unavailable

15

STAY, R. OIL COOLER (NOT AVAILABLE)

55105-422-010

Unavailable

16

STAY, L. OIL COOLER (NOT AVAILABLE) This part replaces 55106-422-000.

55106-422-010

Unavailable

17

RUBBER, OIL COOLER MOUNTING (NOT AVAILABLE)

55107-422-000

Unavailable

18

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

85202-371-000

Unavailable

19

BOLT, FLANGE (6X35) This part replaces 90023-422-000.

96001-06035-07

$2.06

19

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

19

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

20

BOLT, RR. ENGINE (UPPER) (NOT AVAILABLE)

90102-422-000

Unavailable

21

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE) This part replaces 90103-422-000.

90103-422-010

Unavailable

23

BOLT, SOCKET (10X40) (NOT AVAILABLE) | Use up to Frame SN 2004639 This part replaces 90149-422-000.

90149-422-010

Unavailable

23

BOLT, SOCKET (10X40) (NOT AVAILABLE)

90149-422-010

Unavailable

24

BOLT-WASHER (8X20) (NOT AVAILABLE)

90173-422-000

Unavailable

25

BOLT, HEX. (8X45) This part replaces 90174-422-000.

95301-08045-00

Unavailable

25

BOLT, HEX. (8X45) This part replaces 90174-422-010.

95301-08045-00

Unavailable

26

BOLT (10X42) (NOT AVAILABLE) | Use up to Frame SN 2004639 This part replaces 90175-422-000.

90175-422-010

Unavailable

26

BOLT (10X42) (NOT AVAILABLE)

90175-422-010

Unavailable

27

NUT, SELF-LOCK (14MM) (NOT AVAILABLE)

90354-422-000

Unavailable

28

BOLT, CAP (6X25) (NOT AVAILABLE) BOLT, FLANGE (6X25)

92600-06025-0G

Unavailable

29

BOLT, HEX. (4X6) (NOT AVAILABLE) SCREW, PAN (4X6)

93000-04006-0G

Unavailable

30

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

30

SCREW, PAN (6X8)

93500-06008

$1.49

30

SCREW, PAN (6X8)

93500-06008-0A

$1.49

30

SCREW, PAN (6X8)

93500-06008-0H

$1.49

30

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

31

WASHER, PLAIN (6MM)

94101-06700

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, PLAIN (10MM)

94101-10000

$1.49

34

WASHER (14MM) (NOT AVAILABLE) | Use from Frame SN 2005675

90600-422-000

Unavailable

34

WASHER, PLAIN (14MM) | Use up to Frame SN 2005674

94102-14000

$1.49

35

WASHER, SPRING (8MM)

94111-08000

$1.49

36

WASHER, SPRING (10MM)

94111-10000

$1.49
