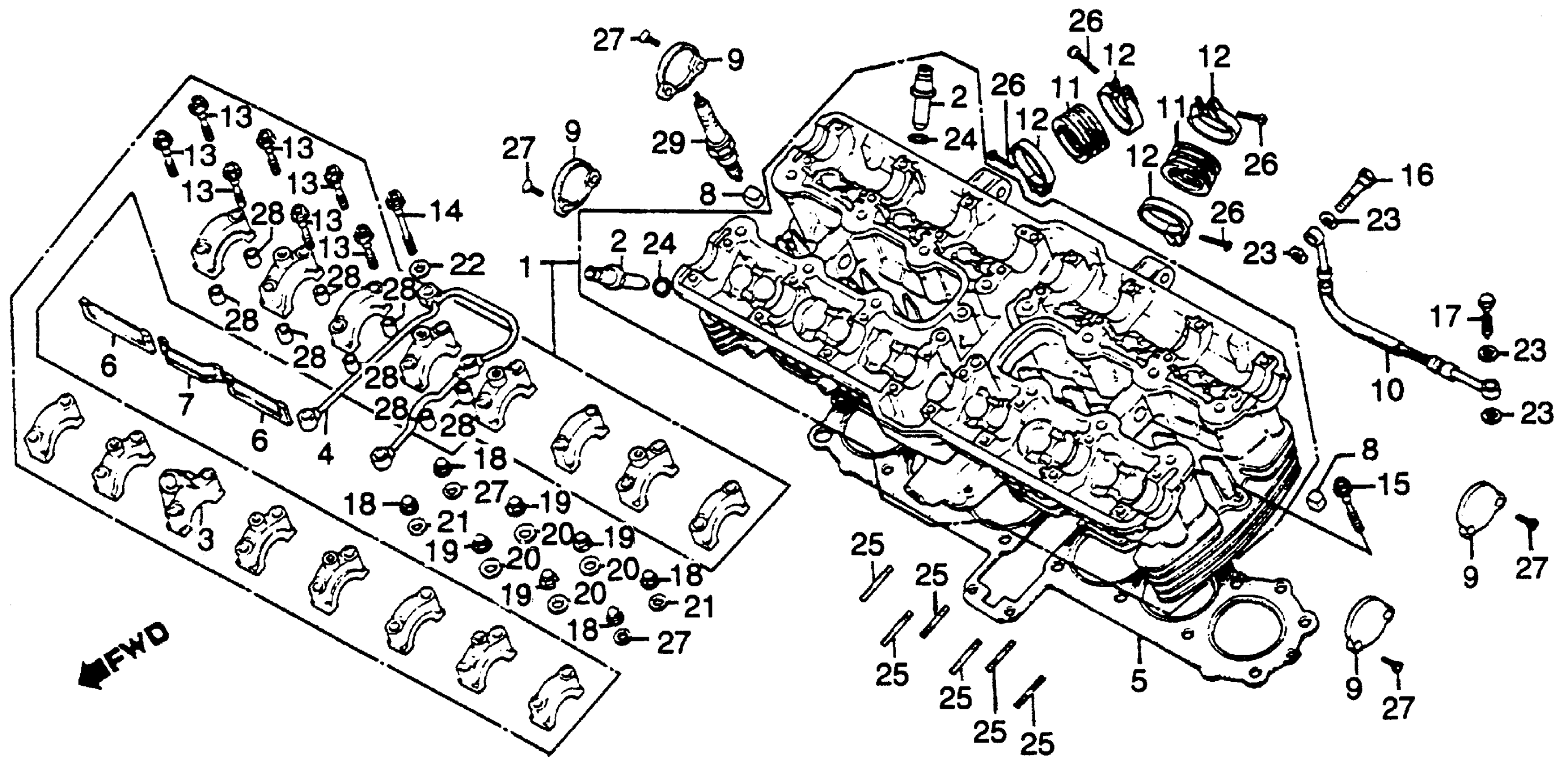

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12010-422-000

Unavailable

2

GUIDE, VALVE This part replaces 12204-422-305.

12204-461-405

Unavailable

2

GUIDE, VALVE

12204-461-405

Unavailable

3

HOLDER F, CAMSHAFT (NOT AVAILABLE)

12216-422-305

Unavailable

4

PIPE, OIL PASSAGE (NOT AVAILABLE)

12230-422-000

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-422-000.

12251-422-306

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-422-010.

12251-422-306

Unavailable

5

GASKET, CYLINDER HEAD

12251-422-306

Unavailable

6

PLATE A, OIL POOL (NOT AVAILABLE)

12261-422-000

Unavailable

7

PLATE B, OIL POOL (NOT AVAILABLE)

12262-422-000

Unavailable

8

RUBBER, INSERT (NOT AVAILABLE)

12295-422-000

Unavailable

9

CAP, HEAD COVER

12315-422-000

Unavailable

10

PIPE, OIL (NOT AVAILABLE)

15520-422-003

Unavailable

11

INSULATOR, CARBURETOR

16211-422-000

$38.23

12

BAND, INSULATOR

16219-422-000

$12.72

13

BOLT, FLANGE (6X48)

90001-422-000

Unavailable

14

BOLT, FLANGE (6X62) (NOT AVAILABLE)

90002-422-000

Unavailable

15

BOLT, UBS (8X50) (NOT AVAILABLE)

90012-422-000

Unavailable

16

BOLT, OIL (NOT AVAILABLE)

90025-422-000

Unavailable

17

BOLT, OIL CONTROL (NOT AVAILABLE)

90045-422-000

Unavailable

18

NUT, FLANGE CAP (8MM) (NOT AVAILABLE)

90203-422-000

Unavailable

19

NUT, FLANGE CAP (10MM) (NOT AVAILABLE)

90204-422-000

Unavailable

20

WASHER, SEALING (10MM) This part replaces 90403-422-000.

90403-438-003

$8.16

20

WASHER, SEALING (10MM)

90403-438-003

$8.16

21

WASHER, SEALING (8MM)

90441-422-000

$4.85

22

WASHER, SEALING (6MM)

90442-035-000

$2.21

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

O-RING (10X1.6)

91301-200-000

$3.01

25

BOLT, STUD (6X50) BOLT, STUD (6X55)

92700-06050-0E

$1.54

26

SCREW, PAN (5X20)

93500-05020-0G

$1.49

27

SCREW, OVAL (5X16)

93700-05016-0B

$1.49

28

PIN, DOWEL (8X14)

94301-08140

$2.25

29

SPARK PLUG (D7EA) (NGK) | (Optional).

98069-57717

$2.44

29

SPARK PLUG (X22ES-U) (DENSO) | (Optional).

98069-57727

Unavailable

29

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

29

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20

29

SPARK PLUG (D9EA) (NGK) | (Optional).

98069-59717

$2.44

29

SPARK PLUG (X27ES-U) (DENSO) | (Optional).

98069-59727

Unavailable
