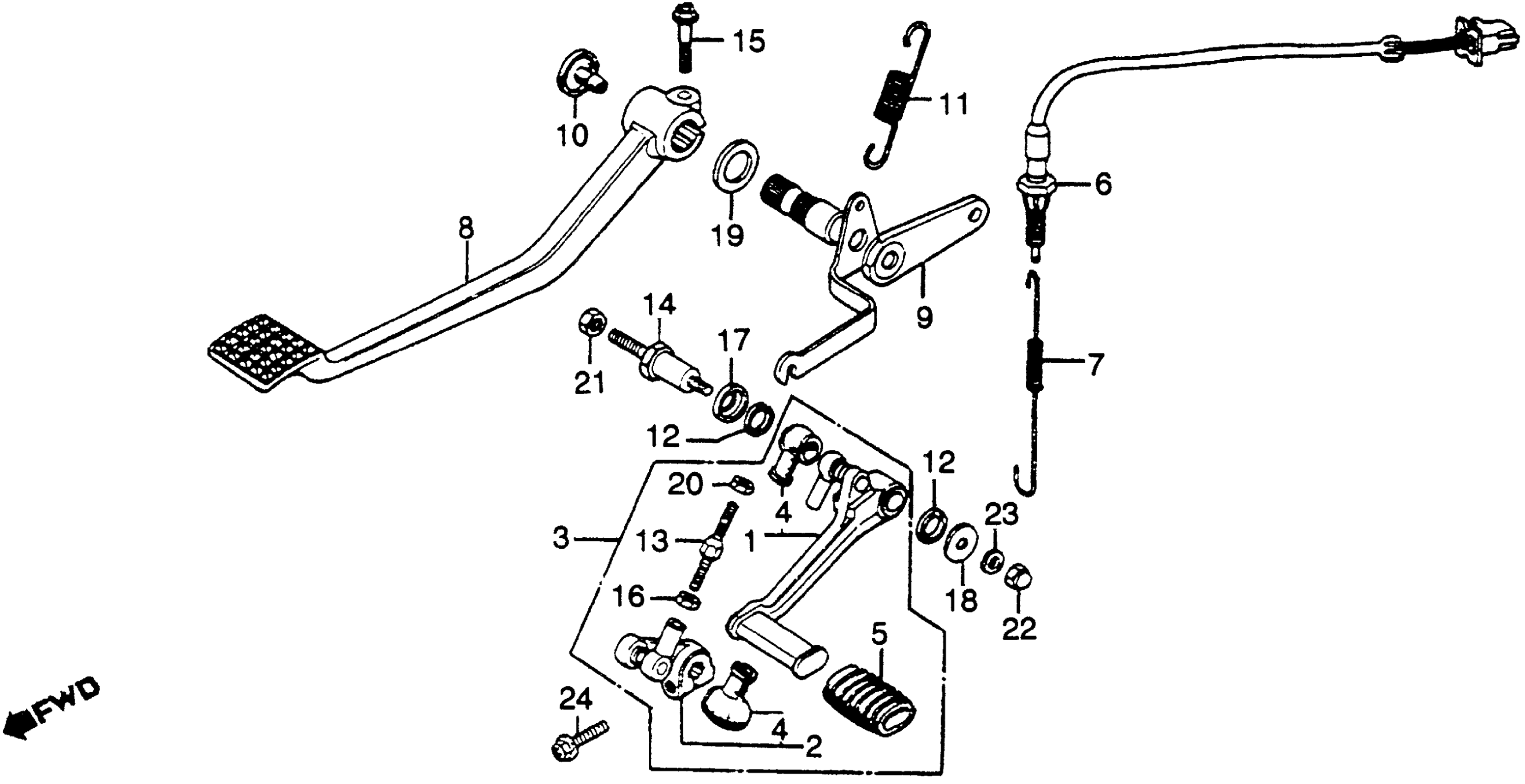

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 BRAKE PEDAL + SHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-422-670

Unavailable

2

ARM, GEARSHIFT (NOT AVAILABLE)

24710-422-670

Unavailable

3

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24720-422-670

Unavailable

4

COVER, DUST

24724-422-000

$6.68

5

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

6

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-422-003

Unavailable

7

SPRING, STOP SWITCH

35357-358-000

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-422-000.

46500-MA2-000

Unavailable

9

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-422-670

Unavailable

10

CAP, RR. BRAKE PEDAL (NOT AVAILABLE)

46511-422-000

Unavailable

11

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-422-000

Unavailable

12

DUST SEAL, BRAKE PEDAL (NOT AVAILABLE)

46516-357-000

Unavailable

13

BOLT, TIE ROD (NOT AVAILABLE)

90065-422-670

Unavailable

14

BOLT, SHIFT PEDAL PIVOT (NOT AVAILABLE)

90101-422-000

Unavailable

15

BOLT, SPECIAL FLANGE (8X30) (NOT AVAILABLE)

90179-422-000

Unavailable

16

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

17

WASHER A, SHIFT PEDAL PIVOT (NOT AVAILABLE)

90501-422-000

Unavailable

18

WASHER B, SHIFT PEDAL PIVOT (NOT AVAILABLE)

90502-422-000

Unavailable

19

WASHER, RR. BRAKE THRUST (NOT AVAILABLE)

90505-422-000

Unavailable

20

NUT, HEX. (6MM) This part replaces 94002-06020.

94002-06020-0S

$1.49

20

NUT, HEX. (6MM)

94002-06020-0S

$1.49

21

NUT, HEX. (10MM)

94002-10020-0S

Unavailable

22

NUT, CAP (8MM)

94021-08020-0S

$1.82

23

WASHER, PLAIN (8MM)

94101-08200

$1.49

24

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

24

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
