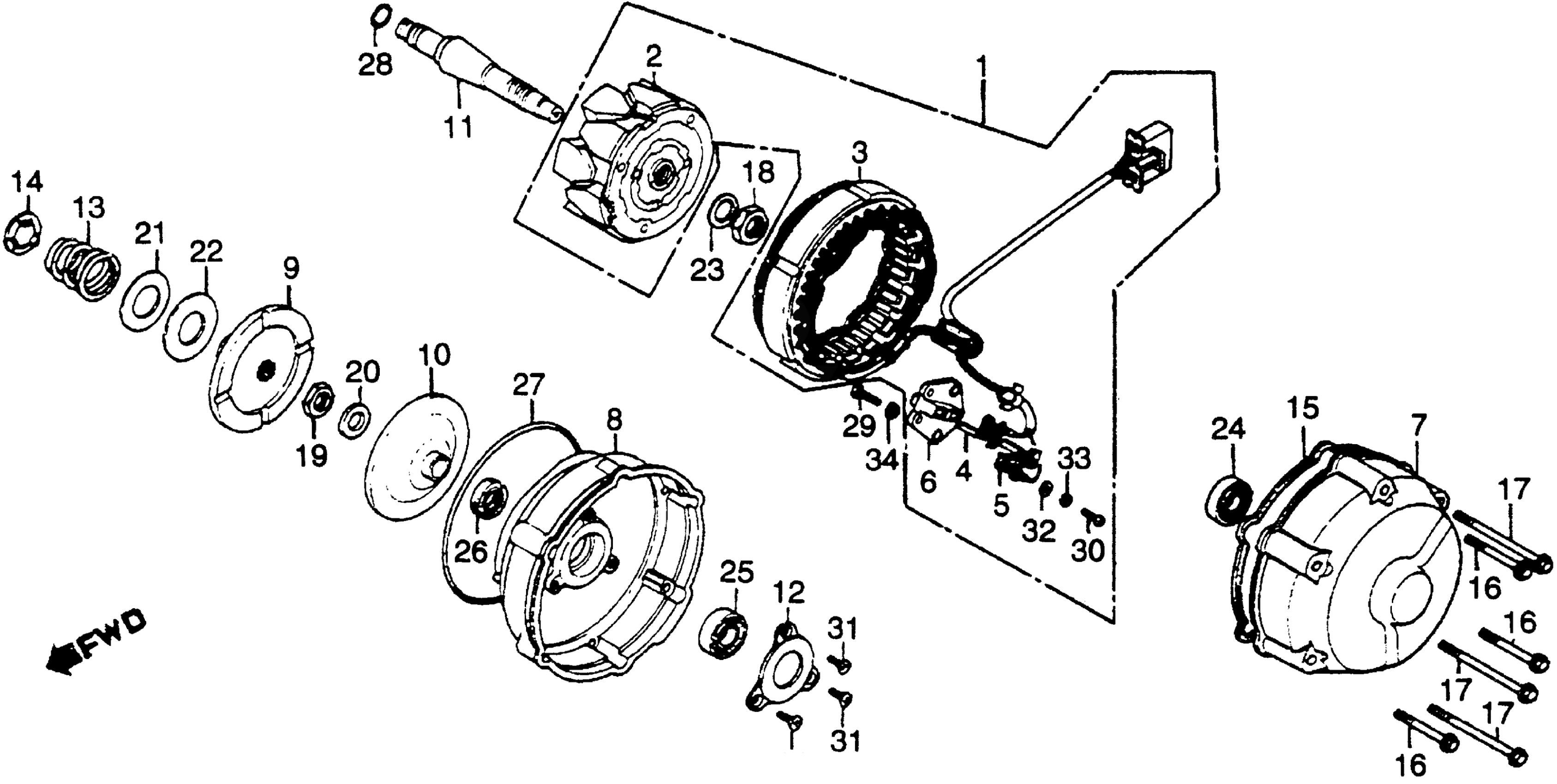

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY. | Use up to Engine SN 2009932 This part replaces 31100-422-005.

31100-422-415

Unavailable

1

ALTERNATOR ASSY. This part replaces 31100-422-015.

31100-422-415

Unavailable

2

ROTOR (HITACHI) (NOT AVAILABLE)

31110-422-005

Unavailable

3

STATOR This part replaces 31120-422-005.

31120-422-415

Unavailable

4

BRUSH A

31124-MG5-000

Unavailable

4

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

5

BRUSH B

31125-MG5-005

Unavailable

5

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

6

BASE, BRUSH | Use up to Engine SN 2009932 This part replaces 31126-422-005.

31126-422-015

Unavailable

6

BASE, BRUSH | Use up to Engine SN 2009932

31126-422-015

Unavailable

6

BASE, BRUSH

31126-422-015

Unavailable

7

COVER A, ALTERNATOR (NOT AVAILABLE) This part replaces 31131-422-000.

31131-422-010

Unavailable

7

COVER A, ALTERNATOR (NOT AVAILABLE)

31131-422-010

Unavailable

8

COVER B, ALTERNATOR (NOT AVAILABLE) This part replaces 31132-422-000.

31132-422-010

Unavailable

8

COVER B, ALTERNATOR (NOT AVAILABLE)

31132-422-010

Unavailable

9

PLATE A, ALTERNATOR COUPLING

31133-422-000

Unavailable

10

PLATE B, ALTERNATOR COUPLING

31134-422-000

Unavailable

11

SHAFT, ALTERNATOR (NOT AVAILABLE)

31135-422-000

Unavailable

12

PLATE, BEARING SETTING (NOT AVAILABLE)

31136-422-000

Unavailable

13

SPRING, ALTERNATOR COUPLING

31138-422-010

Unavailable

14

SEAT, ALTERNATOR COUPLING SPRING (NOT AVAILABLE)

31139-422-000

Unavailable

15

GASKET, ALTERNATOR COVER (AS) This part replaces 31140-422-000.

31140-422-306

Unavailable

15

GASKET, ALTERNATOR COVER (AS) This part replaces 31140-422-010.

31140-422-306

Unavailable

15

GASKET, ALTERNATOR COVER (AS)

31140-422-306

Unavailable

16

BOLT, FLANGE (6X65) This part replaces 90006-422-000.

96000-06065-02

Unavailable

16

BOLT, FLANGE (6X65)

96000-06065-02

Unavailable

17

BOLT, FLANGE (6X90) (NOT AVAILABLE) This part replaces 90007-422-000.

96000-06090-02

Unavailable

17

BOLT, FLANGE (6X90) (NOT AVAILABLE)

96000-06090-02

Unavailable

18

NUT, HEX. (16MM) (NOT AVAILABLE)

90201-611-010

Unavailable

19

NUT A, LOCK (14MM) (NOT AVAILABLE)

90233-701-010

Unavailable

20

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-395-000

Unavailable

21

WASHER, THRUST (28MM) (NOT AVAILABLE) SEAT, ALTERNATOR SPRING

90458-703-000

Unavailable

22

PLATE, SPECIAL (NOT AVAILABLE)

90466-422-000

Unavailable

23

WASHER, FR. FORK (NOT AVAILABLE)

90540-051-000

Unavailable

24

BEARING, RADIAL BALL (6201) (NACHI) (NOT AVAILABLE)

91004-422-003

Unavailable

24

BEARING, RADIAL BALL (6201) (NACHI) (NOT AVAILABLE) This part replaces 91004-422-004.

91004-422-003

Unavailable

25

BEARING, RADIAL BALL (6203) (NOT AVAILABLE) This part replaces 91005-422-004.

91005-422-014

Unavailable

25

BEARING, RADIAL BALL (6203) (NOT AVAILABLE)

91005-422-014

Unavailable

26

OIL SEAL (22X35X7) (ARAI)

91216-PA0-003

$10.74

26

OIL SEAL (22X35X7) (ARAI) This part replaces 91216-397-005.

91216-PA0-003

$10.74

27

GASKET, ALTERNATOR CASE

91302-422-000

Unavailable

28

O-RING (12.5X2.2) This part replaces 91303-611-000.

91303-634-010

$5.69

28

O-RING (12.5X2.2) This part replaces 91303-634-000.

91303-634-010

$5.69

28

O-RING (12.5X2.2)

91303-634-010

$5.69

29

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

SCREW, PAN (4X12)

93500-04012-0H

$1.49

31

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

31

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

32

WASHER, PLAIN (4MM)

94101-04800

$1.49

33

WASHER, SPRING (4MM)

94111-04800

$1.49

34

WASHER, SPRING (6MM)

94111-06800

$1.49
