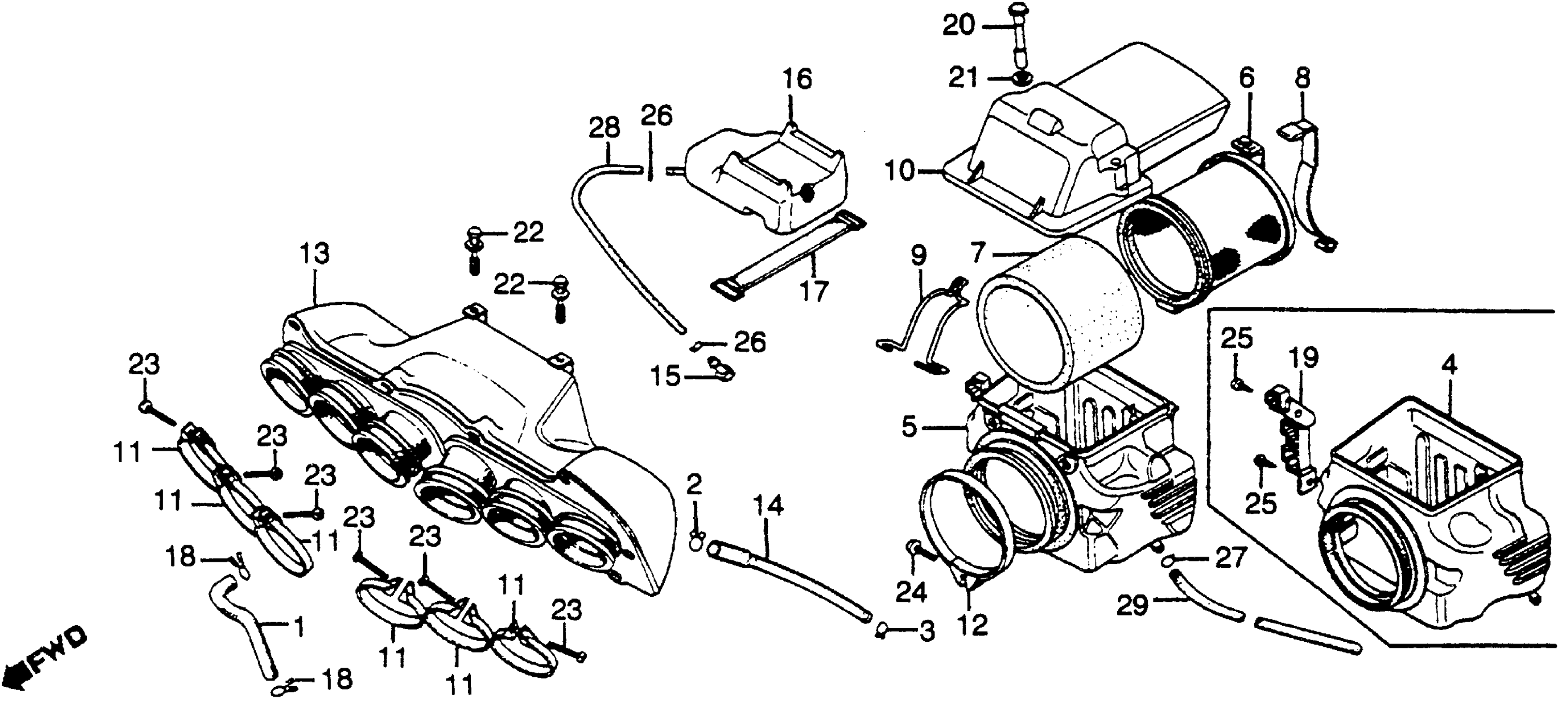

Honda CBXA (79) SUPER SPORT, JPN, VIN# CB1-2000042 TO CB1-2023175 AIR CLEANER Diagram

TUBE, BREATHER

15763-422-000

Unavailable

CLIP, BREATHER TUBE

15772-292-010

$2.92

CLIP, BREATHER TUBE

15772-500-010

$3.90

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

CASE ASSY., AIR CLEANER (NOT AVAILABLE)

17205-422-305

Unavailable

TRAP, FLAME (NOT AVAILABLE)

17211-422-000

Unavailable

ELEMENT, AIR CLEANER

17213-422-000

Unavailable

SPRING, ELEMENT SETTING (NOT AVAILABLE)

17217-422-000

Unavailable

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-422-000

Unavailable

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17255-422-000.

95018-60250

$6.25

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$6.25

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

BAND, CONNECTING TUBE This part replaces 17256-422-000.

17256-HB9-000

Unavailable

CHAMBER ASSY., AIR CLEANER (NOT AVAILABLE)

17300-MA2-000

Unavailable

CHAMBER ASSY., AIR CLEANER (NOT AVAILABLE) This part replaces 17300-422-000.

17300-MA2-000

Unavailable

TUBE ASSY., DRAIN (NOT AVAILABLE)

17358-422-670

Unavailable

PLUG, BREATHER TUBE

17370-419-700

$3.74

TANK, STORAGE (NOT AVAILABLE)

17551-422-670

Unavailable

BAND, STORAGE TANK (NOT AVAILABLE)

17552-422-670

Unavailable

CLIP, AIR HOSE (16MM)

18534-634-670

$5.76

HOLDER B, CONNECTOR (NOT AVAILABLE)

32411-422-000

Unavailable

NUT, AIR CLEANER DUCT SETTING

90126-422-000

$8.09

WASHER (7X12)

90501-310-000

$1.74

BOLT-WASHER (6X35) (NOT AVAILABLE)

93481-06035-00

Unavailable

SCREW, PAN (4X20)

93500-04020-0G

$1.49

SCREW, PAN (5X16)

93500-05016-0A

$1.49

SCREW, TAPPING (5X12)

93901-35210

$1.49

CLIP, TUBE (B12.5)

95002-02130

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

BULK HOSE, VACUUM (8X1000) (8X330)

95005-80001-20M

$23.91

BULK HOSE, VACUUM (8X1000) (8X450)

95005-80001-30M

Unavailable
