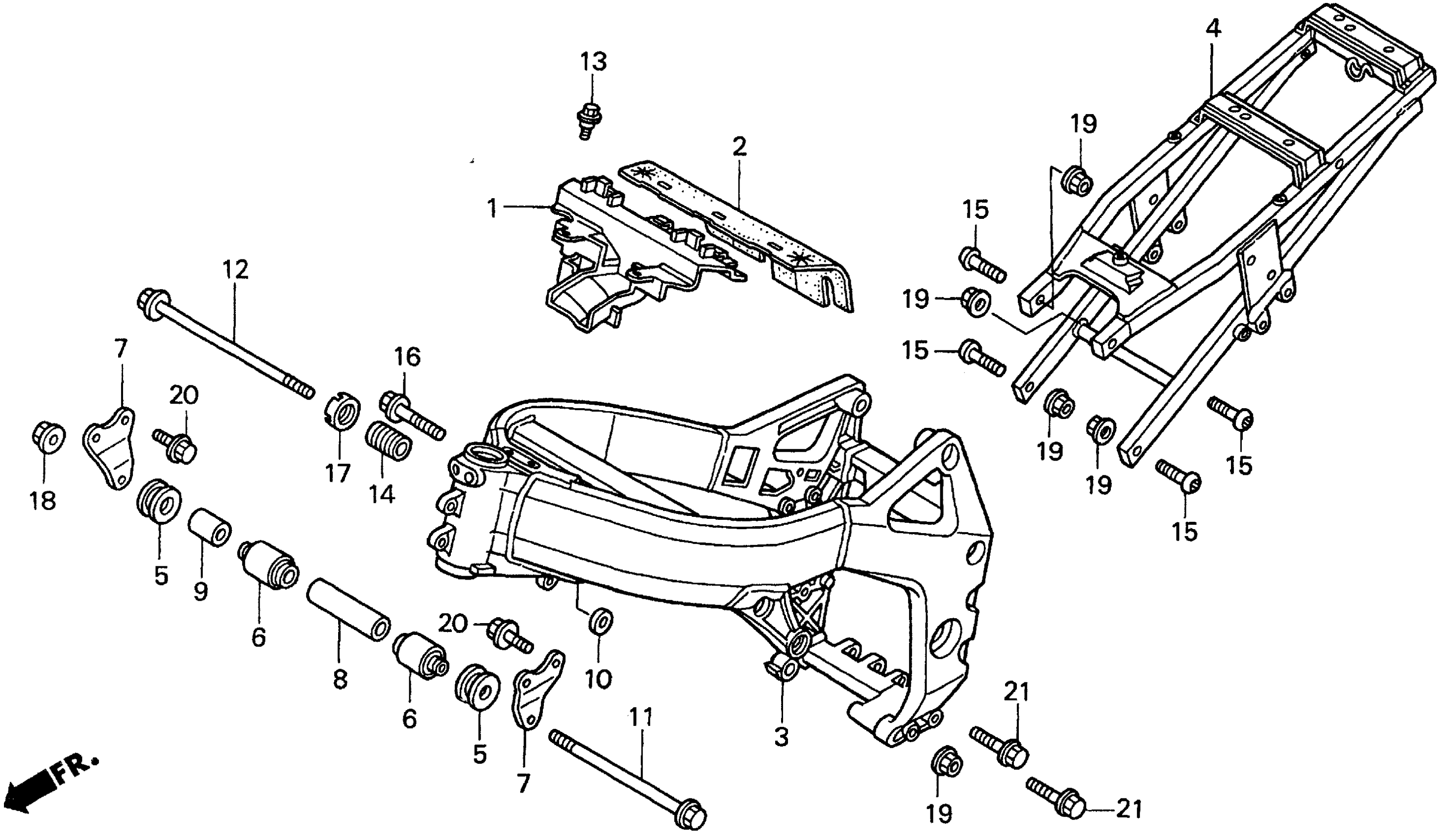

Honda CBR900RRAC (99) MOTORCYCLE, JPN, VIN# JH2SC331-XM300001 FRAME Diagram

#

Description
Price

1

GUARD A, HEAT

19125-MAS-000

Unavailable

2

GUARD B, HEAT

19126-MAS-000

Unavailable

3

FRAME

50100-MAS-L00

Unavailable

4

RAIL, SEAT

50200-MAS-E00

Unavailable

5

RUBBER C, MOUNTING

50203-MW0-000

Unavailable

6

RUBBER, MOUNTING E

50205-MAH-000

$13.59

7

PLATE, ENGINE HANGER

50355-MAS-E00

Unavailable

8

COLLAR, ENGINE HANGER CENTER (UPPER)

50356-MW0-000

Unavailable

9

COLLAR, RR. ENGINE HANGER (UPPER)

50357-MW0-000

Unavailable

10

COLLAR, FR. ENGINE HANGER (UPPER)

50358-MW0-000

Unavailable

11

BOLT, ENGINE HANGER (10X278)

90104-MAS-E00

Unavailable

12

BOLT, ENGINE HANGER (10X285)

90105-MW0-000

$25.75

13

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

14

BOLT, RR. HANGER ADJUSTING (UPPER) (NOT AVAILABLE)

90125-MR8-000

Unavailable

15

BOLT, SOCKET (10X42)

90152-MW0-000

$7.56

16

BOLT, FLANGE (10X47)

90180-SF4-010

Unavailable

17

NUT, LOCK (22X2.0)

90310-MR7-000

$26.75

18

NUT, FLANGE (10MM)

90373-SP0-000

$7.05

19

NUT, FLANGE (10MM)

94050-10000

$1.59

20

BOLT, FLANGE (8X25)

96300-08025-00

$1.62

21

BOLT, FLANGE (10X40)

96300-10040-00

$3.23
