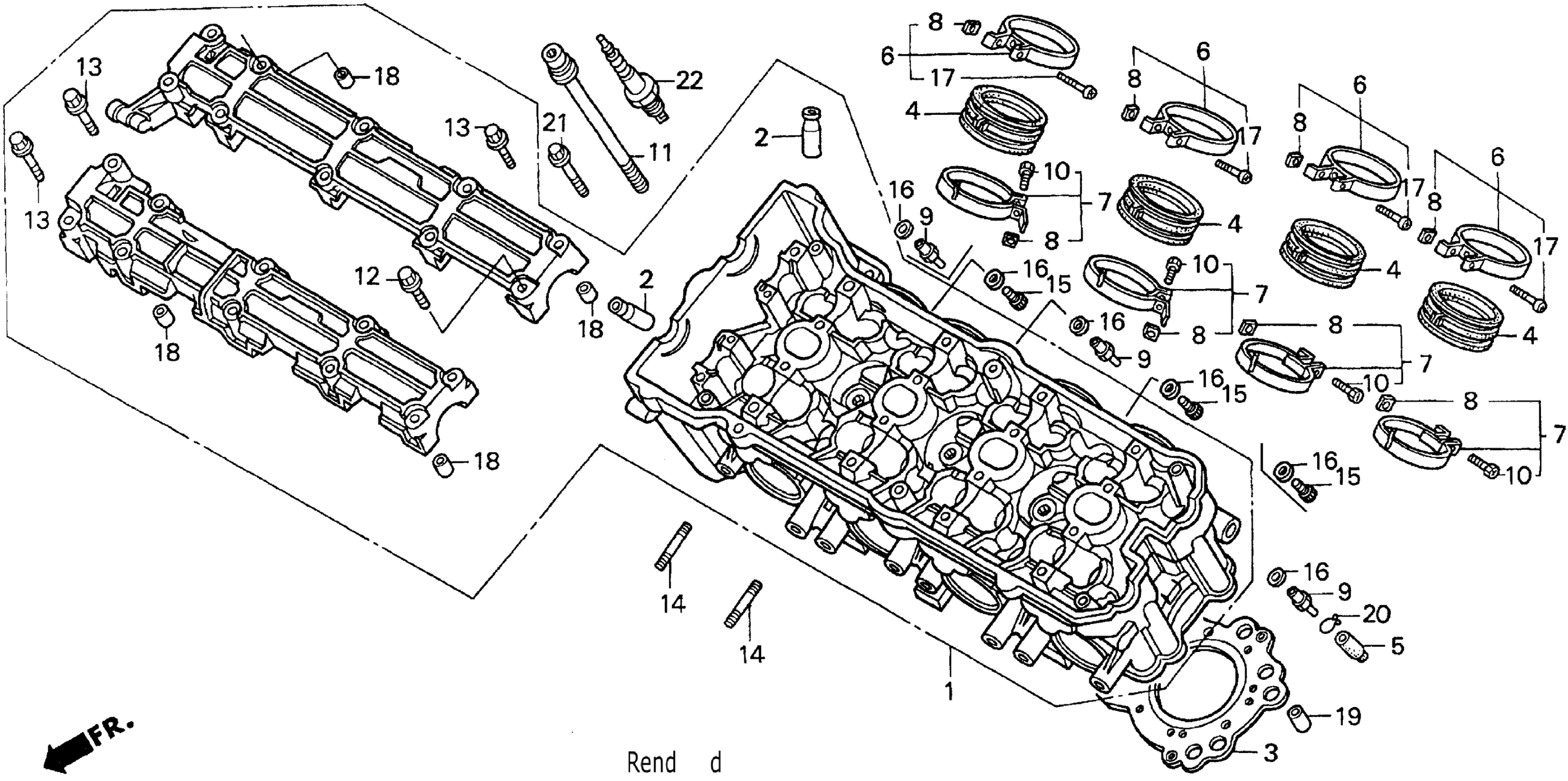

Honda CBR900RRAC (98) MOTORCYCLE, JPN, VIN# JH2SC331-WM200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MAS-L00

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MW0-305

Unavailable

3

GASKET, CYLINDER HEAD

12251-MAS-E01

Unavailable

4

INSULATOR, CARBURETOR

16211-MAS-E00

$14.67

6

BAND A, INSULATOR

16217-MAS-E00

Unavailable

7

BAND B, INSULATOR

16218-MAS-E00

Unavailable

8

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

9

JOINT, BOOST

17113-KEA-000

$7.16

10

BOLT, RECESSED (5X28)

90005-MAS-E00

$3.20

11

BOLT-WASHER (9X95)

90007-MAL-A00

$8.07

12

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

13

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

14

BOLT, STUD (8X24)

90035-MM5-000

$5.12

15

BOLT, SOCKET (5X8) | Use up to Engine SN 2222270

90089-MN8-000

Unavailable

15

BOLT, RECESSED (5X8) | Use from Engine SN 2222271

92301-05008-0A

$1.49

16

WASHER, SEALING (5MM)

90452-323-000

$1.59

17

SCREW, PAN (5X32)

93500-05032-0G

$1.49

18

PIN, DOWEL (8X20)

94301-08200

$2.25

19

PIN, DOWEL (10X16)

94301-10160

$2.28

21

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

22

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
