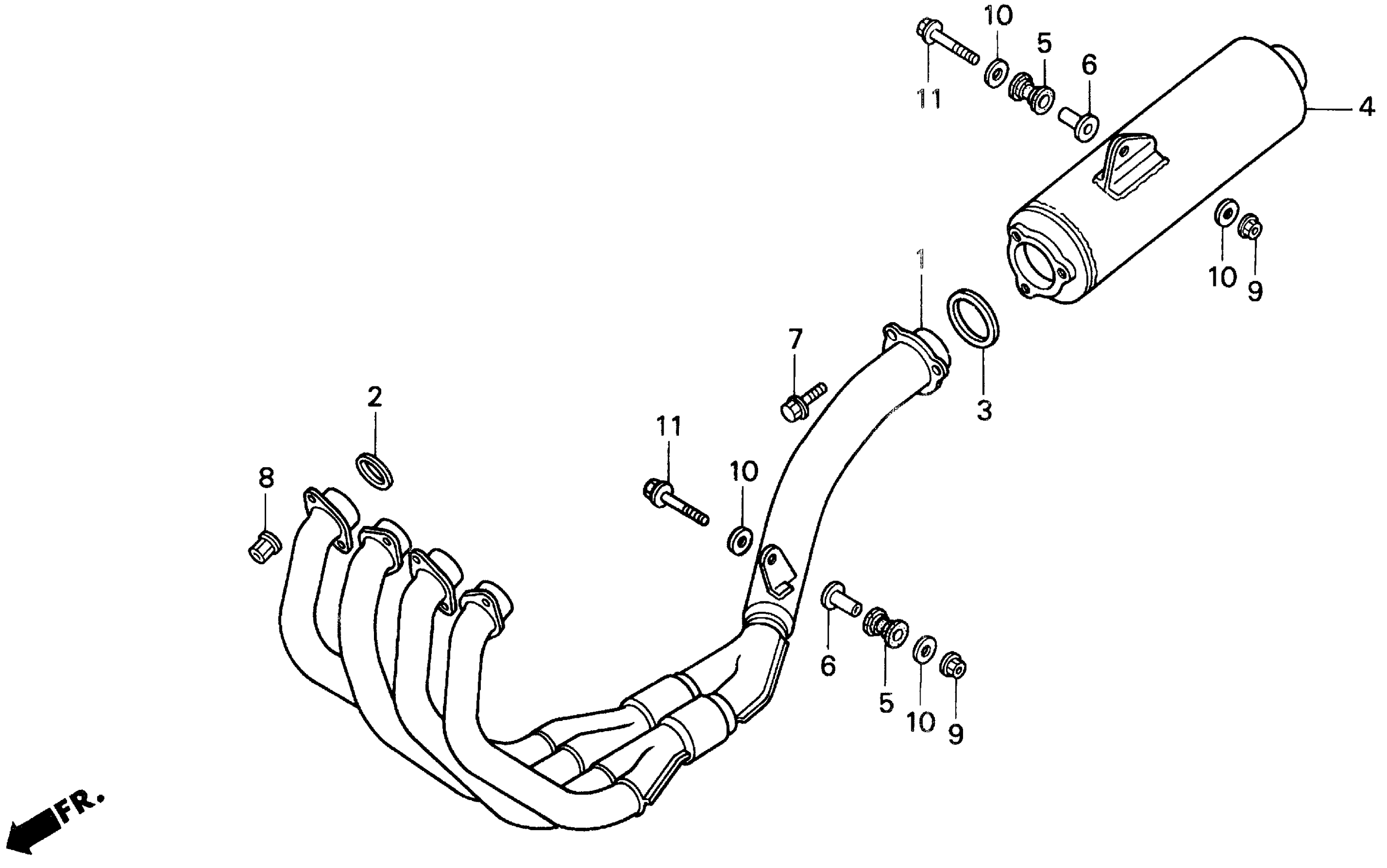

Honda CBR900RRAC (97) MOTORCYCLE, JPN, VIN# JH2SC331-VM100001 MUFFLER Diagram

#

Description

Price

1

PIPE, EX.

18150-MAS-780

Unavailable

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, MUFFLER

18292-MV4-000

$8.68

4

MUFFLER

18310-MAS-670

Unavailable

5

RUBBER, MUFFLER SETTING

18421-MA6-000

$7.04

6

COLLAR, MUFFLER SETTING

18422-MA6-000

$7.91

7

BOLT, FLANGE (8X20) This part replaces 90101-MW0-790.

96300-08020-07

$2.00

8

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

9

NUT, FLANGE (8MM)

94050-08000

$1.49

10

WASHER, PLAIN (8MM)

94103-08000

$1.49

11

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

11

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.98
