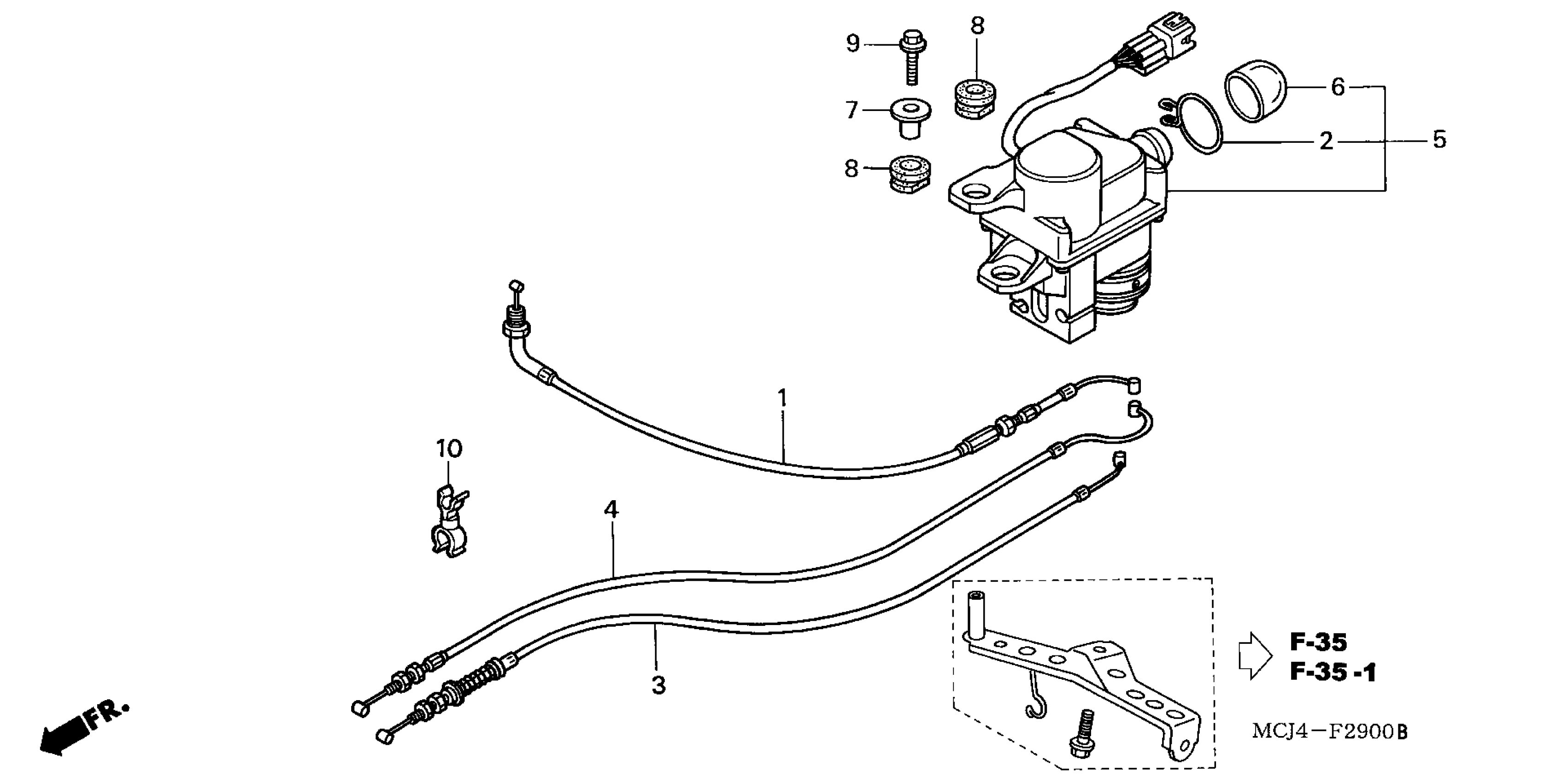

Honda CBR900RRAC (03) CBR954RR, JPN, VIN# JH2SC501-3M100001 SERVO MOTOR Diagram

#

Description
Price

1

CABLE, AIR VALVE

17970-MCJ-750

Unavailable

2

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

3

CABLE A, EX. VALVE

18910-MCJ-000

Unavailable

4

CABLE B, EX. VALVE

18920-MCJ-000

Unavailable

5

MOTOR ASSY., SERVO

31420-MCJ-506

Unavailable

5

MOTOR ASSY., SERVO This part replaces 31420-MCJ-750.

31420-MCJ-506

Unavailable

6

CAP

31425-KAE-004

$3.66

7

COLLAR (6.3X13)

50324-425-010

$5.05

8

GROMMET, SEAT SETTING

77205-KM4-000

$2.15

9

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

10

CLIP, DOUBLE

91404-750-800

Unavailable
