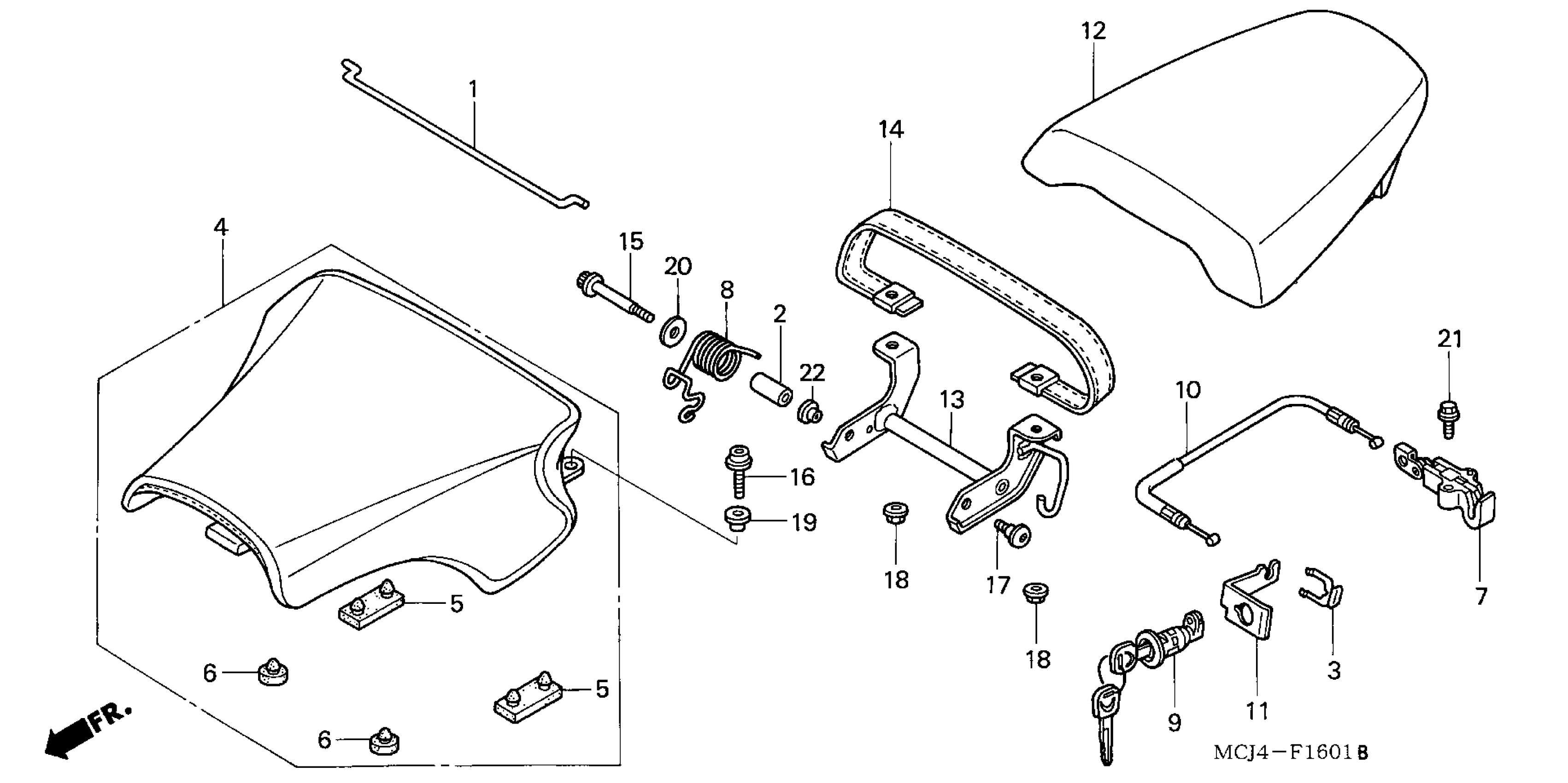

Honda CBR900RRAC (02) CBR954RR, JPN, VIN# JH2SC501-2M000001 SEAT (2) Diagram

#

Description
Price

1

ROD, TANK OPEN

17891-MCJ-750

$14.87

2

COLLAR, MUFFLER BAND

18318-HN5-670

Unavailable

3

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

4

SEAT ASSY., SINGLE

77100-MCJ-750

Unavailable

5

RUBBER, SEAT SETTING

77204-312-000

$5.05

6

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

7

HOOK, SEAT CATCH This part replaces 77220-MCJ-751.

77220-MCJ-752

$37.02

7

HOOK, SEAT CATCH

77220-MCJ-752

$37.02

8

SPRING, PILLION SEAT OPENER

77233-MCJ-750

$6.54

9

KEY, SEAT LOCK

77234-MBL-611

$32.53

10

CABLE, SEAT LOCK

77240-MCJ-750

Unavailable

11

STAY, SEAT LOCK CABLE

77242-MCJ-750

$4.85

12

SEAT, PILLION

77300-MCJ-750

Unavailable

13

HINGE, SEAT

77301-MCJ-750

Unavailable

14

SEAT BELT

77320-MCJ-750

Unavailable

15

BOLT, FLANGE SOCKET (6X45)

90093-MG3-000

$4.89

16

BOLT, FLANGE SOCKET (6X20)

90097-MY6-880

$4.39

17

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

18

NUT, U (6MM)

90301-473-003

$4.07

19

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

20

WASHER, PLAIN (6MM)

94103-06000

$1.49

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

22

COLLAR A, TAILLIGHT | Use from Frame SN 2M000009

33712-GC2-000

$3.04

22

COLLAR, GEARSHIFT LEVER SETTING | Use up to Frame SN 2M000008

90522-170-700

$1.84
