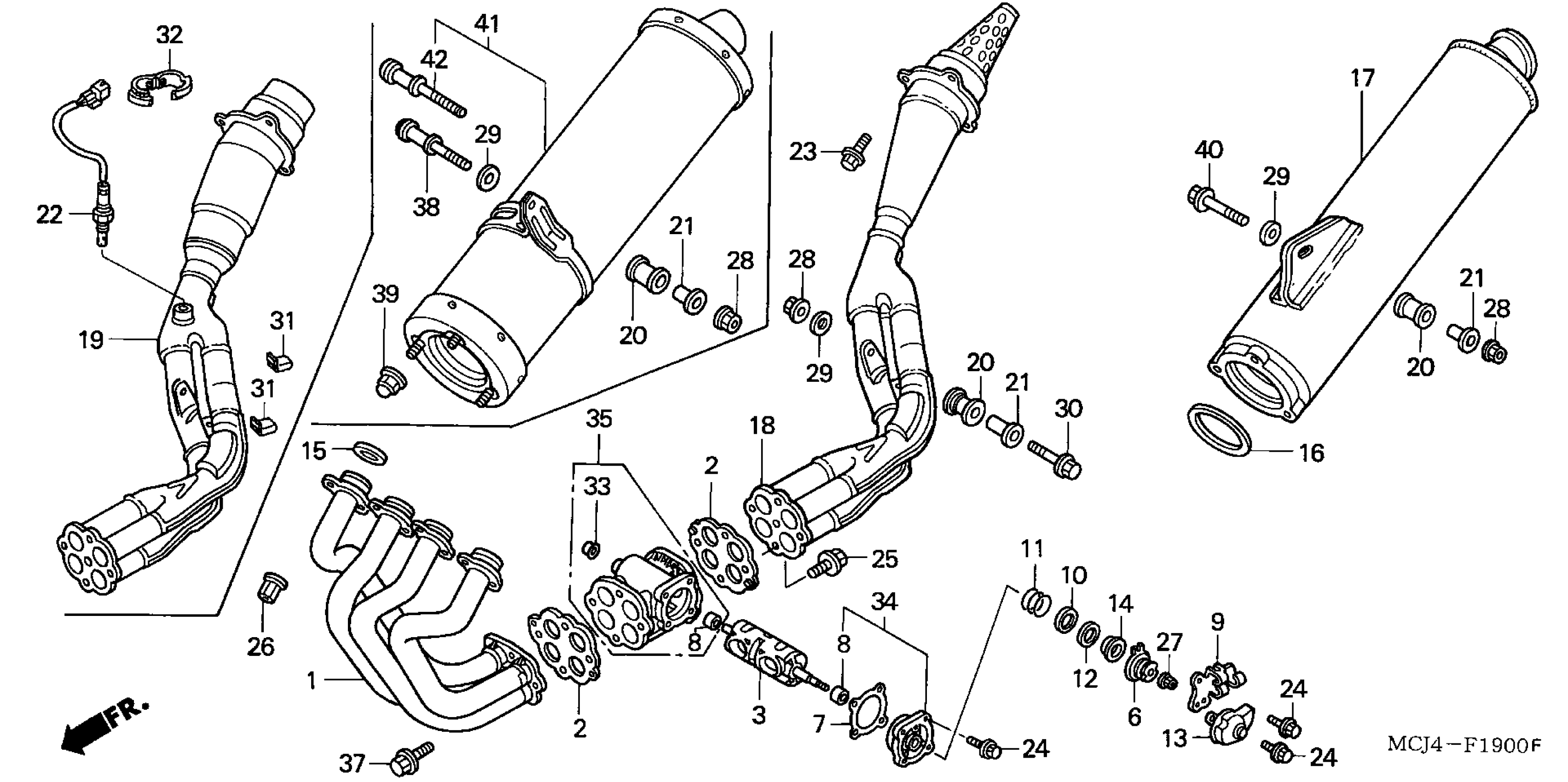

Honda CBR900RRAC (02) CBR954RR, JPN, VIN# JH2SC501-2M000001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MCJ-751

$492.98

2

GASKET, EX. VALVE

18151-MCJ-003

Unavailable

3

VALVE, EX.

18171-MCJ-010

Unavailable

6

PULLEY, VALVE

18174-MCJ-750

Unavailable

7

COVER, GASKET

18175-MCJ-003

Unavailable

8

BUSH

18176-MCJ-000

$6.74

9

STAY, EX. VALVE CABLE

18179-MCJ-750

Unavailable

10

WASHER A, THRUST

18181-MCJ-000

Unavailable

11

SPRING, THRUST

18182-MCJ-750

Unavailable

12

WASHER B, THRUST

18183-MCJ-000

$8.30

13

COVER, EX. VALVE

18184-MCJ-010

Unavailable

14

RETAINER, SPRING

18185-MCJ-000

Unavailable

15

GASKET, EX. PIPE

18291-MM5-860

$5.17

16

GASKET, MUFFLER

18292-MCJ-000

$10.21

19

JOINT, EX.

18380-MCJ-G01

Unavailable

20

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

21

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

22

SENSOR, FR. OXYGEN This part replaces 36532-MCV-771.

36532-MCV-772

Unavailable

22

SENSOR, FR. OXYGEN

36532-MCV-772

Unavailable

24

BOLT, FLANGE (6X12)

90101-MY1-000

$2.61

25

BOLT, FLANGE (6X16)

90111-MCJ-000

Unavailable

26

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

27

NUT, FLANGE (6MM)

94050-06020

$1.84

28

NUT, FLANGE (8MM)

94050-08000

$1.49

29

WASHER, PLAIN (8MM)

94103-08000

$1.49

30

BOLT, FLANGE (8X45)

96400-08045-00

$2.25

31

RUBBER, PROTECTOR

18293-MN0-000

$2.13

32

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

33

CAP, EX. VALVE

18177-MCJ-300

Unavailable

34

COVER, EX.

18180-MCJ-750

Unavailable

35

BODY, EX.

18190-MCJ-000

Unavailable

37

BOLT, FLANGE (6X12)

90101-MY1-000

$2.61

39

NUT, CAP (8MM)

90208-438-000

$2.98

41

MUFFLER SET

18310-MCJ-308

Unavailable

42

BOLT, HOOK (8X47)

90116-MAT-000

$6.80
