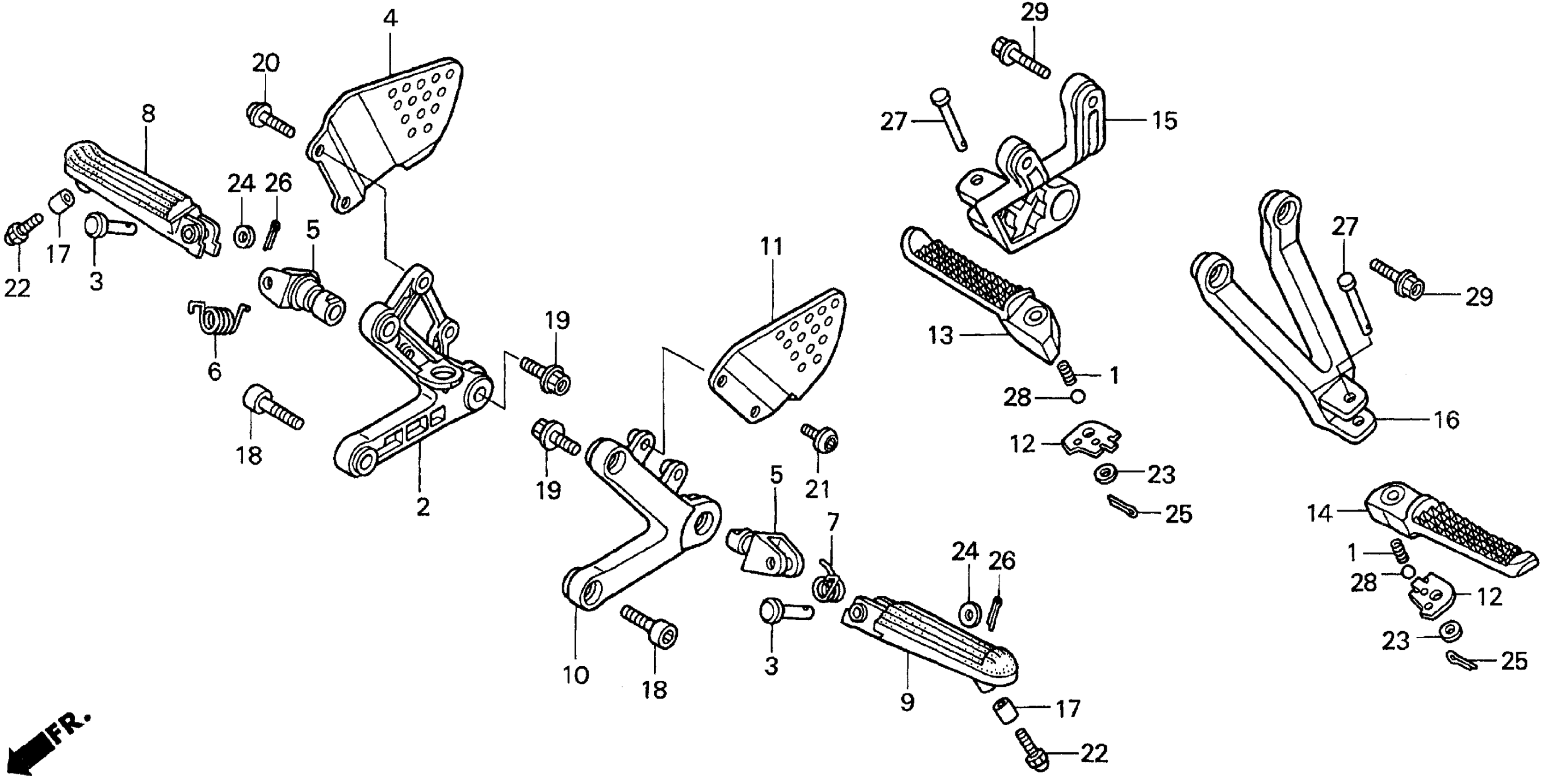

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MAS-E00

$54.97

3

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.07

4

GUARD, R. STEP

50607-MAS-E00

Unavailable

5

BRACKET, MAIN STEP

50612-MAS-000

Unavailable

6

SPRING, R. STEP RETURN

50617-445-840

$5.07

7

SPRING, L. STEP RETURN

50644-445-840

$5.07

8

ARM, R. STEP

50660-KV3-700

Unavailable

9

ARM, L. STEP

50670-KV3-700

Unavailable

10

HOLDER, L. MAIN STEP

50700-MAS-E00

Unavailable

11

GUARD, L. STEP

50707-MAS-E00

Unavailable

12

PLATE, PILLION STEP CLICK

50718-KT7-761

$3.73

13

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$40.37

13

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$40.37

13

BAR, R. PILLION STEP (COO)

50720-K26-305

$40.37

14

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$40.37

14

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$40.37

14

BAR, L. PILLION STEP (COO)

50730-K26-305

$40.37

15

HOLDER, R. PILLION STEP

50750-MW0-000

Unavailable

16

HOLDER, L. PILLION STEP

50760-MW0-000

Unavailable

17

COLLAR, STEP (LOWER)

51486-KV3-680

Unavailable

18

BOLT, SOCKET (8X25)

90102-MN8-700

$3.90

19

BOLT, FLANGE (10X20)

90102-MW0-000

Unavailable

20

BOLT, SPECIAL (6X25)

90115-MAS-E00

$3.39

21

BOLT, SPECIAL (6X16)

90116-MAS-E00

$2.80

22

BOLT, CAP (8X35)

92501-08035-0A

$2.70

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

WASHER, PLAIN (8MM)

94102-08000

$0.86

25

PIN, SPLIT (1.6X12)

94201-16120

$0.94

26

PIN, SPLIT (2.0X15)

94201-20150

$0.94

27

PIN C, PILLION STEP

95015-83000

$2.19

28

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

29

BOLT, FLANGE (8X28)

96400-08028-00

$1.68
