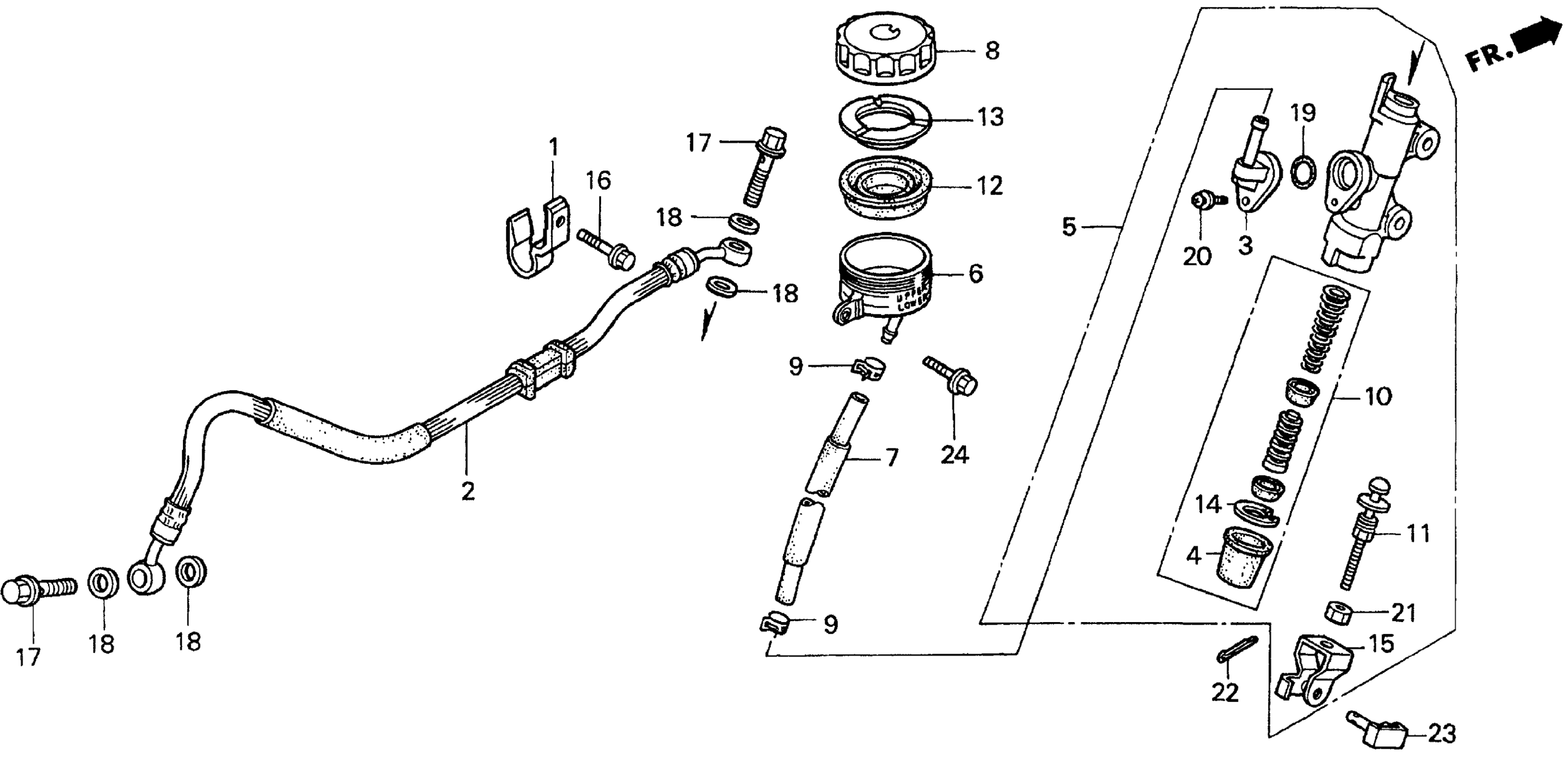

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 REAR BRAKE MASTER CYLINDER Diagram

CLAMP, RR. BRAKE HOSE (NOT AVAILABLE)

43154-MAS-000

Unavailable

HOSE, RR. BRAKE

43310-MAS-E11

Unavailable

CONNECTOR

43503-MR7-006

$14.04

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-MAS-E01

Unavailable

CUP, OIL

43511-MR7-016

$32.46

HOSE, MASTER CYLINDER

43512-MW0-006

$15.82

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$67.65

ROD, PUSH

43530-KV3-701

$19.84

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-500-013

$4.90

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, FLANGE (6X20)

90101-MAS-000

$3.21

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
