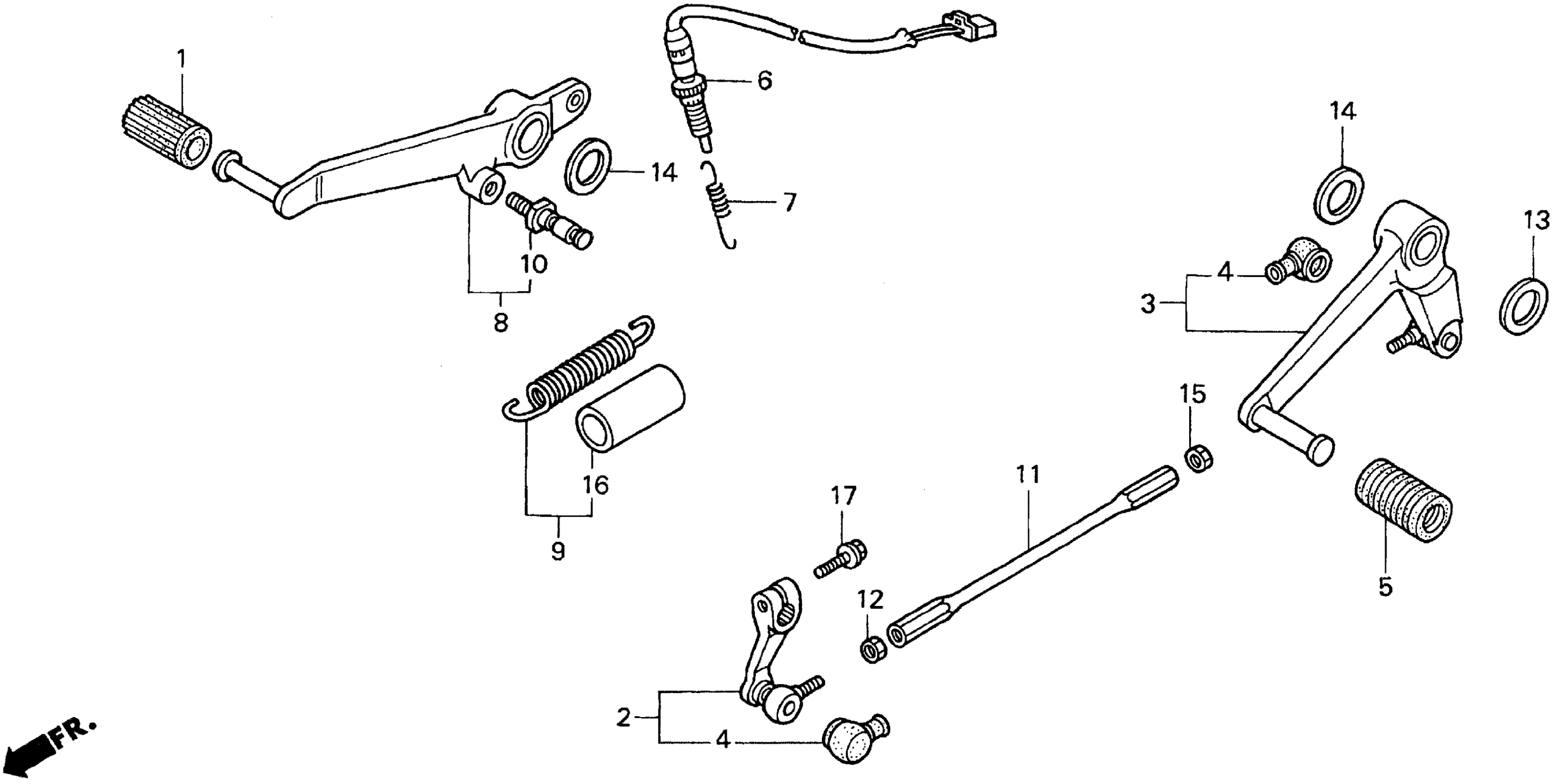

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 PEDAL Diagram

#

Description
Price

1

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

2

ARM, GEARSHIFT

24710-MAS-E00

Unavailable

3

PEDAL, GEARSHIFT This part replaces 24720-MAS-000.

24720-MCJ-000

Unavailable

3

PEDAL, GEARSHIFT

24720-MCJ-000

Unavailable

4

COVER, DUST

24724-422-000

$6.68

5

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

6

SWITCH ASSY., RR. STOP

35350-MR5-405

$19.28

6

SWITCH ASSY., RR. STOP This part replaces 35350-MW0-600.

35350-MR5-405

$19.28

7

SPRING, STOP SWITCH

35357-KY2-700

$5.90

8

PEDAL, BRAKE

46500-MAS-E00

Unavailable

9

SPRING ASSY., BRAKE PEDAL

46515-MV9-000

$5.16

10

HOOK, STOP SWITCH SPRING

46520-MAS-E00

Unavailable

11

BAR, GEARSHIFT

90065-MW4-000

Unavailable

12

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

13

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

14

WASHER, WAVE (17.5MM)

90505-MR7-000

$5.92

15

NUT, HEX. (6MM)

94001-06020-0S

$1.49

16

BULK HOSE, VINYL (13X15X8000) (13X15X20)

95003-43008-10M

$60.69

17

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
