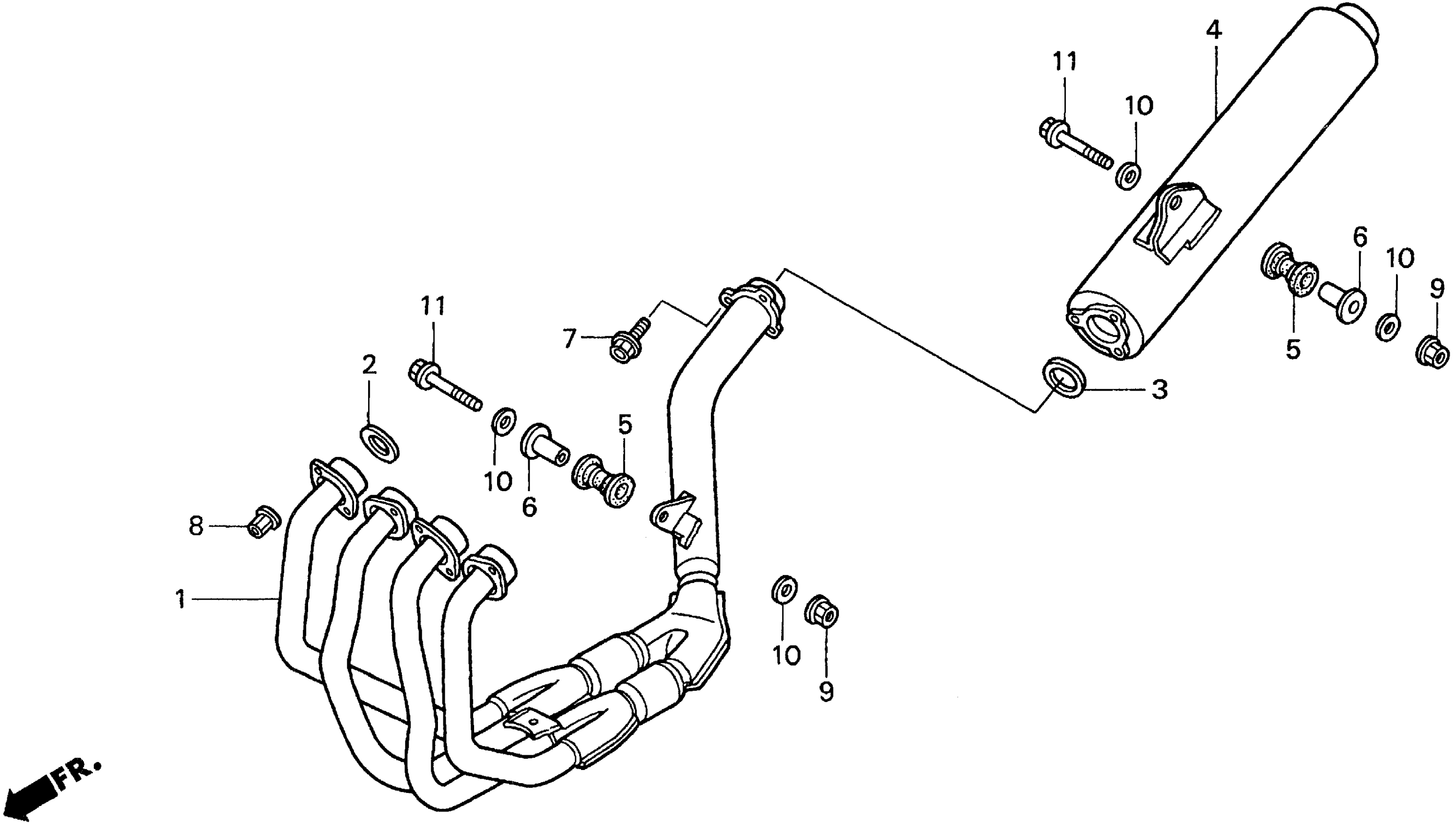

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 MUFFLER Diagram

#

Description

Price

1

PIPE, EX.

18150-MAS-E01

Unavailable

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, MUFFLER

18292-MV4-000

$8.68

4

MUFFLER

18310-MAS-A00

Unavailable

5

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

6

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.91

7

BOLT, FLANGE (8X20) This part replaces 90101-MW0-000.

96300-08020-00

$1.57

7

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

8

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

9

NUT, FLANGE (8MM)

94050-08000

$1.49

10

WASHER, PLAIN (8MM)

94103-08000

$1.49

11

BOLT, FLANGE (8X50)

95801-08050-00

$2.98

11

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.98
