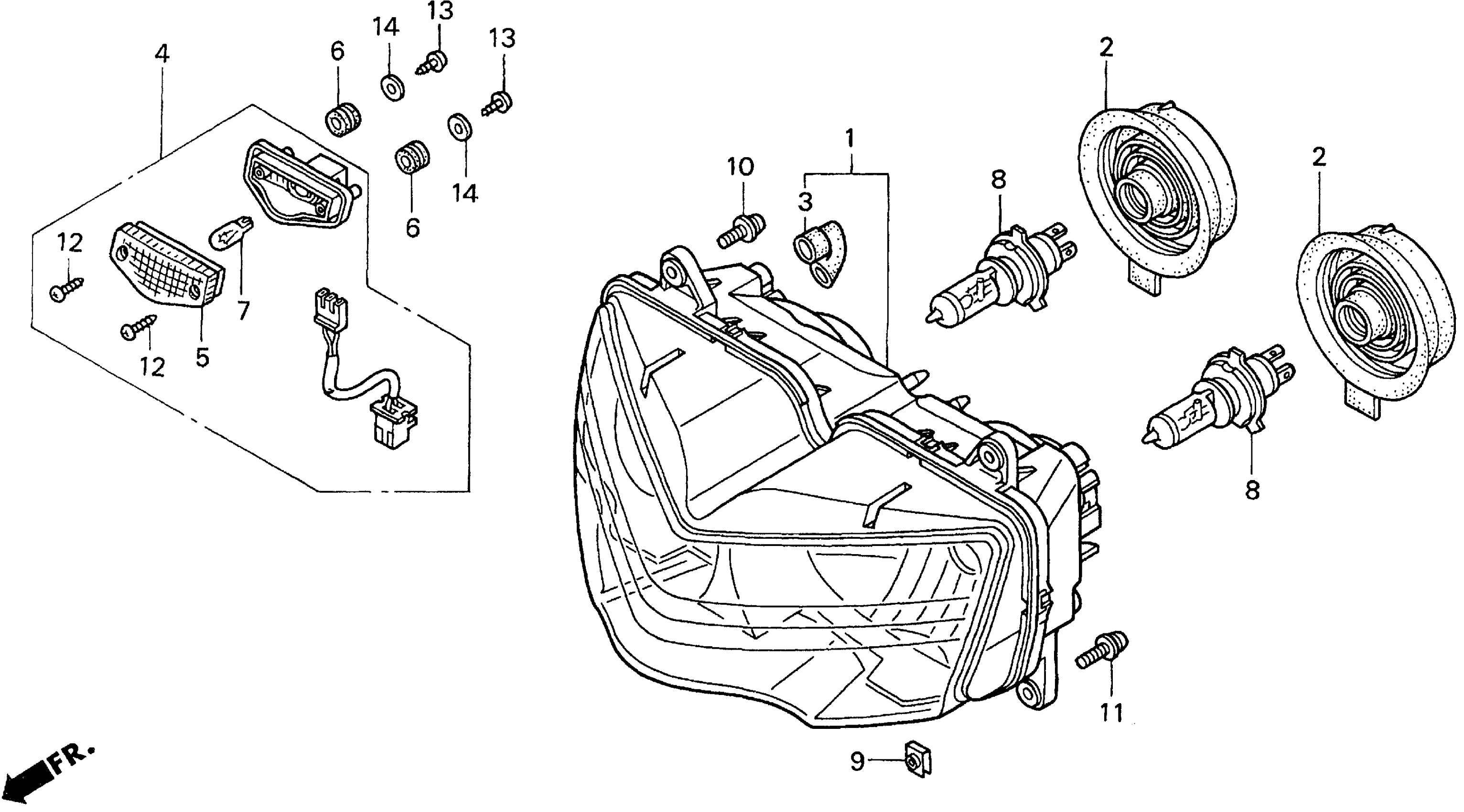

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 HEADLIGHT Diagram

HEADLIGHT UNIT This part replaces 33102-MAS-U01.

33102-MAS-U02

Unavailable

HEADLIGHT UNIT

33102-MAS-U02

Unavailable

COVER, RUBBER

33112-MM5-601

$15.97

PIPE, CP

33113-MAT-611

$2.59

LIGHT ASSY., POSITION

33180-MAS-G01

Unavailable

LENS, POSITION LIGHT

33181-GBL-711

Unavailable

RUBBER, POSITION LIGHT

33181-MBB-000

$4.42

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-MS2-671.

34901-MS2-672

$33.64

BULB, HEADLIGHT (12V 45/45W) (STANLEY)

34901-MS2-672

$33.64

NUT, SPEEDOMETER BODY SETTING

61306-167-000

$4.69

SCREW-WASHER (5X18)

93894-05018-07

Unavailable

SCREW-WASHER (5X25)

93894-05025-07

$1.28

SCREW, TAPPING (4X12)

93901-24310

$0.83

SCREW, TAPPING (4X8)

93903-24110

$0.83

WASHER, PLAIN (4MM)

94103-04800

$0.90
