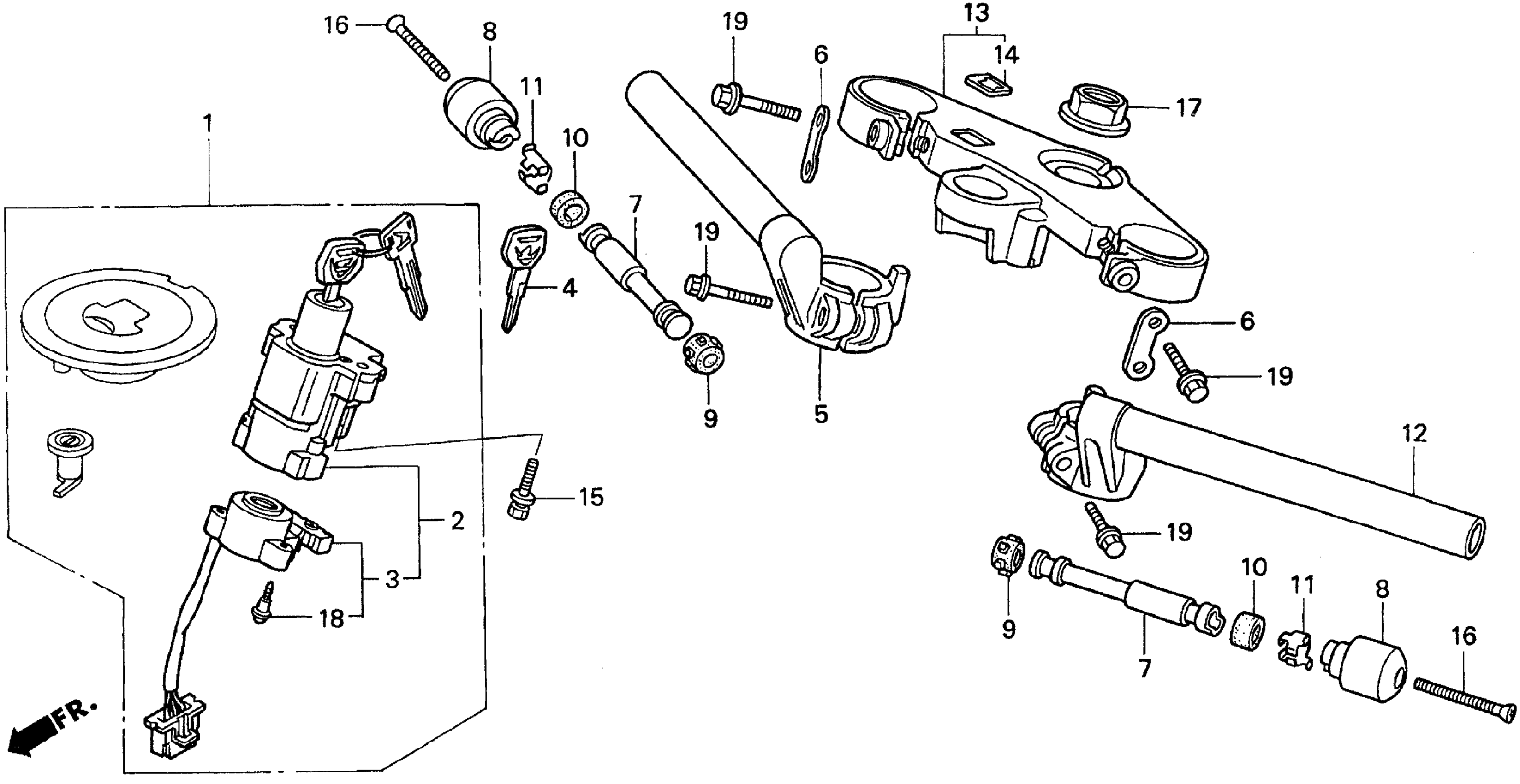

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 HANDLEBAR + TOP BRIDGE Diagram

LOCK SET This part replaces 35010-MAS-A00.

35010-MAS-A02

Unavailable

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MAS-A01.

35100-MAS-A02

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MAS-A02

Unavailable

BASE, CONTACT

35101-MAS-A01

Unavailable

KEY, BLANK | (Optional).

35121-MAS-G01

$12.74

HANDLEBAR, R.

53100-MAS-E00

Unavailable

PLATE, HANDLE SETTING

53103-MW0-000

Unavailable

WEIGHT B, HANDLEBAR

53104-MV4-000

$25.83

WEIGHT, HANDLEBAR This part replaces 53105-MN4-000.

53105-MN4-010

$21.73

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

RUBBER A, HANDLE WEIGHT

53106-MV9-000

$3.36

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

HANDLEBAR, L.

53150-MAS-E00

Unavailable

BRIDGE, FORK TOP

53300-MAS-E00

Unavailable

EMBLEM, WING MARK

86150-MN8-300

$16.90

BOLT, SOCKET (8MM)

90100-MN8-910

$5.05

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

NUT, STEERING STEM

90304-MJ4-670

$15.40

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

BOLT, FLANGE (8X40)

96300-08040-07

$2.02
