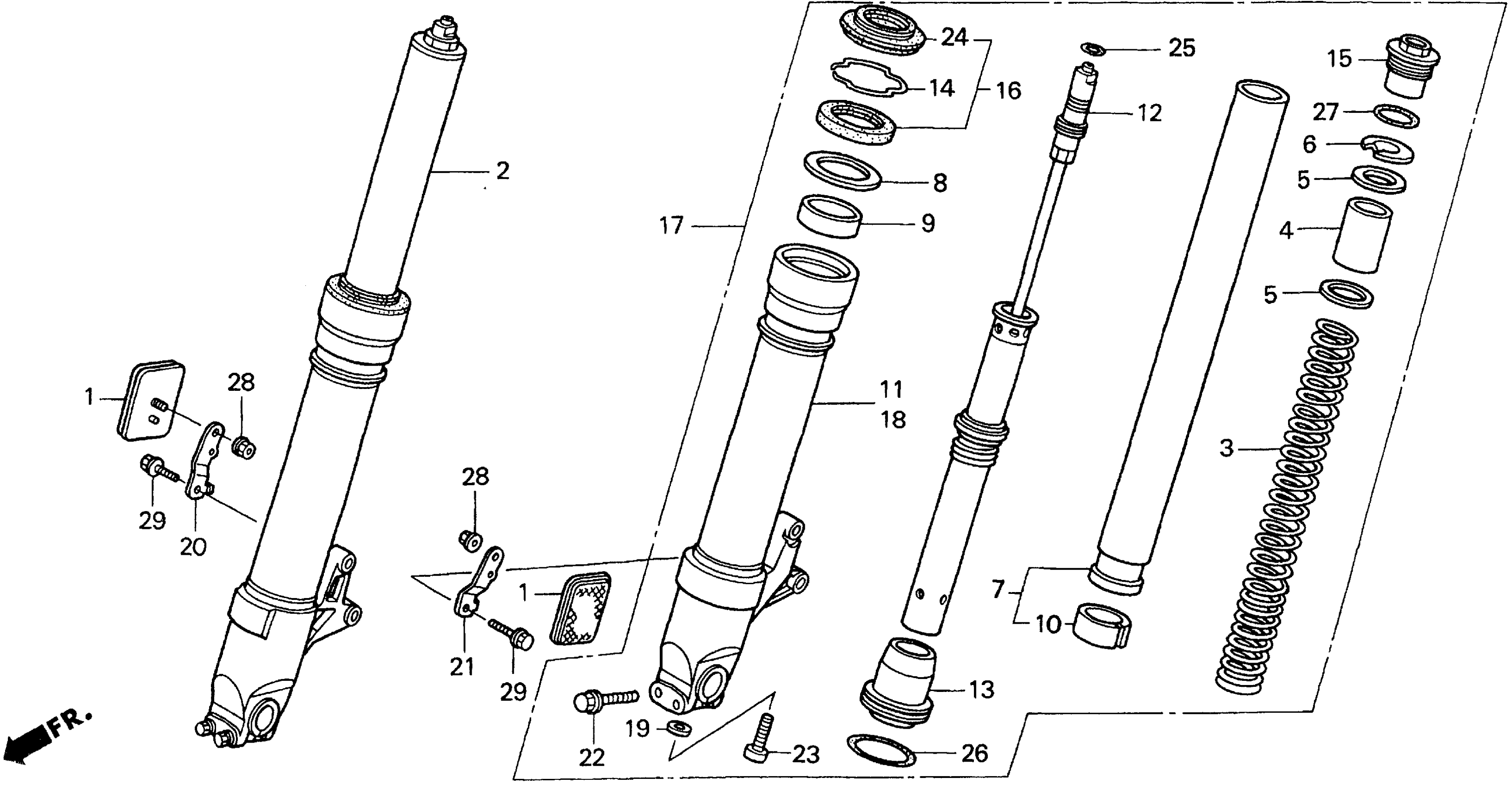

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-MB2-671

$14.86

2

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MAS-A01

Unavailable

3

SPRING, FR. FORK

51401-MAS-E01

Unavailable

4

COLLAR, SPRING

51403-MAE-003

$10.97

5

PLATE, SPRING JOINT (SHOWA)

51403-MW0-003

Unavailable

6

SEAT, SPRING

51404-MR7-003

$11.28

7

PIPE, FR. FORK

51410-MAS-E01

Unavailable

8

RING, BACK-UP

51412-KZ3-003

$9.43

9

BUSH, GUIDE

51414-KAE-771

$18.48

10

BUSH, SLIDER

51415-KAE-771

$20.13

11

CASE, R. (LOWER)

51420-MAS-A01

Unavailable

12

DAMPER, FR.

51430-MAS-E01

Unavailable

13

PIECE, OIL LOCK

51432-MAS-E01

Unavailable

14

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

15

BOLT, FR. FORK (SHOWA)

51454-MW0-003

Unavailable

16

SEAL SET, FR. FORK

51490-MW0-003

$38.57

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MAS-A01

Unavailable

18

CASE, L. (LOWER)

51520-MAS-A01

Unavailable

19

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

20

STAY, R. FR. REFLECTOR

61104-MW0-670

Unavailable

21

STAY, L. FR. REFLECTOR

61105-MW0-670

Unavailable

22

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

23

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

24

DUST SEAL

91254-KZ3-003

$16.91

25

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

25

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

26

O-RING (43.5X2.0)

91351-MAE-003

$2.97

27

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92

28

NUT, FLANGE (5MM)

94050-05070

$1.49

29

BOLT, FLANGE (6X14)

96300-06014-07

Unavailable
