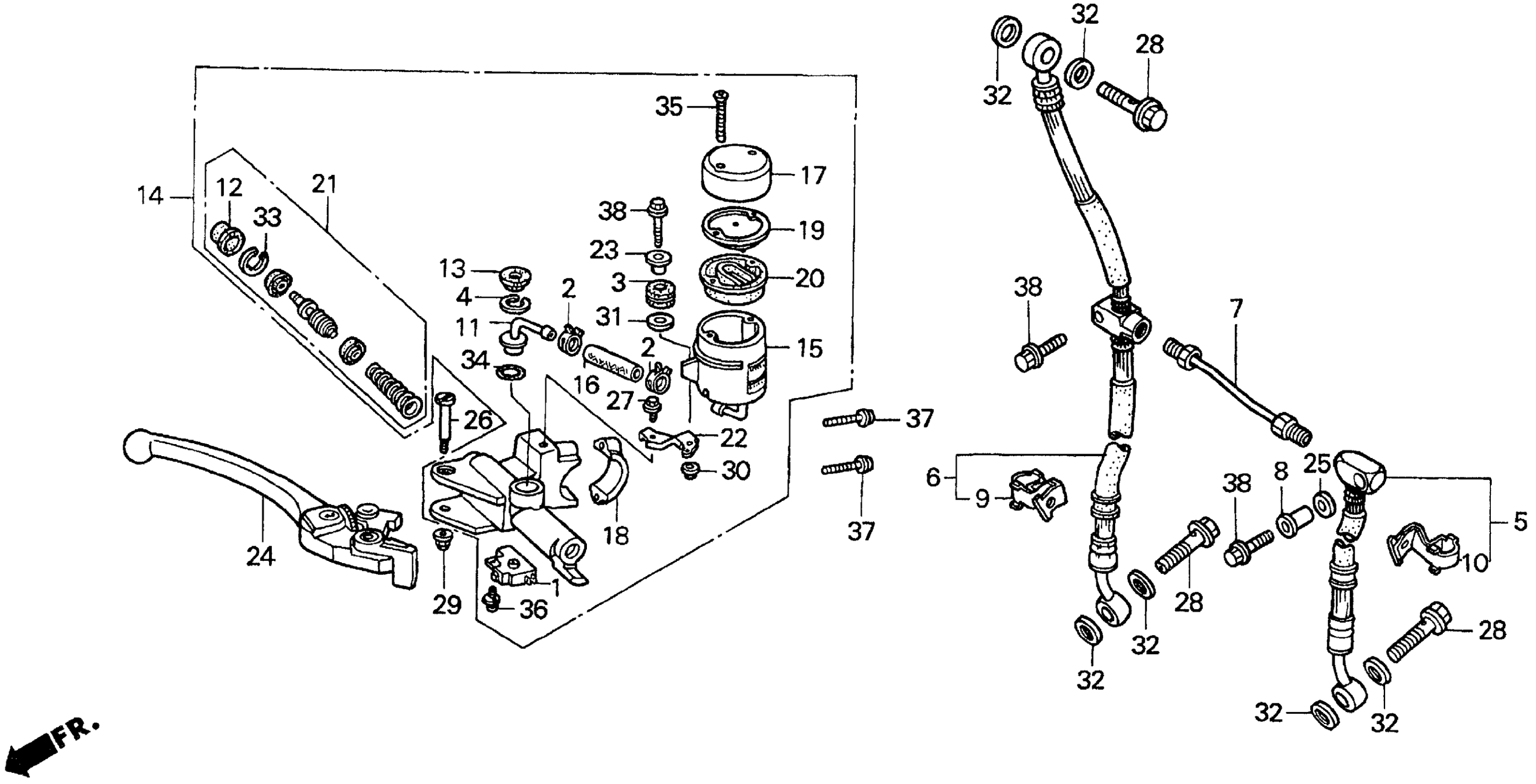

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

HOSE, L. FR. BRAKE

45124-MAS-E11

Unavailable

HOSE, R. FR. BRAKE

45125-MAS-E11

Unavailable

PIPE, FR. BRAKE

45127-MAE-000

Unavailable

COLLAR, FR. BRAKE HOSE

45129-MAE-000

$7.99

CLAMP, R. FR. BRAKE HOSE

45157-MAS-000

Unavailable

CLAMP, L. FR. BRAKE HOSE

45158-MAS-000

Unavailable

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$9.39

BOOT

45504-410-003

$12.16

COVER, DUST

45505-KV3-006

$4.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAS-E01

Unavailable

CUP, OIL

45511-KV3-016

$36.85

HOSE, MASTER CYLINDER OIL

45512-MAS-006

$6.85

CAP, OIL CUP

45513-KV3-006

$35.09

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM

45518-KV3-006

$12.39

DIAPHRAGM

45520-KV3-006

$13.99

MASTER CYLINDER SET (NISSIN)

45530-MR7-305

Unavailable

STAY, FR. MASTER CYLINDER

45550-MAS-006

Unavailable

COLLAR (6.3X13)

50324-425-010

$5.05

LEVER ASSY., R. HANDLE

53170-MBW-006

$43.60

LEVER ASSY., R. HANDLE This part replaces 53170-MY9-861.

53170-MBW-006

$43.60

RUBBER, SEAT HINGE

77218-GB2-720

$2.67

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, FLANGE (6X12)

90117-MR7-000

$2.98

BOLT, OIL (10X22)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, U (6MM)

90301-MG3-000

$6.91

WASHER (6X16)

90473-147-000

$1.49

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X50)

93600-04050-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BOLT, FLANGE (6X28)

96300-06028-07

$1.80
