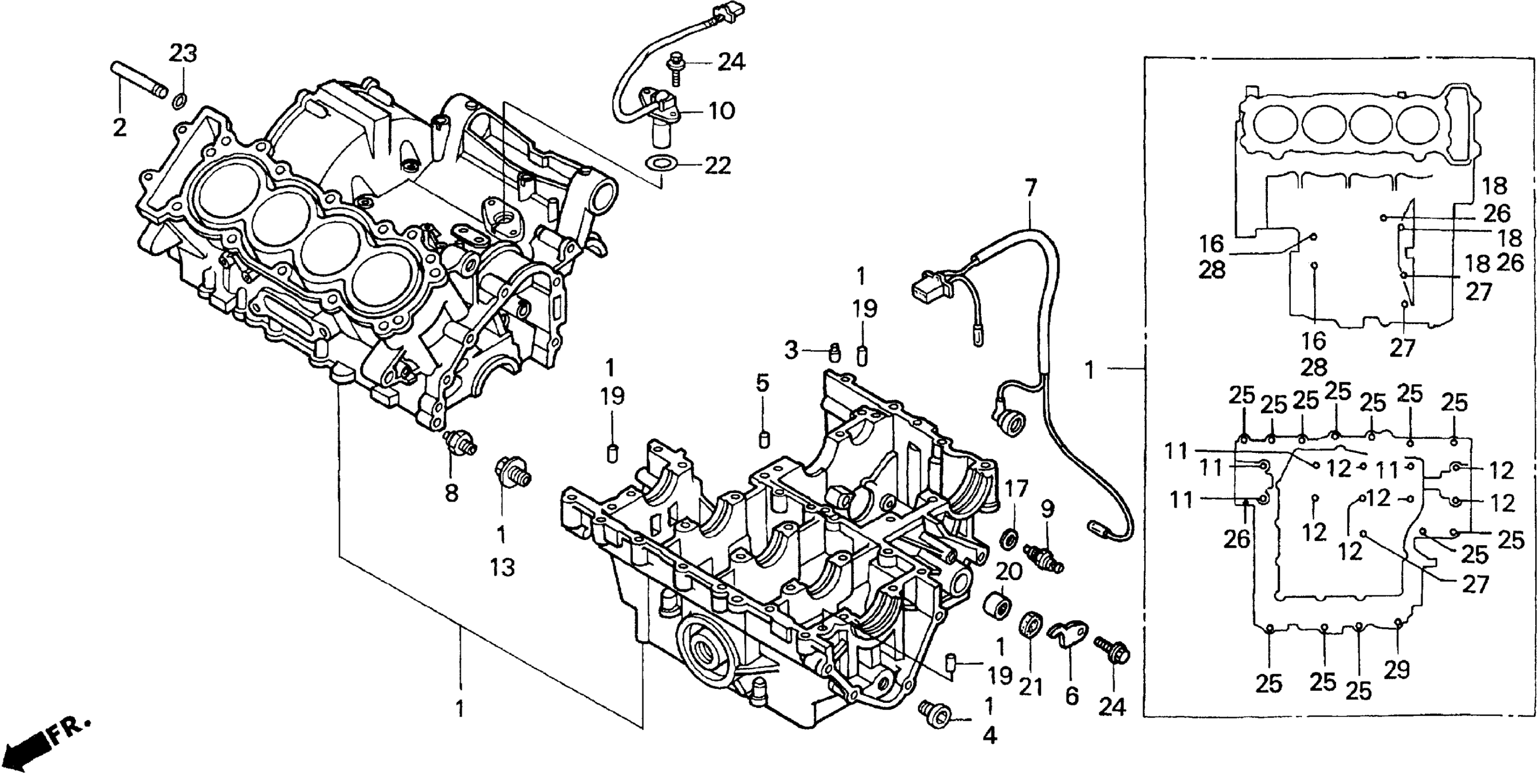

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MAS-E00

Unavailable

2

PLUG, SEALING

11103-MAT-000

Unavailable

3

ORIFICE (1.2MM)

11104-MW0-000

Unavailable

4

BOLT, SEALING (18MM)

12206-ML8-300

$8.70

5

ORIFICE (1.2MM)

15515-KT8-000

$7.03

6

PLATE, SPINDLE

24612-MAL-600

$8.88

7

SUB-WIRE A (NOT AVAILABLE)

32101-MAS-000

Unavailable

8

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

9

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$16.98

10

SENSOR ASSY., SPEED

37700-MAS-E01

Unavailable

11

BOLT, FLANGE (9X90)

90014-MAS-E00

$9.26

12

BOLT, FLANGE (9X110)

90015-MAT-000

$5.45

13

BOLT, SEALING (20MM)

90048-MAL-600

$10.81

16

WASHER, SEALING (8MM)

90442-028-000

$1.61

17

WASHER, NEUTRAL

90443-MJ6-000

$1.75

18

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

19

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

20

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$17.42

21

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.55

22

O-RING (18.1X3.6)

91302-MAL-601

$3.28

23

O-RING (5.2X1.9)

91315-PN1-000

$2.12

24

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

25

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

26

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

27

BOLT, FLANGE (6X65)

95701-06065-00

$1.38

28

BOLT, FLANGE (8X65)

95701-08065-00

$1.57

29

BOLT, FLANGE (10X65)

95701-10065-00

$2.99
