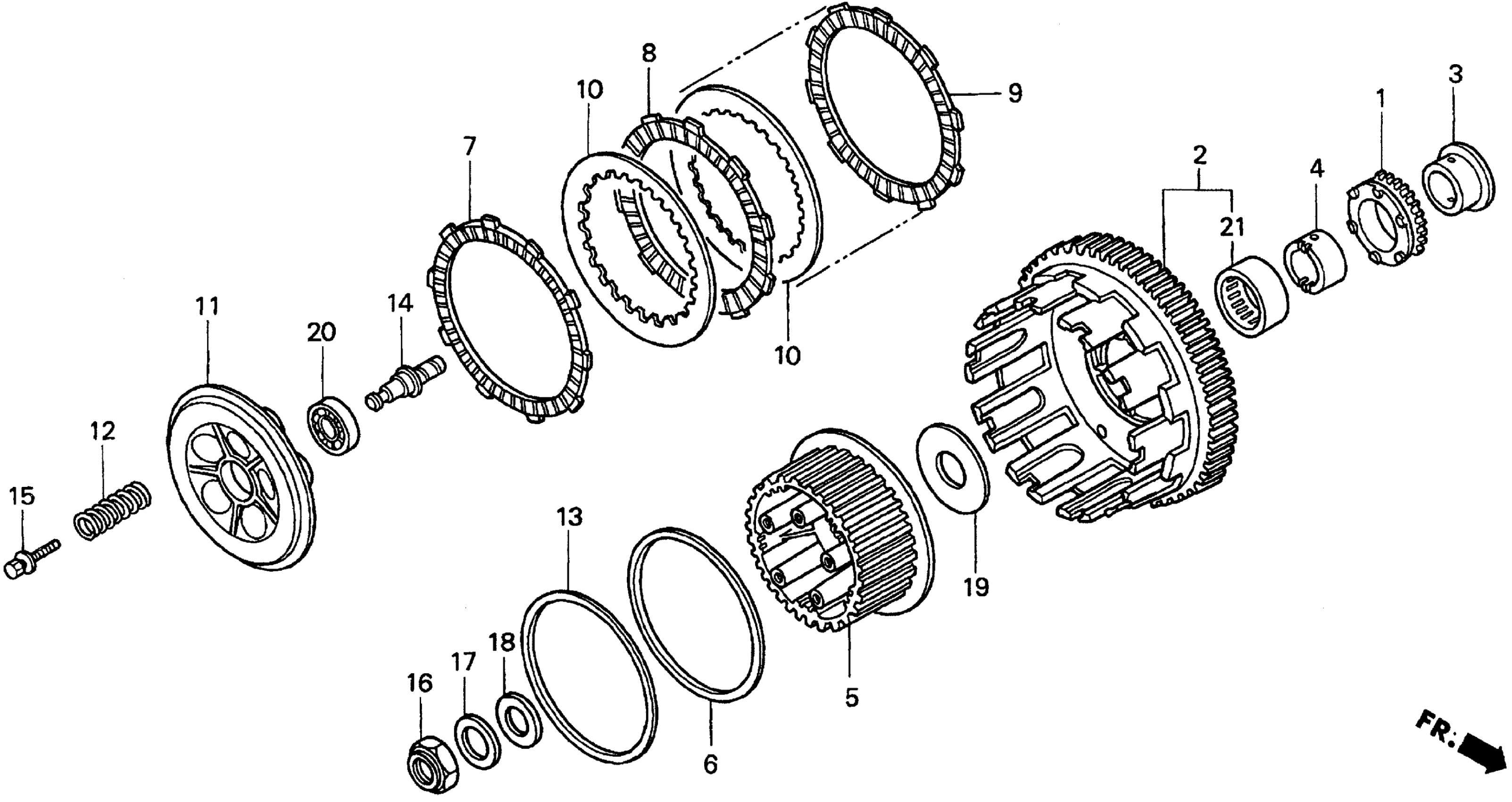

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

Unavailable

2

CLUTCH OUTER This part replaces 22100-MAS-E00.

22100-MCZ-000

Unavailable

2

CLUTCH OUTER

22100-MCZ-000

Unavailable

3

COLLAR, OIL PUMP SPROCKET

22116-MV9-660

$23.67

4

COLLAR, DISTANCE

22117-MW0-000

Unavailable

5

CENTER, CLUTCH

22120-MAS-E00

Unavailable

6

SEAT, JUDDER SPRING

22125-ML7-000

$9.59

7

DISK, CLUTCH FRICTION

22201-MAE-000

$15.91

8

DISK, CLUTCH FRICTION

22201-MAS-E00

$11.69

9

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.37

10

PLATE, CLUTCH

22321-MAS-000

$13.98

11

PLATE, CLUTCH PRESSURE

22350-MAS-E00

$73.41

12

SPRING, CLUTCH

22401-MAS-E00

$4.49

13

SPRING, JUDDER

22402-MAS-E00

$18.88

14

PIN, CLUTCH LIFTER

22847-MAE-000

$58.63

15

BOLT-WASHER (6X28)

90024-MAS-000

$3.48

16

NUT, LOCK (22MM)

90231-MM5-000

$9.38

17

WASHER, SPRING (22MM)

90432-MM5-000

$7.66

18

WASHER, THRUST (22X39X2)

90451-KG4-000

$4.28

19

WASHER (60X25X2)

90459-MM4-000

$9.63

20

BEARING, RADIAL BALL (16003)

91009-MAS-003

$20.39

21

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$81.87
