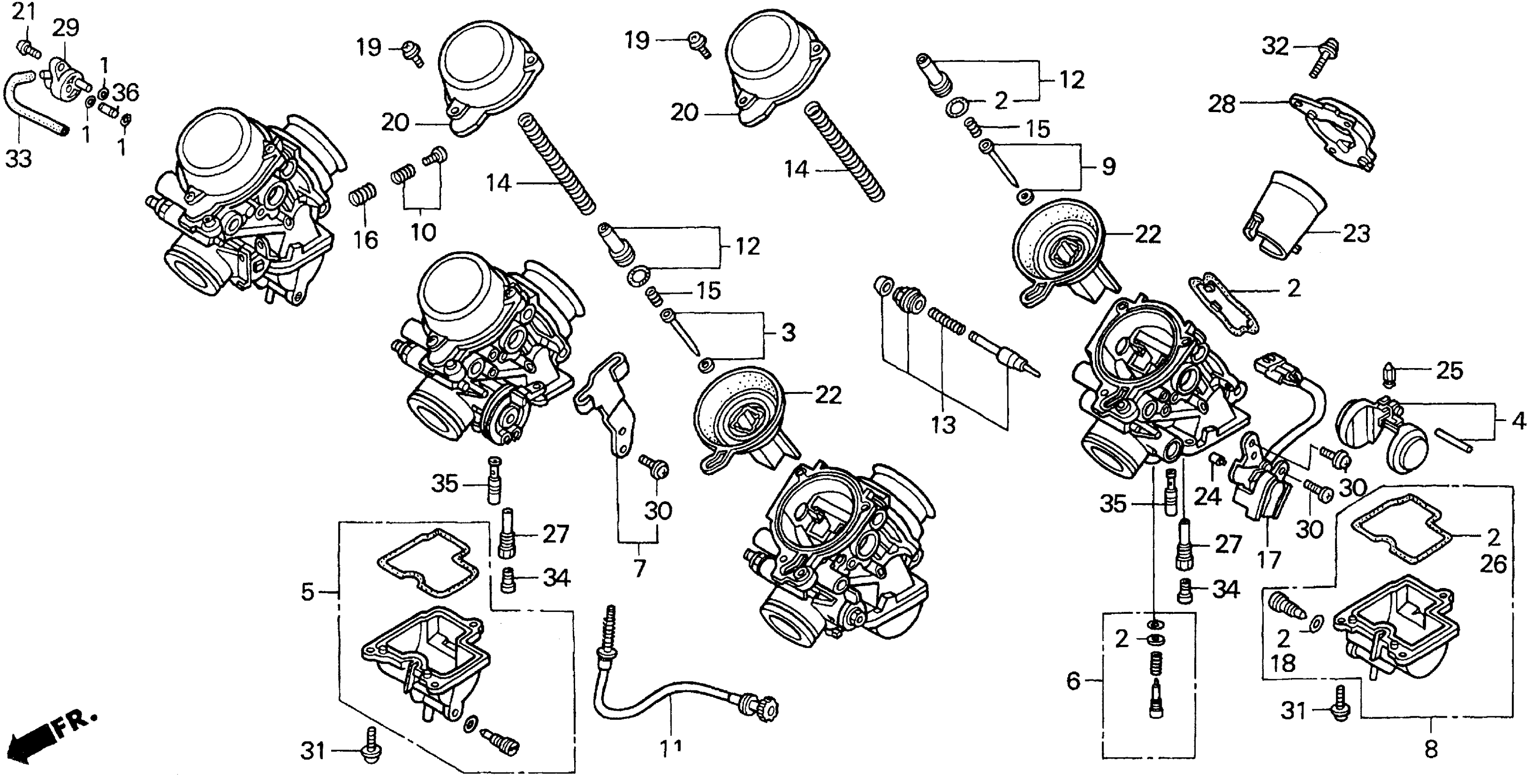

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 CARBURETOR COMPONENTS Diagram

#

Description
Price

2

GASKET SET A

16010-MZ2-E00

$40.93

3

NEEDLE SET, JET

16012-MAS-A00

Unavailable

4

FLOAT SET

16013-MAT-600

Unavailable

5

CHAMBER SET, FLOAT (#2) This part replaces 16015-MAS-600.

16023-MZ2-E00

Unavailable

5

CHAMBER SET, FLOAT (#2)

16023-MZ2-E00

Unavailable

6

SCREW SET This part replaces 16016-MAS-640.

16028-MY5-890

Unavailable

6

SCREW SET

16028-MY5-890

Unavailable

7

STAY SET, WIRE

16018-MZ1-790

Unavailable

8

CHAMBER SET, FLOAT (#3) This part replaces 16023-MAS-600.

16043-MZ2-E00

$93.07

8

CHAMBER SET, FLOAT (#3)

16043-MZ2-E00

$93.07

9

NEEDLE SET, JET (NOT AVAILABLE)

16027-MAS-A00

Unavailable

10

SCREW SET

16028-MZ2-E00

Unavailable

11

SCREW SET

16029-MAS-600

Unavailable

12

PLATE SET, VALVE

16037-MAS-E00

Unavailable

13

VALVE SET, STARTER

16046-MZ2-E00

Unavailable

14

SPRING, VACUUM PISTON

16050-MAS-E00

Unavailable

15

SPRING, COMPRESSION COIL

16051-MV4-000

$19.91

16

SPRING, COMPRESSION COIL

16052-KG4-003

$5.81

17

SENSOR ASSY., THROTTLE

16060-MAL-600

Unavailable

18

O-RING (1.3X4.3)

16075-GHB-640

$2.92

19

SCREW-WASHER

16080-MV4-000

$2.54

20

TOP

16107-MW0-670

Unavailable

22

PISTON, VACUUM

16111-MAS-E00

Unavailable

23

FUNNEL, AIR

16141-MAS-E00

Unavailable

24

JOINT, CONNECTOR

16145-MZ2-780

$21.85

25

VALVE, FLOAT

16155-MN9-004

$30.35

26

GASKET, FLOAT CHAMBER

16163-MZ5-920

$33.18

27

HOLDER, NEEDLE JET

16165-MAS-B80

Unavailable

27

HOLDER, NEEDLE JET This part replaces 16165-MAS-E00.

16165-MAS-B80

Unavailable

28

PLATE, FUNNEL SETTING

16188-MW0-671

Unavailable

30

SCREW-WASHER (5X10)

93892-05010-00

$1.49

30

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$1.49

31

SCREW-WASHER (5X16)

93892-05016-00

$1.49

31

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$1.49

32

SCREW-WASHER (4X14)

93893-04014-07

$1.49

32

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

34

JET, MAIN (#120) This part replaces 99101-GHB-1200.

99101-MBZ-1200

$9.11

34

JET, MAIN (#120)

99101-MBZ-1200

$9.11

35

JET, SLOW (#40)

99103-MT2-0400

$12.25
