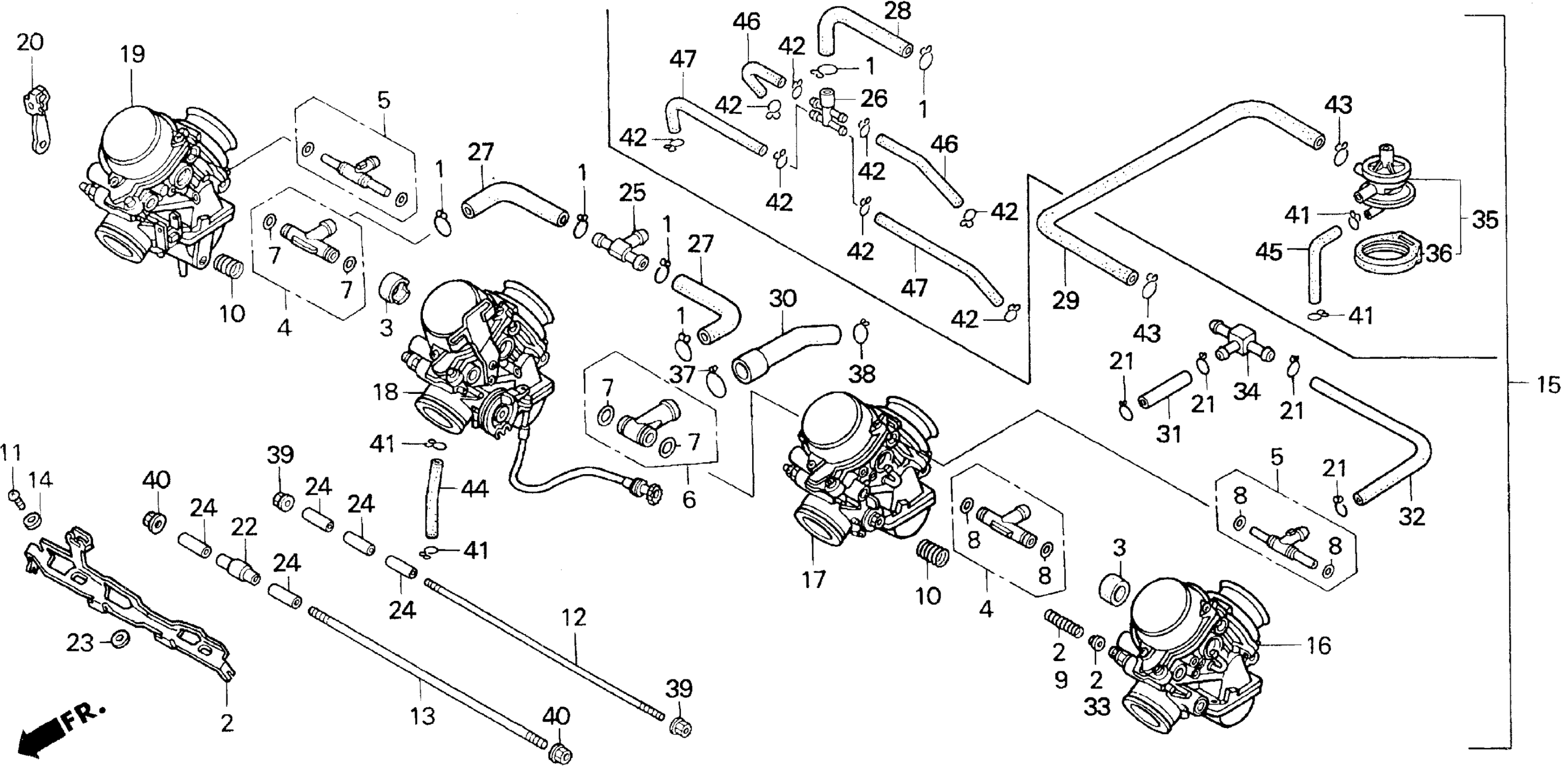

Honda CBR900RRA (99) MOTORCYCLE, JPN, VIN# JH2SC330-XM300001 CARBURETOR ASSY. Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

LEVER SET, STARTER

16017-MAS-600

Unavailable

3

JOINT

16024-KAZ-000

$29.30

4

JOINT SET

16024-MZ2-E00

$31.15

5

JOINT SET

16026-MZ2-E00

$38.48

6

JOINT SET, FUEL

16038-MAS-600

$37.61

7

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$12.84

7

GASKET SET B

16040-MZ1-790

$12.84

8

GASKET SET B

16040-MZ1-790

$12.84

9

SPRING, COMPRESSION COIL

16050-KM4-004

Unavailable

10

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

11

SCREW, TRUSS (4X8)

16081-KAZ-000

$3.10

12

BOLT

16083-MAT-000

Unavailable

13

BOLT

16084-MAL-E00

Unavailable

14

WASHER, PLAIN

16085-MV4-000

$2.92

15

CARBURETOR ASSY. (VP8CB A)

16100-MAS-A00

Unavailable

16

CARBURETOR ASSY. 1

16101-MAS-A00

Unavailable

17

CARBURETOR ASSY. 2

16102-MAS-A00

Unavailable

18

CARBURETOR ASSY. 3

16103-MAS-A00

Unavailable

19

CARBURETOR ASSY. 4

16104-MAS-A00

Unavailable

20

PLATE, STAY

16119-MAS-E00

Unavailable

21

CLIP, TUBE

16163-GHB-610

$1.73

22

COLLAR

16172-MBZ-610

Unavailable

22

COLLAR This part replaces 16172-MV9-670.

16172-MBZ-610

Unavailable

23

COLLAR SET

16173-KAZ-000

$5.95

24

PIN, DOWEL (7.9X20)

16178-MAS-600

$8.39

25

T-JOINT

16180-MM5-601

$21.95

27

TUBE

16195-MV9-670

$14.62

29

TUBE

16198-MW0-600

Unavailable

30

TUBE

16198-MW0-670

Unavailable

31

TUBE

16199-MW0-600

Unavailable

32

TUBE This part replaces 16199-MW0-750.

16199-MW0-505

Unavailable

33

COLLAR

16202-657-300

Unavailable

34

T-JOINT

17193-MT2-000

$13.16

37

CLIP B, TUBE

17366-MJ0-000

$2.25

38

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

39

NUT, FLANGE (5MM)

94050-05000

$1.49

43

CLIP, TUBE (B12.5)

95002-02139

$1.49
