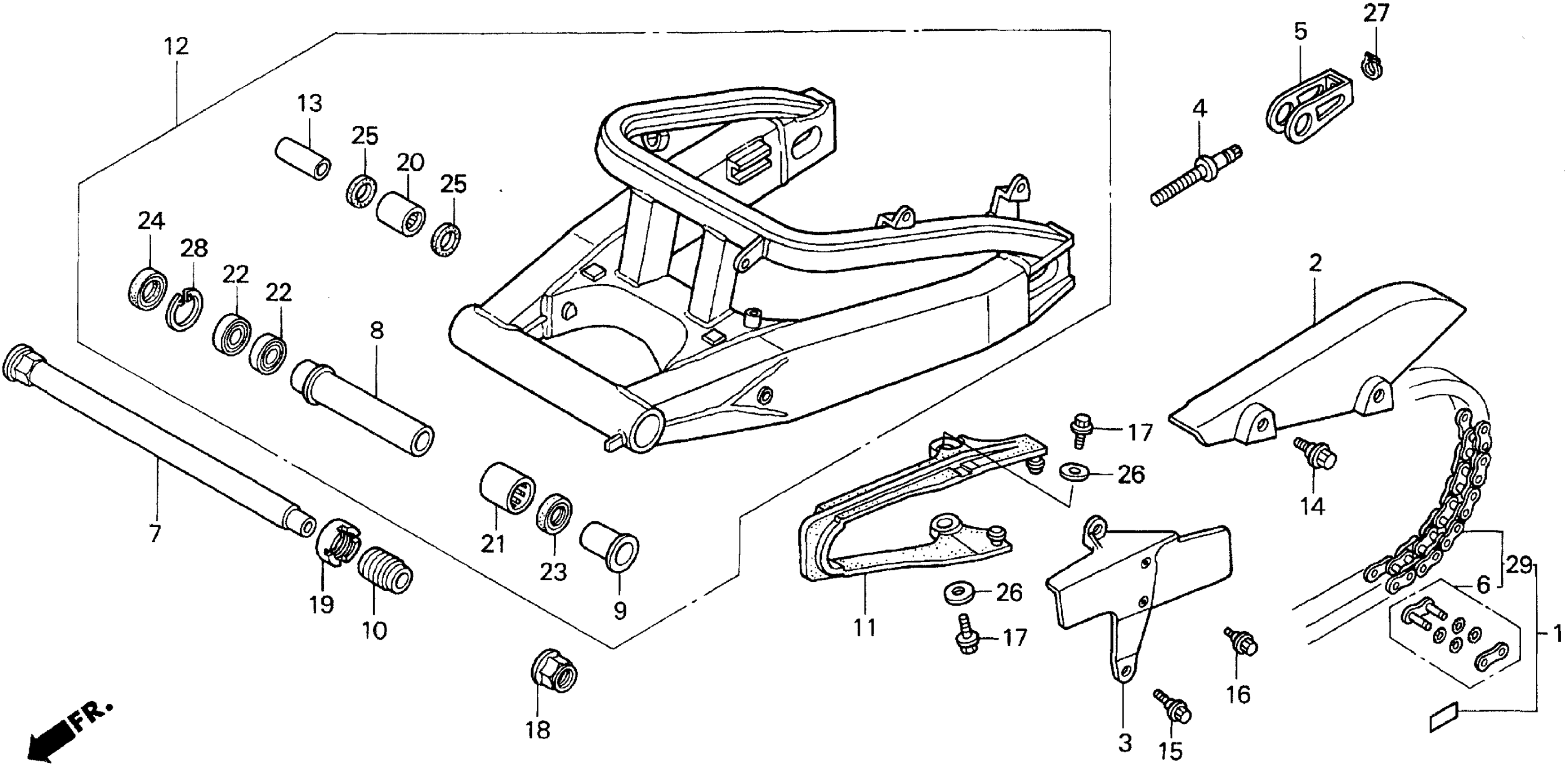

Honda CBR900RRA (98) MOTORCYCLE, JPN, VIN# JH2SC330-WM200001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID525 112-120L) (DAIDO) (NA USE ALT:40540-MAS-003)

06405-MAS-P00

Unavailable

1

CHAIN SET, DRIVE (RK525 112-120L) (RK EXCEL) (NOT AVAILABLE)

06405-MAS-P10

Unavailable

2

CASE, DRIVE CHAIN (A)

40510-KY2-700

Unavailable

3

CASE B, DRIVE CHAIN

40520-MW0-000

Unavailable

4

BOLT, CHAIN ADJUSTING

40542-KV3-700

$8.08

5

ADJUSTER, CHAIN This part replaces 40543-MAS-000.

40543-MAS-010

$17.31

6

MASTER LINK (DAIDO)

40545-MAS-003

$7.46

6

MASTER LINK (RK EXCEL)

40545-MAS-005

Unavailable

7

BOLT, SWINGARM PIVOT

52101-MW0-000

Unavailable

8

COLLAR, SWINGARM PIVOT

52102-MAS-E00

Unavailable

9

COLLAR B, PIVOT

52106-MR7-000

$34.38

10

BOLT, PIVOT ADJUSTING

52109-MR8-000

Unavailable

11

SLIDER, CHAIN

52170-MAS-E00

Unavailable

12

SWINGARM SUB-ASSY., RR.

52200-MAS-E00

Unavailable

13

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

14

BOLT, FLANGE (6MM)

90111-187-000

$5.59

15

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

16

BOLT, FLANGE (6MM)

90113-MW0-000

$5.43

17

BOLT, FLANGE (6X14)

90105-MCE-750

$1.49

17

BOLT, FLANGE (6X14) This part replaces 90131-MN5-000.

90105-MCE-750

$1.49

18

NUT, U (18MM)

90305-MB4-003

$12.52

19

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

20

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

21

BEARING, NEEDLE

91071-MR7-003

$25.68

22

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$18.01

23

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

24

DUST SEAL (26X37X5)

91214-MR7-003

$6.99

25

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

26

WASHER, PLAIN (6MM)

94103-06000

$1.49

27

CIRCLIP (OUTER) (10MM)

94511-10000

$1.49

28

CIRCLIP, INNER (37MM)

94520-37000

$2.18
