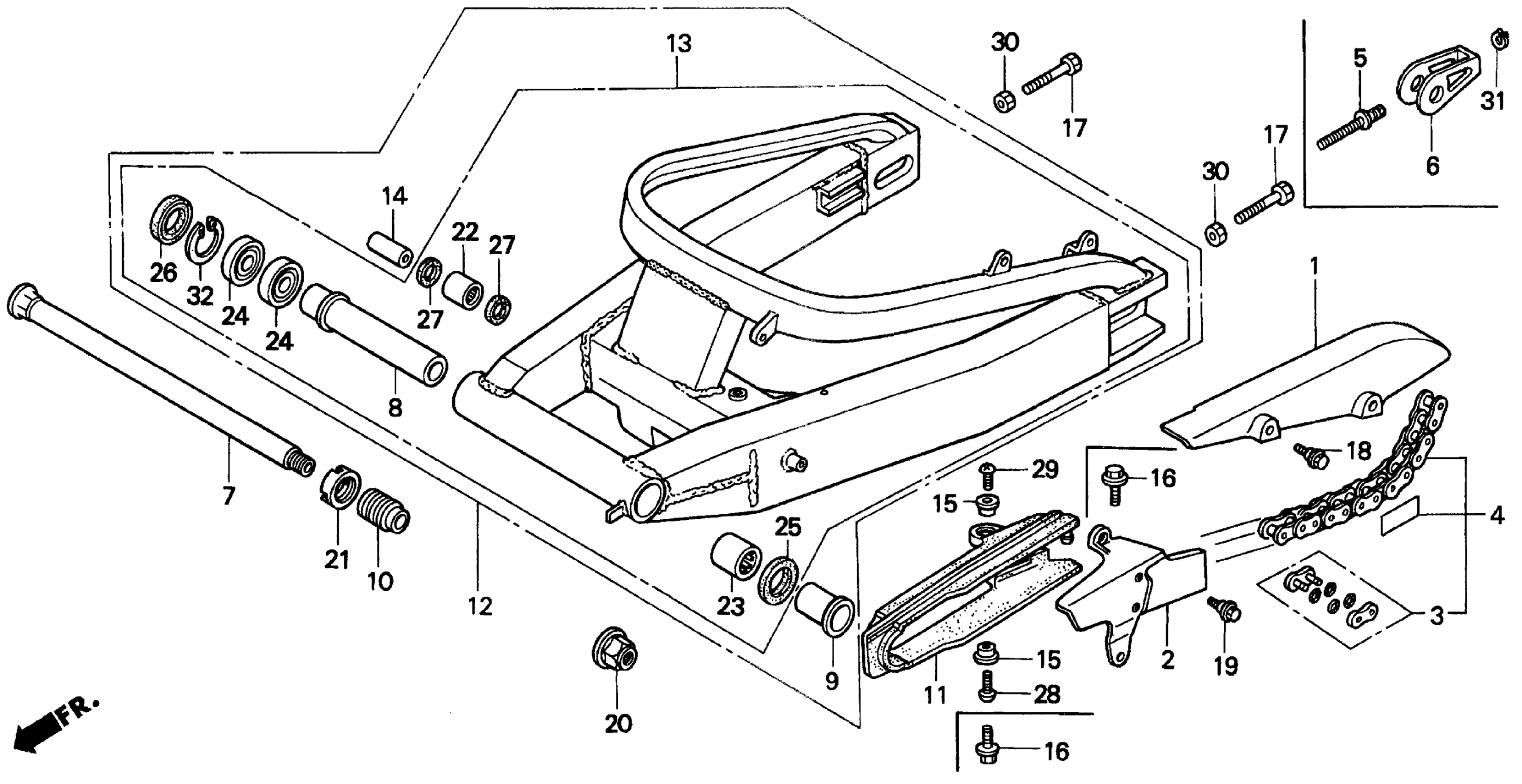

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (A)

40510-KY2-700

Unavailable

2

CASE B, DRIVE CHAIN

40520-MW0-000

Unavailable

3

MASTER LINK (DAIDO)

40545-MAS-003

$7.46

3

MASTER LINK (RK EXCEL)

40545-MAS-005

Unavailable

4

CHAIN SET, DRIVE (102L-120L) (DAIDO)

06405-MAS-003

Unavailable

4

CHAIN SET, DRIVE (RK525 112-120L) (RK EXCEL) (NOT AVAILABLE) This part replaces 06405-MAS-005.

06405-MAS-P10

Unavailable

5

BOLT, CHAIN ADJUSTING

40542-KV3-700

$8.08

6

ADJUSTER, CHAIN This part replaces 40543-MAS-000.

40543-MAS-010

$17.31

7

BOLT, SWINGARM PIVOT

52101-MW0-000

Unavailable

8

COLLAR, SWINGARM PIVOT

52102-MW0-000

$17.66

9

COLLAR B, PIVOT

52106-MR7-000

$34.38

10

BOLT, PIVOT ADJUSTING

52109-MR8-000

Unavailable

11

SLIDER, CHAIN

52170-MW0-000

Unavailable

12

SWINGARM SUB-ASSY., RR.

52200-MAS-000

Unavailable

14

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

15

COLLAR

81312-GJ5-000

$3.31

16

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

18

BOLT, FLANGE (6MM)

90111-187-000

$5.59

19

BOLT, FLANGE (6MM)

90113-MW0-000

$5.43

20

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

21

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

22

BEARING, NEEDLE (17X24X25) This part replaces 91071-KM4-004.

91072-MJ0-003

$26.62

23

BEARING, NEEDLE

91071-MR7-003

$25.68

24

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$18.01

25

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

26

DUST SEAL (26X37X5)

91214-MR7-003

$6.99

27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

31

CIRCLIP (OUTER) (10MM)

94511-10000

$1.49

32

CIRCLIP (INNER) (37MM)

94520-37000

$2.18
