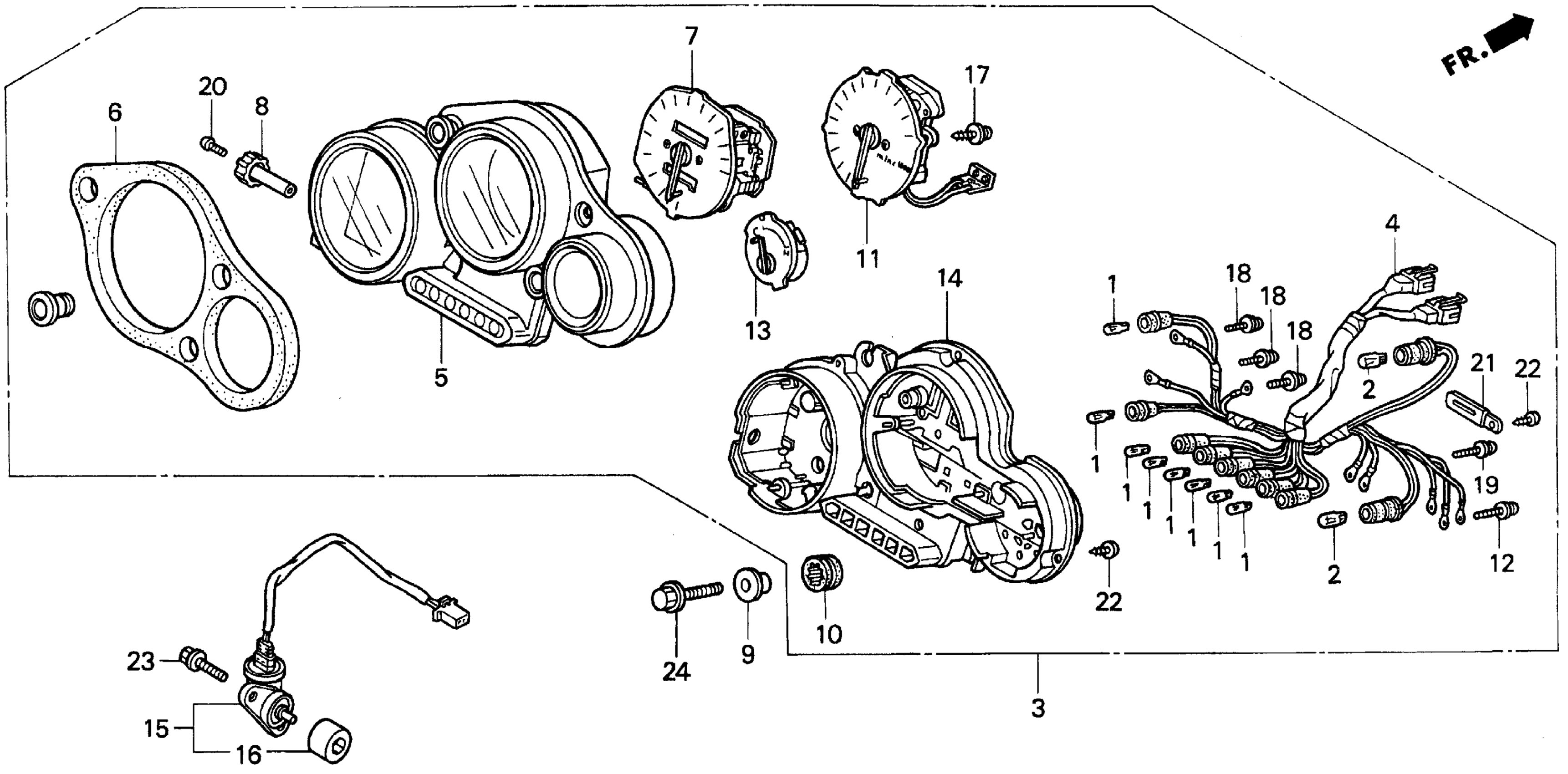

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 SPEEDOMETER + TACHOMETER 95-97 Diagram

#

Description
Price

1

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

2

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34909-KW3-003

$3.31

3

METER ASSY., COMBINATION

37100-MAS-671

Unavailable

4

SOCKET

37105-MAE-611

Unavailable

5

CASE (UPPER)

37110-MAE-602

Unavailable

5

CASE (UPPER) This part replaces 37110-MAE-672.

37110-MAE-602

Unavailable

6

PANEL

37130-MAE-611

Unavailable

7

SPEEDOMETER ASSY.

37200-MAS-671

Unavailable

8

KNOB, TRIP

37220-MA6-008

$12.84

9

COLLAR, SPEEDOMETER SETTING

37243-KV3-830

$6.15

10

RUBBER, SPEEDOMETER SETTING

37244-MM4-000

$5.12

11

TACHOMETER ASSY. This part replaces 37250-MAE-671.

37250-MAS-601

Unavailable

11

TACHOMETER ASSY.

37250-MAS-601

Unavailable

12

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

13

METER ASSY., TEMPERATURE

37400-MAS-601

Unavailable

14

CASE ASSY. (LOWER)

37615-MAE-611

Unavailable

15

SENSOR ASSY., SPEED This part replaces 37700-MAE-601.

37700-MAE-602

Unavailable

16

JOINT, SPEEDOMETER

44808-MR7-013

$9.98

17

SCREW, TAPPING (4X19)

90103-KV3-951

Unavailable

18

SCREW-WASHER, SPECIAL (3X18)

90102-MAE-611

Unavailable

19

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

20

SCREW, PAN (2X6)

90158-KM7-911

$1.92

21

CLAMP

90651-KW3-670

Unavailable

22

SCREW, TAPPING (4X16)

93903-24480

$1.49

23

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

24

BOLT, FLANGE (6X22)

96300-06022-07

$1.62
