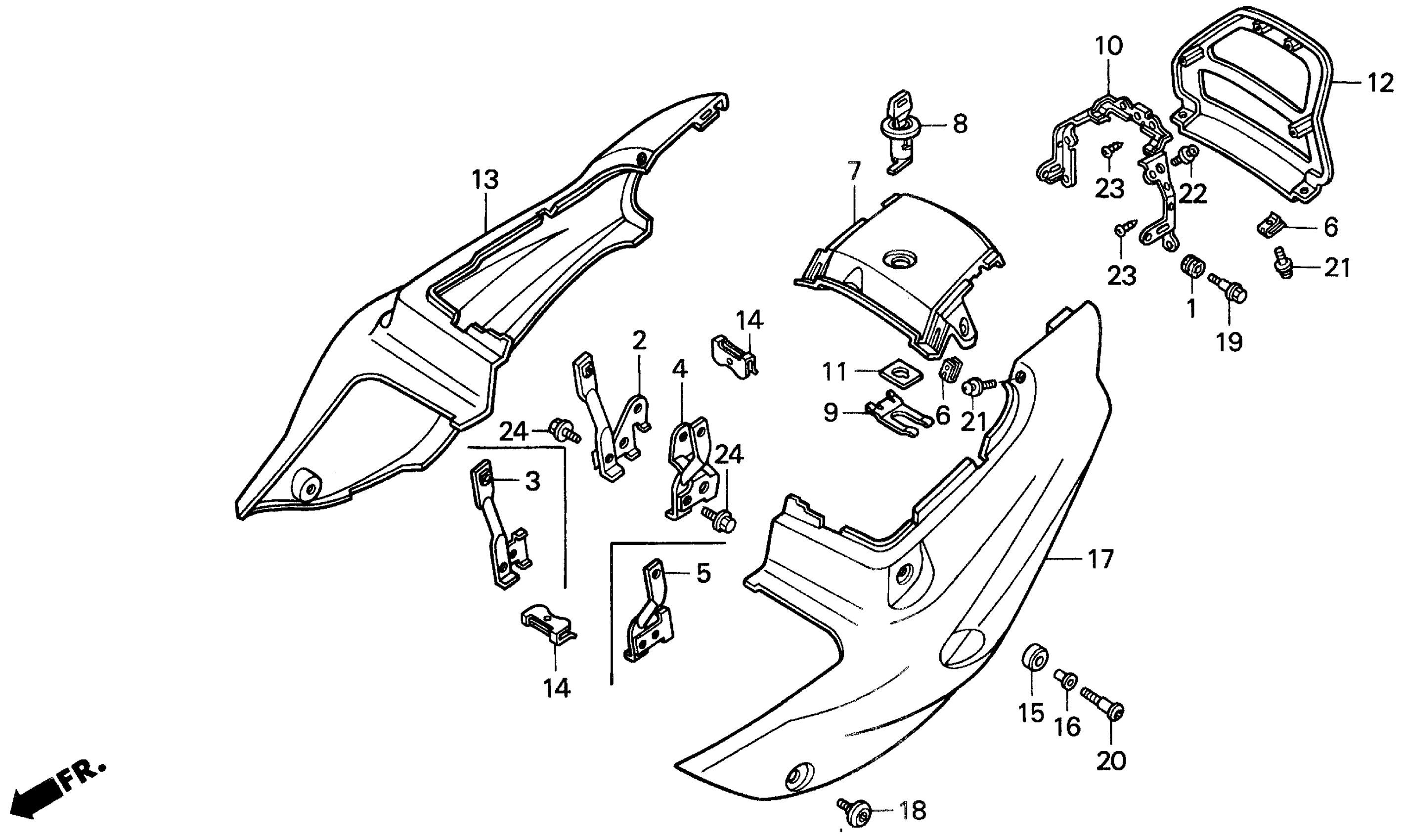

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 SIDE COVER Diagram

#

Description
Price

1

RUBBER A, PROTECTOR

18320-196-000

$2.67

2

STAY, R. SIDE COVER

50201-MAE-000

Unavailable

4

STAY, L. SIDE COVER

50202-MAE-000

Unavailable

6

NUT, CLIP (4MM) This part replaces 64527-ML7-000.

64527-KY2-700

$4.46

7

COWL, RR. SEAT *NH196* (ROSS WHITE)

77210-MAS-000ZA

Unavailable

7

COWL, RR. SEAT *R158P* (PURE RED)

77210-MAS-000ZB

Unavailable

7

COWL, RR. SEAT *NH1* (BLACK)

77210-MAS-000ZF

Unavailable

8

LOCK ASSY., SEAT

77225-ME4-003

Unavailable

9

SPRING, LOCK KEY SETTING

77226-KY2-700

$6.39

10

STAY, TAILLIGHT

77234-MAS-000

Unavailable

11

WASHER, SEAT LOCK This part replaces 77236-GW0-000.

77236-GZ5-000

$2.92

11

WASHER, SEAT LOCK

77236-GZ5-000

$2.92

12

COVER SET, TAIL (TYPE1) (WL)

77250-MAS-000ZB

Unavailable

12

COVER SET, TAIL (TYPE4) (WL)

77250-MAS-670ZB

Unavailable

13

COVER SET, R. SIDE (TYPE2) (WL)

83600-MAS-780ZB

Unavailable

13

COVER SET, R. SIDE (TYPE4) (WL)

83600-MAS-770ZA

Unavailable

13

COVER SET, R. SIDE (TYPE5) (WL)

83600-MAS-770ZB

Unavailable

14

CLIP, SIDE COWL SETTING

83636-KY1-000

Unavailable

15

SPACER, SIDE COWL SETTING

83641-KY2-700

$4.06

16

COLLAR, SIDE COWL SETTING

83642-KY2-700

$4.57

17

COVER SET, L. SIDE (TYPE2) (WL)

83700-MAS-780ZB

Unavailable

17

COVER SET, L. SIDE (TYPE4) (WL)

83700-MAS-770ZA

Unavailable

17

COVER SET, L. SIDE (TYPE5) (WL)

83700-MAS-770ZB

Unavailable

18

BOLT, COWL SETTING

90112-MT4-000

$3.31

19

BOLT, FLANGE (6X22)

90113-GJ2-000

Unavailable

20

BOLT, SIDE COWL SETTING

90116-KY2-700

$10.32

21

SCREW-WASHER (4X12)

93891-04012-07

$1.49

22

SCREW-WASHER (4X12)

93894-04012-00

$1.49

23

SCREW, TAPPING (4X10)

93903-44220

$1.49

24

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
