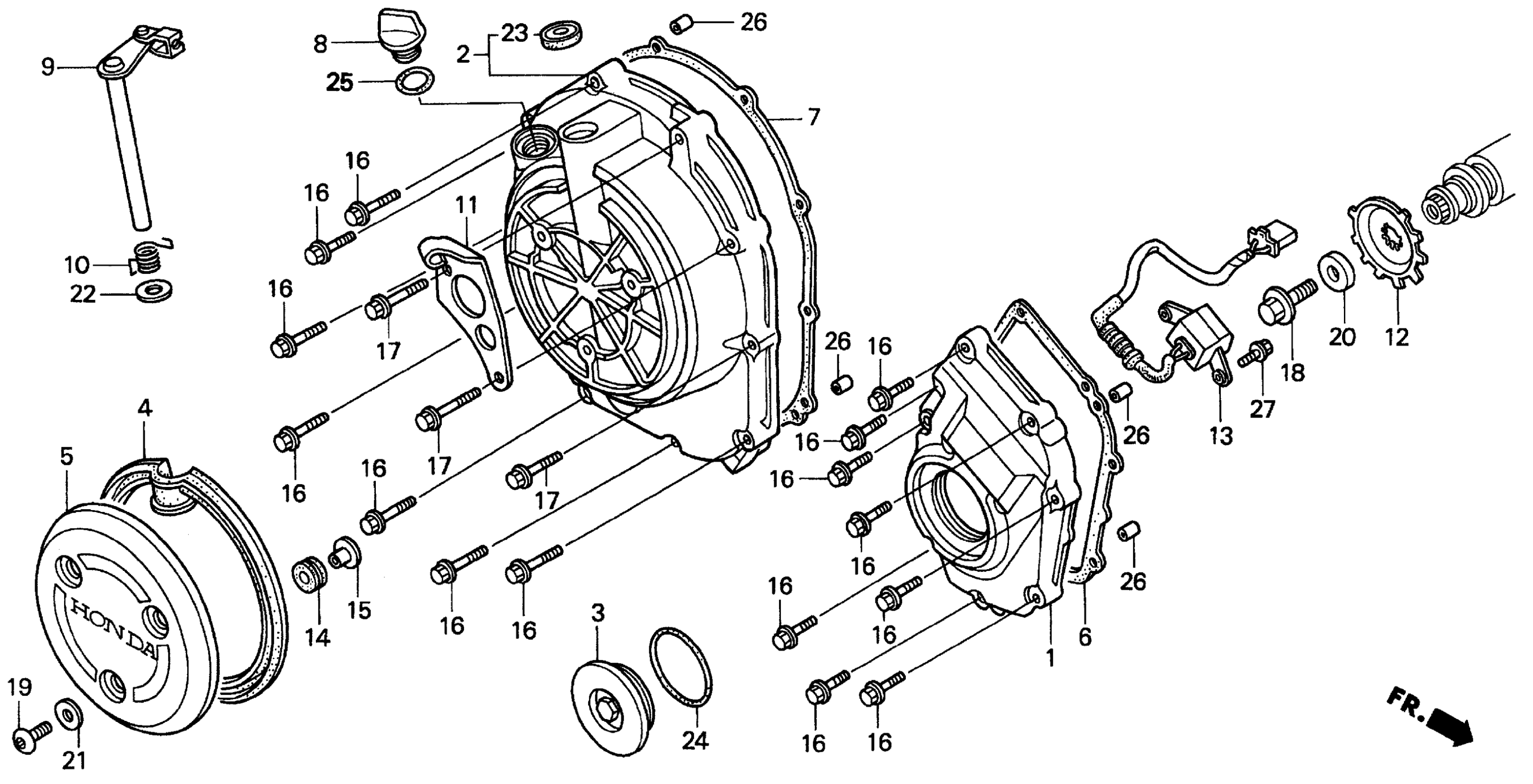

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 RIGHT CRANKCASE COVER 96-97 Diagram

#

Description
Price

1

COVER, PULSER This part replaces 11311-MW0-000.

11311-MER-D00

Unavailable

2

COVER, CLUTCH

11330-MAS-000

$368.33

3

CAP (45MM)

11332-ML7-000

$28.05

4

RUBBER, CLUTCH COVER

11334-MAS-000

$18.66

5

COVER, CENTER

11371-MAS-000

Unavailable

6

GASKET, PULSER COVER

11391-MV9-670

$13.63

7

GASKET, CLUTCH COVER

11393-MV9-670

$22.65

8

CAP, OIL FILLER

15611-KY4-900

$5.05

9

LEVER, CLUTCH

22810-MAS-000

Unavailable

10

SPRING, CLUTCH LEVER

22815-MW0-000

Unavailable

11

RECEIVER, CLUTCH CABLE

22821-MAS-000

Unavailable

12

ROTOR, PULSE

30291-MV9-671

Unavailable

13

GENERATOR ASSY., PULSE

30300-MW0-003

Unavailable

14

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$5.31

15

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

16

BOLT, FLANGE (6X28) (NSHF)

90005-GHB-680

$3.47

17

BOLT, FLANGE (6X40) (NSHF)

90005-GHB-710

$3.80

18

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

19

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.67

20

WASHER (10.5X27)

90405-KT7-000

$4.70

21

WASHER, PLAIN (6MM)

90525-428-900

$1.92

22

WASHER

90525-MBZ-610

$2.39

22

WASHER This part replaces 90529-KAE-000.

90525-MBZ-610

$2.39

23

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

24

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

25

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

26

PIN, DOWEL (8X14)

94301-08140

$2.25

27

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
