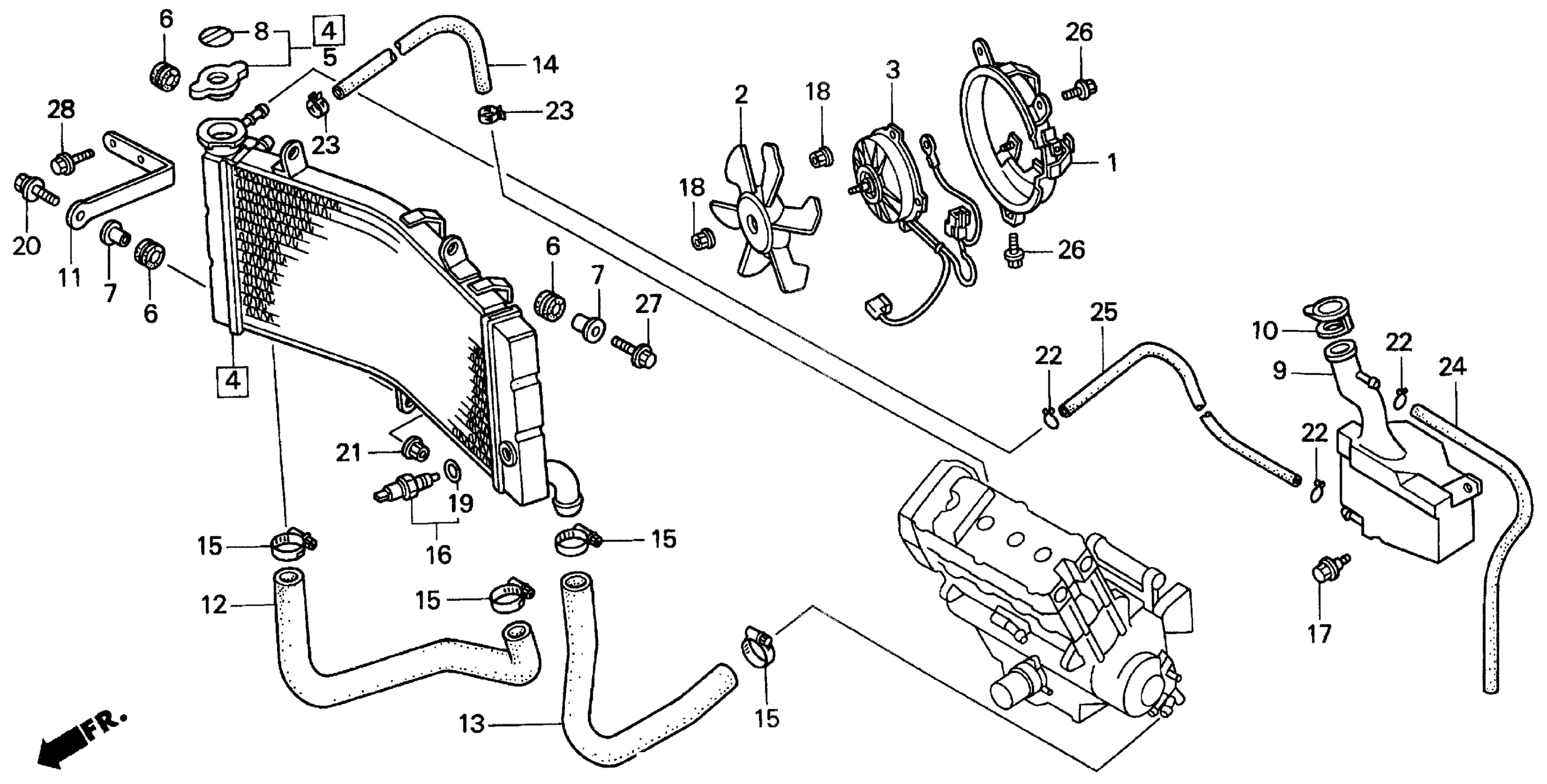

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 RADIATOR 96-97 Diagram

#

Description
Price

1

SHROUD

19015-MAS-003

Unavailable

2

FAN, COOLING

19020-MG8-003

$56.74

3

MOTOR ASSY., FAN

19030-MAS-601

Unavailable

4

RADIATOR SET

19040-MAS-003

Unavailable

5

CAP, RADIATOR

19045-MZ1-621

$45.13

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

7

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

9

TANK, RADIATOR RESERVE

19101-MW0-000

Unavailable

10

CAP, RESERVE TANK

19104-MB0-700

$10.92

11

STAY, RADIATOR

19113-MAS-000

Unavailable

12

HOSE, RADIATOR (UPPER)

19501-MAS-000

Unavailable

13

HOSE, RADIATOR (LOWER)

19505-MAS-000

Unavailable

14

TUBE, WATER

19511-MAS-000

Unavailable

15

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

16

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

17

BOLT, FLANGE (6MM)

90111-162-000

$2.62

18

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

19

O-RING (13.5X1.4)

91307-PH7-660

$2.78

19

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

20

BOLT-WASHER (6X28)

93404-06028-00

$0.93

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

CLIP, TUBE (B10)

95002-02100

$1.72

23

CLAMP, TUBE (D12.5)

95002-41250-08

$2.30

24

BULK HOSE, VACUUM (5.5X3000) (5.3X530)

95005-55003-20M

$30.62

25

BULK HOSE, VACUUM (5.5X3000) (5.3X750)

95005-55003-20M

$30.62

26

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

27

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

28

BOLT, FLANGE (6X16)

96300-06016-00

$0.86
