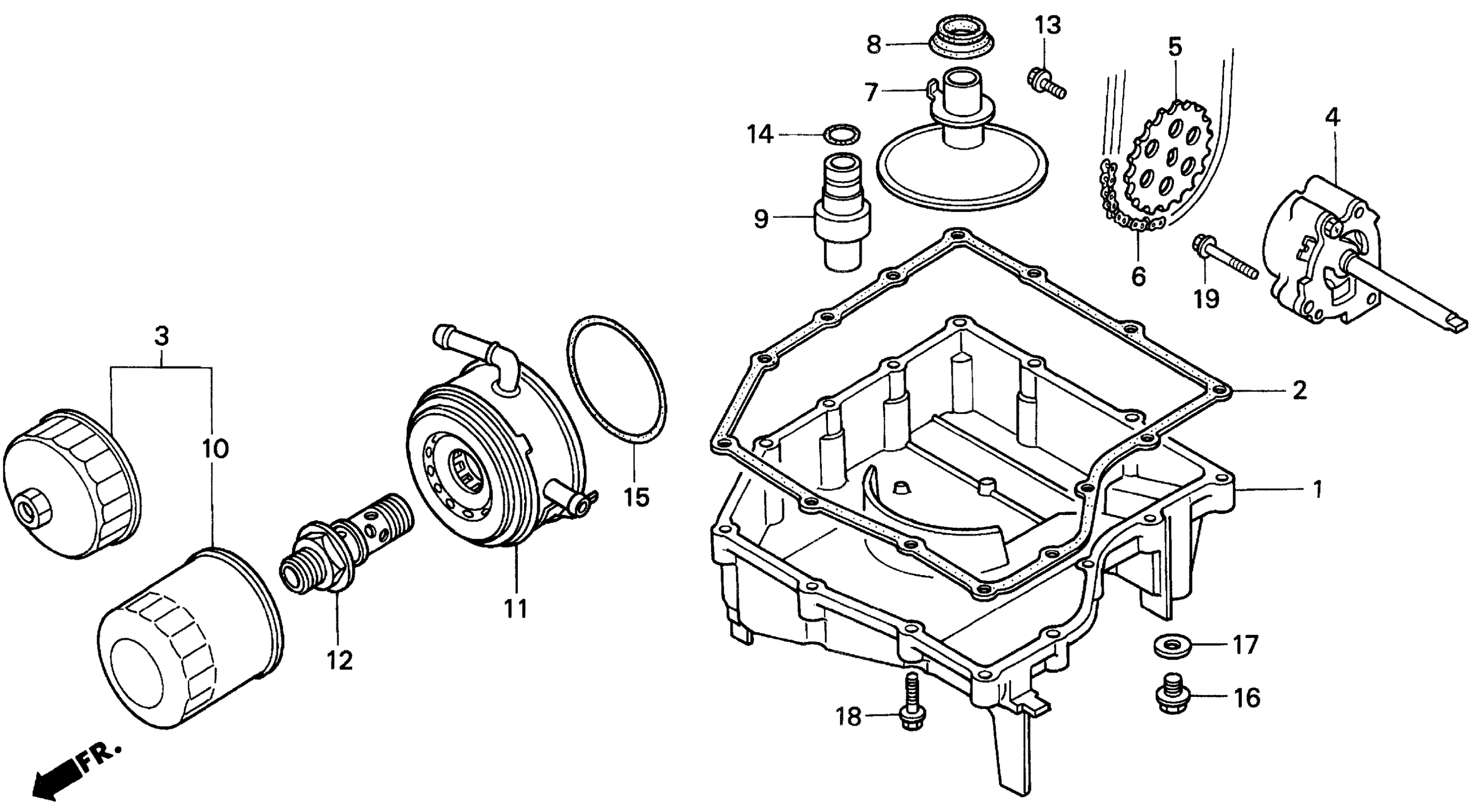

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11210-MAE-000

Unavailable

2

GASKET, OIL PAN

11394-MV9-670

$15.29

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

3

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

4

PUMP ASSY., OIL

15100-MW0-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (26T)

15134-MV9-670

$27.03

6

CHAIN, OIL PUMP (25H-50) (DAIDO)

15140-ML0-003

Unavailable

7

STRAINER, OIL

15153-MAS-000

Unavailable

8

GASKET, OIL STRAINER

15154-MM5-000

$6.60

9

VALVE ASSY., RELIEF

15220-MW0-000

$40.77

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

11

COOLER, OIL This part replaces 15700-MW0-013.

15700-MW0-505

Unavailable

12

BOLT, OIL COOLER

90019-MW0-000

Unavailable

13

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

14

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

14

O-RING (14.8X2.2)

91313-MG7-004

$3.67

15

O-RING (62.4X3.1)

91316-PE7-730

$5.69

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

18

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

19

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
