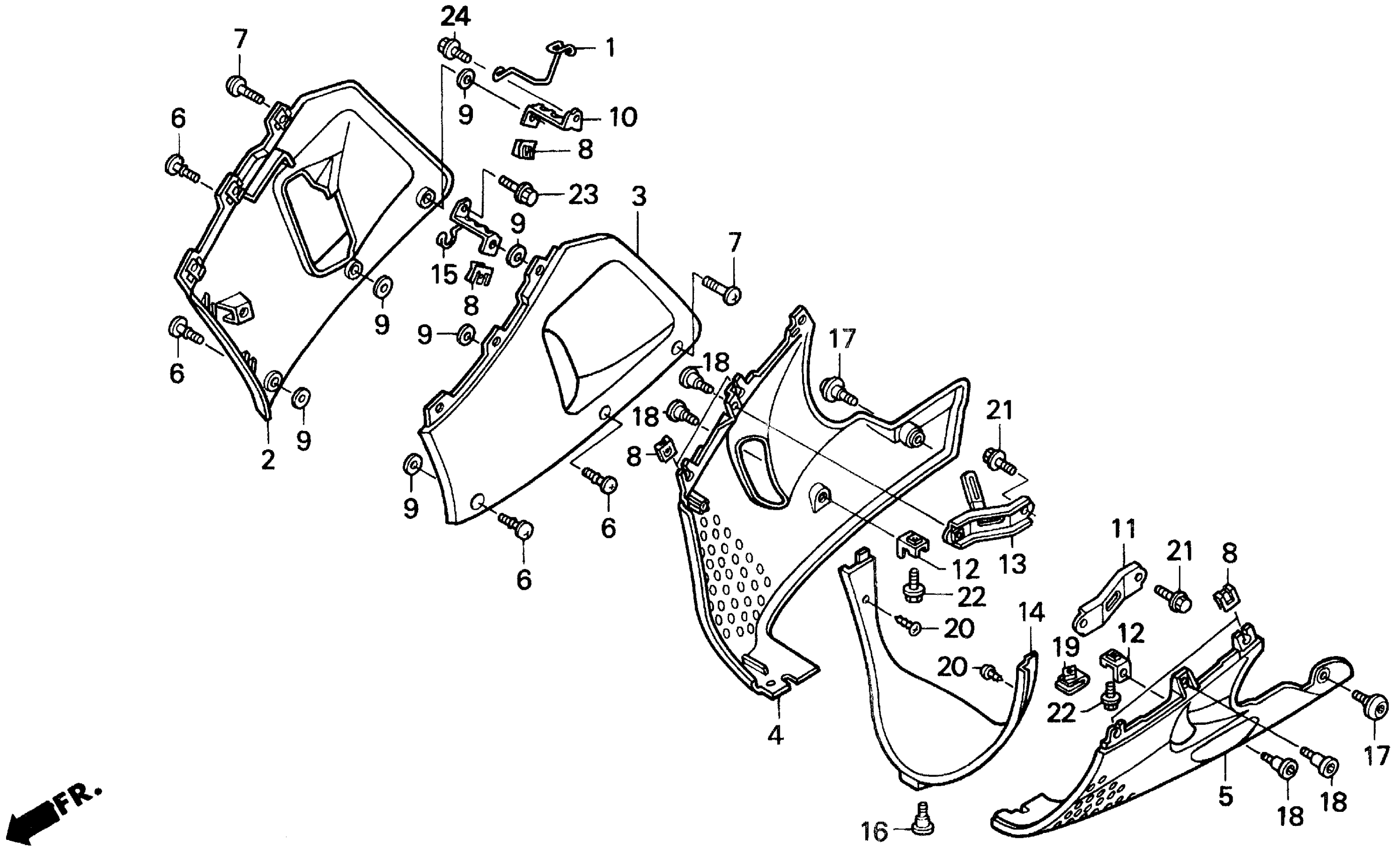

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 LOWER COWL Diagram

CLAMP, AIR VENT TUBE

16961-MW0-000

Unavailable

COWL SET, R. MIDDLE (TYPE4) (WL)

64300-MAS-770ZA

Unavailable

COWL SET, R. MIDDLE (TYPE5) (WL)

64300-MAS-770ZB

Unavailable

COWL SET, R. MIDDLE (TYPE6) (WL)

64300-MAS-790ZA

Unavailable

COWL SET, L. MIDDLE (TYPE4) (WL)

64350-MAS-770ZA

Unavailable

COWL SET, L. MIDDLE (TYPE5) (WL)

64350-MAS-770ZB

Unavailable

COWL SET, L. MIDDLE (TYPE6) (WL)

64350-MAS-790ZA

Unavailable

COWL SET, R. (LOWER) (TYPE2) (WL)

64400-MAS-780ZB

Unavailable

COWL SET, R. (LOWER) (TYPE4) (WL)

64400-MAS-770ZA

Unavailable

COWL SET, R. (LOWER) (TYPE5) (WL)

64400-MAS-770ZB

Unavailable

COWL SET, L. (LOWER) (TYPE2) (WL)

64450-MAS-780ZB

Unavailable

COWL SET, L. (LOWER) (TYPE4) (WL)

64450-MAS-770ZA

Unavailable

COWL SET, L. (LOWER) (TYPE5) (WL)

64450-MAS-770ZB

Unavailable

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.52

STUD (6X16) This part replaces 64507-MW0-000.

64507-MW0-010

$13.38

PLATE, SPRING

64508-KV3-000

$7.22

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

STAY, R. MIDDLE COWL

64531-MW0-000

Unavailable

STAY, R. COWL (LOWER/UPPER) This part replaces 64541-MW0-000.

64546-MW0-000

$13.74

STAY, COWL (LOWER) (B)

64542-MW0-000

Unavailable

STAY, R. COWL (LOWER/UPPER)

64546-MW0-000

$13.74

COWL (LOWER) (INNER) *NH1* (BLACK)

64560-MW0-670ZB

Unavailable

STAY, L. MIDDLE COWL

64581-MAE-000

Unavailable

SCREW, SPECIAL (6X19)

90104-MN4-000

$5.78

BOLT, COWL SETTING

90112-MT4-000

$3.31

SCREW, PAN (6X14)

90113-MM5-000

$3.10

NUT, CLIP (6MM)

90321-MM5-000

$5.64

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X12)

96300-06012-07

$1.49

BOLT, FLANGE (6X16)

96300-06016-07

Unavailable
