Description

Price

1

CABLE A, THROTTLE

17910-MAS-000

Unavailable

2

CABLE B, THROTTLE

17920-MW0-000

Unavailable

3

CABLE, CHOKE

17950-MAS-000

Unavailable

4

STAY, CHOKE CABLE

17951-MV4-000

Unavailable

5

CABLE, CLUTCH

22870-MAS-000

Unavailable

6

SWITCH ASSY., STARTER STOP This part replaces 35013-MAS-730.

35013-MAS-731

Unavailable

7

SWITCH SET, TURN SIGNAL

35020-MAS-670

Unavailable

10

SWITCH, FR. LEVER

35330-413-003

$21.91

11

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

12

GRIP, R.

53140-KY6-000

$28.05

14

GRIP, R. HANDLE

53165-KT8-710

$8.72

15

GRIP, L. HANDLE

53166-KT8-710

$8.96

18

BRACKET, HANDLEBAR

53172-KT8-710

$34.54

19

LEVER, L. HANDLE

53178-KV3-000

$20.30

20

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

21

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

22

NUT, FIXING

90321-MA6-750

$10.45

23

BAND, HARNESS

91548-SA5-003

$5.62

26

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW-WASHER (5X20)

93892-05020-07

$1.49

29

SCREW-WASHER (5X25)

93892-05025-07

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

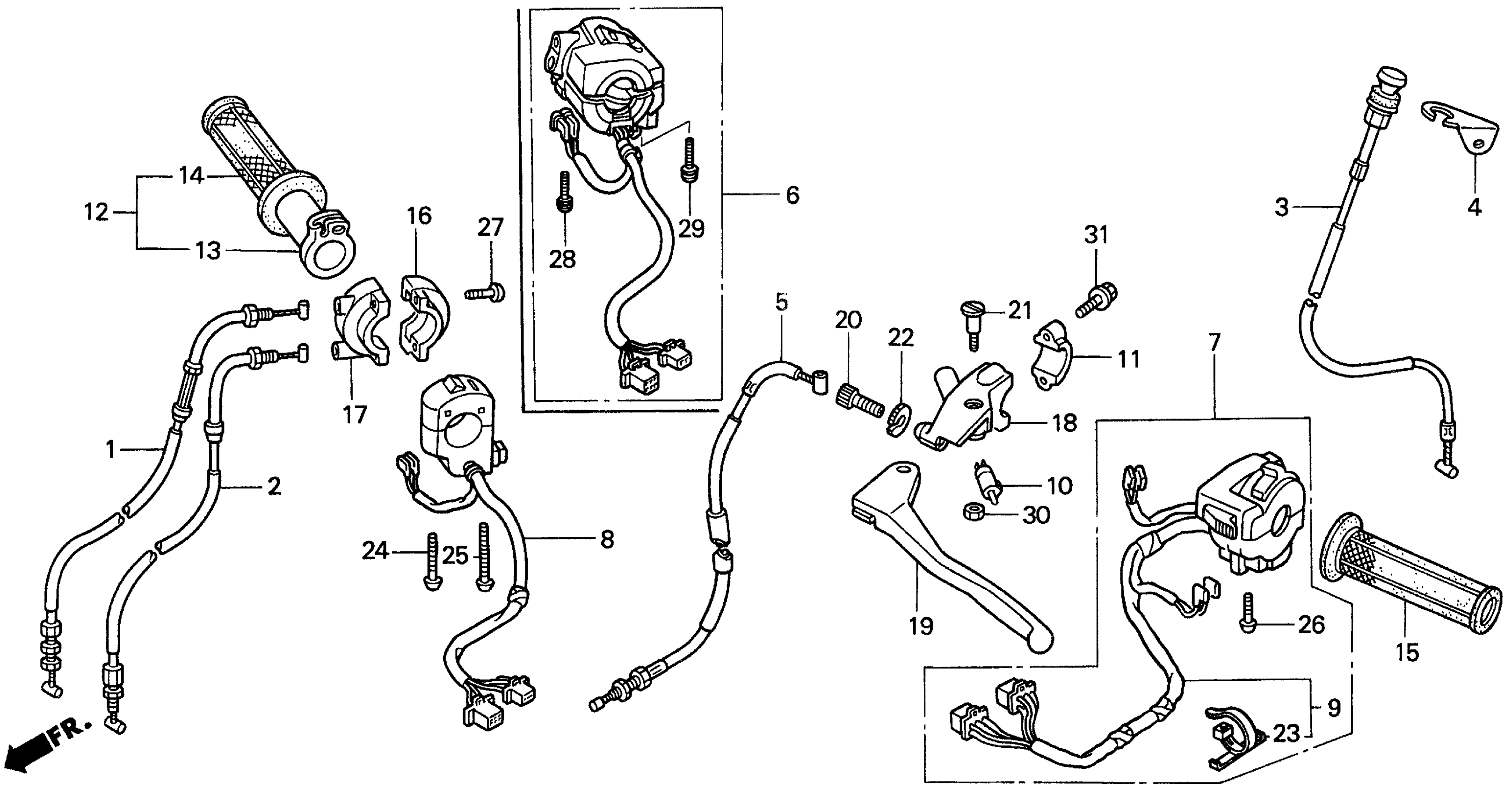

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 HANDLE SWITCH Diagram

CABLE A, THROTTLE

CABLE B, THROTTLE

CABLE, CHOKE

STAY, CHOKE CABLE

CABLE, CLUTCH

SWITCH ASSY., STARTER STOP This part replaces 35013-MAS-730.

SWITCH SET, TURN SIGNAL

SWITCH, FR. LEVER

HOLDER, MASTER CYLINDER

GRIP, R.

GRIP, R. HANDLE

GRIP, L. HANDLE

BRACKET, HANDLEBAR

LEVER, L. HANDLE

BOLT, CLUTCH CABLE ADJUSTING

BOLT, L. HANDLEBAR LEVER PIVOT

NUT, FIXING

BAND, HARNESS

SCREW, PAN (5X20)

SCREW-WASHER (5X20)

SCREW-WASHER (5X25)

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

NUT, HEX. (6MM)

BOLT, FLANGE (6X22)
