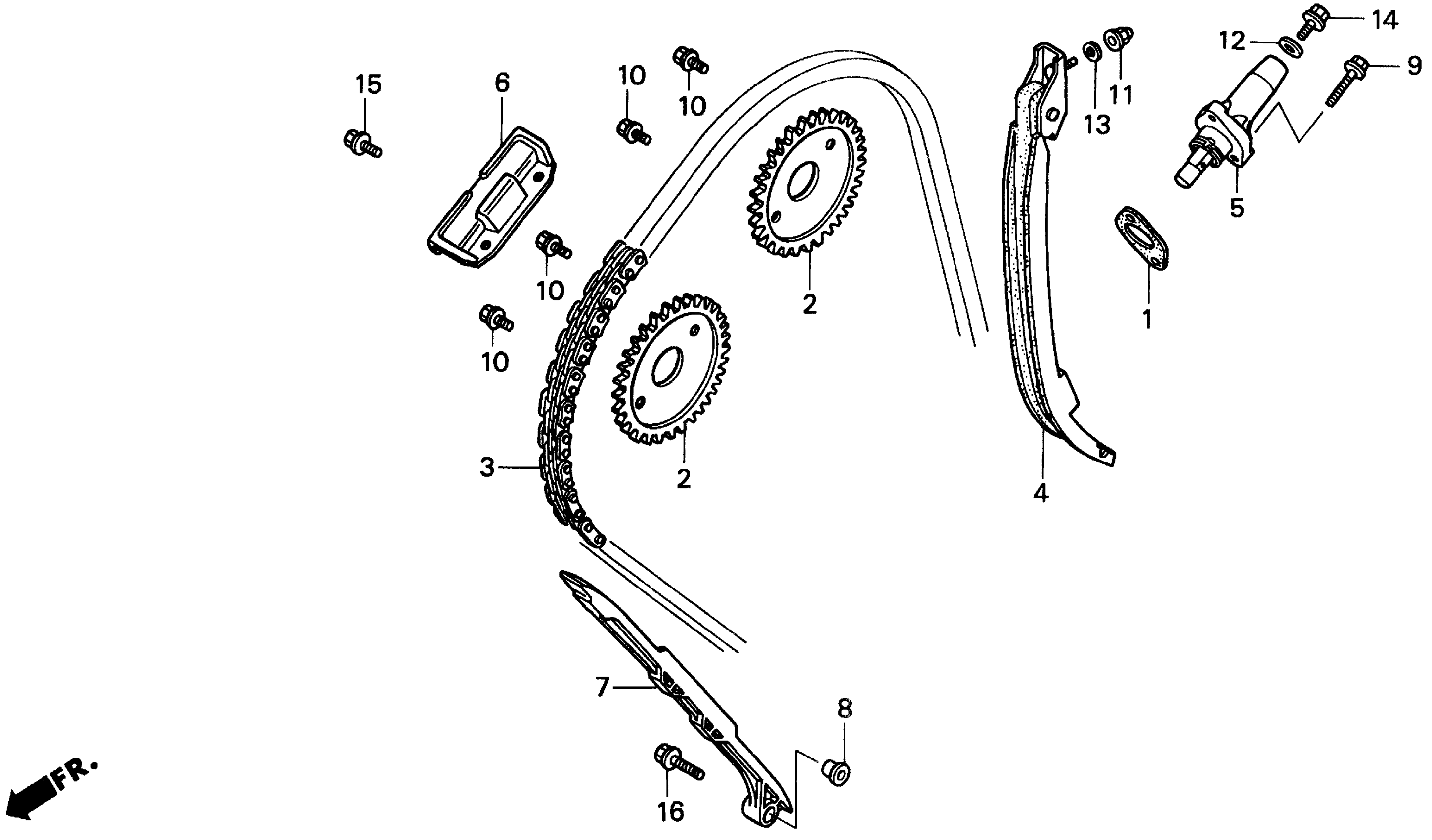

Honda CBR900RRA (97) MOTORCYCLE, JPN, VIN# JH2SC330-VM100001 CAM CHAIN Diagram

GASKET, TENSIONER HOLE

12194-HC5-740

$2.48

SPROCKET, CAM (34T)

14321-MW0-000

Unavailable

CHAIN, CAM (125L) (BORG WARNER) This part replaces 14401-MAS-003.

14401-MAS-013

$112.62

CHAIN, CAM

14401-MAS-013

$112.62

TENSIONER, CAM CHAIN

14510-MAS-000

Unavailable

LIFTER ASSY., TENSIONER

14520-MAS-003

Unavailable

GUIDE B, CAM CHAIN

14546-MW0-000

Unavailable

GUIDE A, CAM CHAIN (NOK)

14620-MW0-003

$97.31

COLLAR (8MM)

14626-MV9-670

Unavailable

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, SEALING (6MM)

90442-397-000

$2.28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (8X32)

95801-08032-00

$2.07
