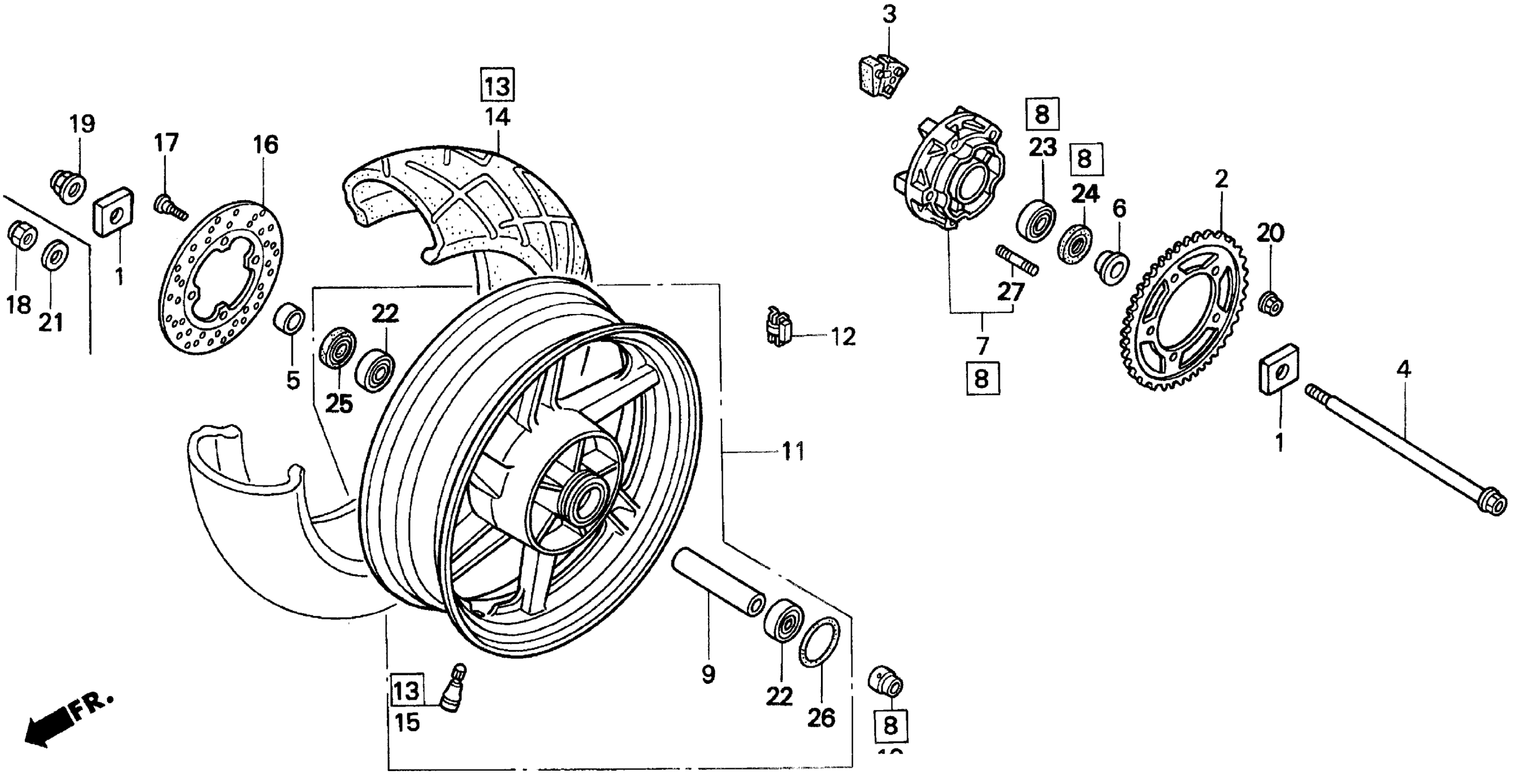

Honda CBR900RRA (95) MOTORCYCLE, JPN, VIN# JH2SC280-SM300001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-MW0-000

Unavailable

2

SPROCKET, FINAL DRIVEN (43T) This part replaces 41201-MV9-000.

41201-MAL-600

Unavailable

2

SPROCKET, FINAL DRIVEN (43T) This part replaces 41201-MV9-505.

41201-MAL-600

Unavailable

3

DAMPER, RR. WHEEL

41241-MA6-000

$17.42

4

AXLE, RR. WHEEL

42301-MW0-010

Unavailable

5

COLLAR, RR. BRAKE SIDE

42312-MAE-010

$22.45

6

COLLAR, RR. WHEEL SIDE

42313-MAE-010

Unavailable

7

FLANGE, FINAL DRIVEN

42610-MV9-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-MW0-010

$34.02

10

COLLAR B, RR. WHEEL DISTANCE

42625-MV4-000

$26.67

11

WHEEL SET, RR. *NH1* (BLACK)

42650-MAE-315ZA

Unavailable

12

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

13

TIRE ASSY., RR. (180/55-17) (BS) (NOT AVAILABLE)

42710-MAE-003

Unavailable

15

VALVE, RIM (BS)

42753-ML7-003

$12.74

16

DISK, RR. BRAKE This part replaces 43251-KEA-000.

43251-MEE-000

$229.93

16

DISK, RR. BRAKE This part replaces 43251-MV4-000.

43251-MEE-000

$229.93

17

BOLT, DISK (8X24)

90105-MV9-003

$6.21

19

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

20

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

22

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

23

BEARING, RADIAL BALL (62/22)

91073-MV4-782

$14.67

24

DUST SEAL (30X50X7.5)

91252-MAE-003

$16.97

25

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

26

O-RING (61X2)

91302-MA6-003

$5.17

27

BOLT, STUD (12X28)

92918-12028-0E

Unavailable
