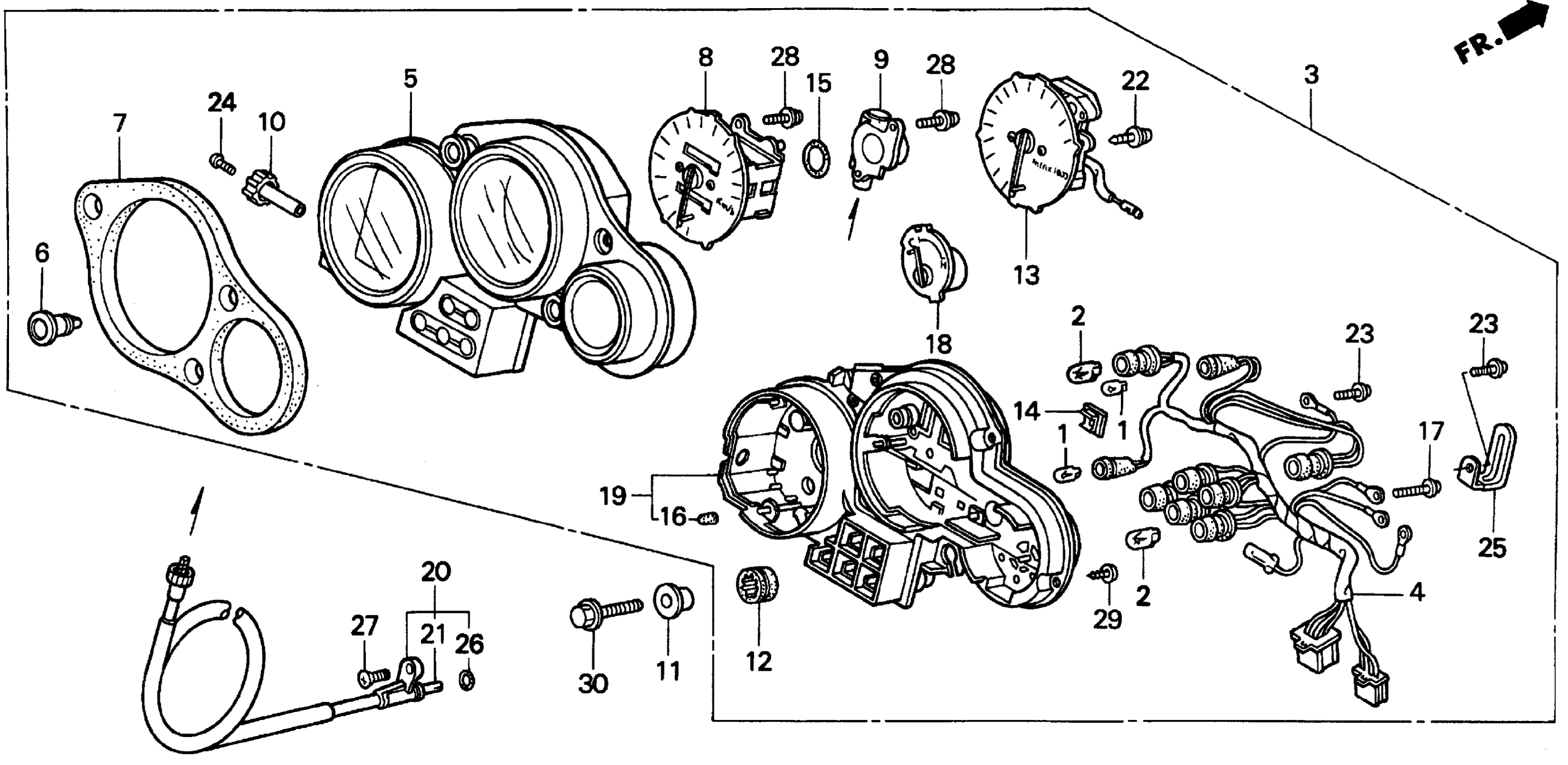

Honda CBR900RRA (94) MOTORCYCLE, JPN, VIN# JH2SC280-RM200001 TO JH2SC280-RM203322 SPEEDOMETER + TACHOMETER 93-94 Diagram

#

Description
Price

1

BULB, WEDGE BASE (12V1.7W) (STANLEY)

34907-KW3-003

Unavailable

2

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34909-KW3-003

$3.31

3

METER ASSY., COMBINATION (MPH/KPH)

37100-MW0-671

Unavailable

4

SOCKET

37105-MW0-003

Unavailable

5

CASE (UPPER)

37110-MW0-671

Unavailable

6

CLIP, METER PANEL

37112-KY1-003

Unavailable

7

PANEL

37130-KV3-831

Unavailable

8

SPEEDOMETER ASSY. (MPH/KPH)

37200-MW0-671

Unavailable

9

BOSS, ELBOW

37211-MR7-008

Unavailable

10

KNOB, TRIP METER

37220-445-008

Unavailable

11

COLLAR, SPEEDOMETER SETTING

37243-KV3-830

$6.15

12

RUBBER, SPEEDOMETER SETTING

37244-MM4-000

$5.12

13

TACHOMETER ASSY.

37250-MW0-671

Unavailable

14

CAP

37253-KV3-831

Unavailable

15

SEAL

37264-MR7-008

$3.49

16

RUBBER, CUSHION

37304-198-901

$3.89

17

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

18

METER ASSY., TEMPERATURE

37400-MV4-781

Unavailable

18

METER ASSY., TEMPERATURE This part replaces 37400-MW0-003.

37400-MV4-781

Unavailable

19

CASE ASSY. (LOWER)

37615-KV3-831

Unavailable

20

CABLE ASSY., SPEEDOMETER

44830-MN4-000

Unavailable

21

CABLE (INNER)

44831-MN4-000

Unavailable

22

SCREW-WASHER (4X22)

90101-MV4-008

Unavailable

23

SCREW-WASHER (3X10)

90102-KY1-008

Unavailable

24

SCREW, PAN (2X6)

90158-KM7-911

$1.92

25

CLIP (4X65)

90652-MV4-008

Unavailable

26

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

26

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

26

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

27

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

28

SCREW-WASHER (4X12)

93892-04014-00

$1.49

28

SCREW-WASHER (4X12) This part replaces 93892-04014-10.

93892-04014-00

$1.49

29

SCREW, TAPPING (4X16) (PO)

93913-24480

$1.49

30

BOLT, FLANGE (6X22)

96300-06022-07

$1.62
