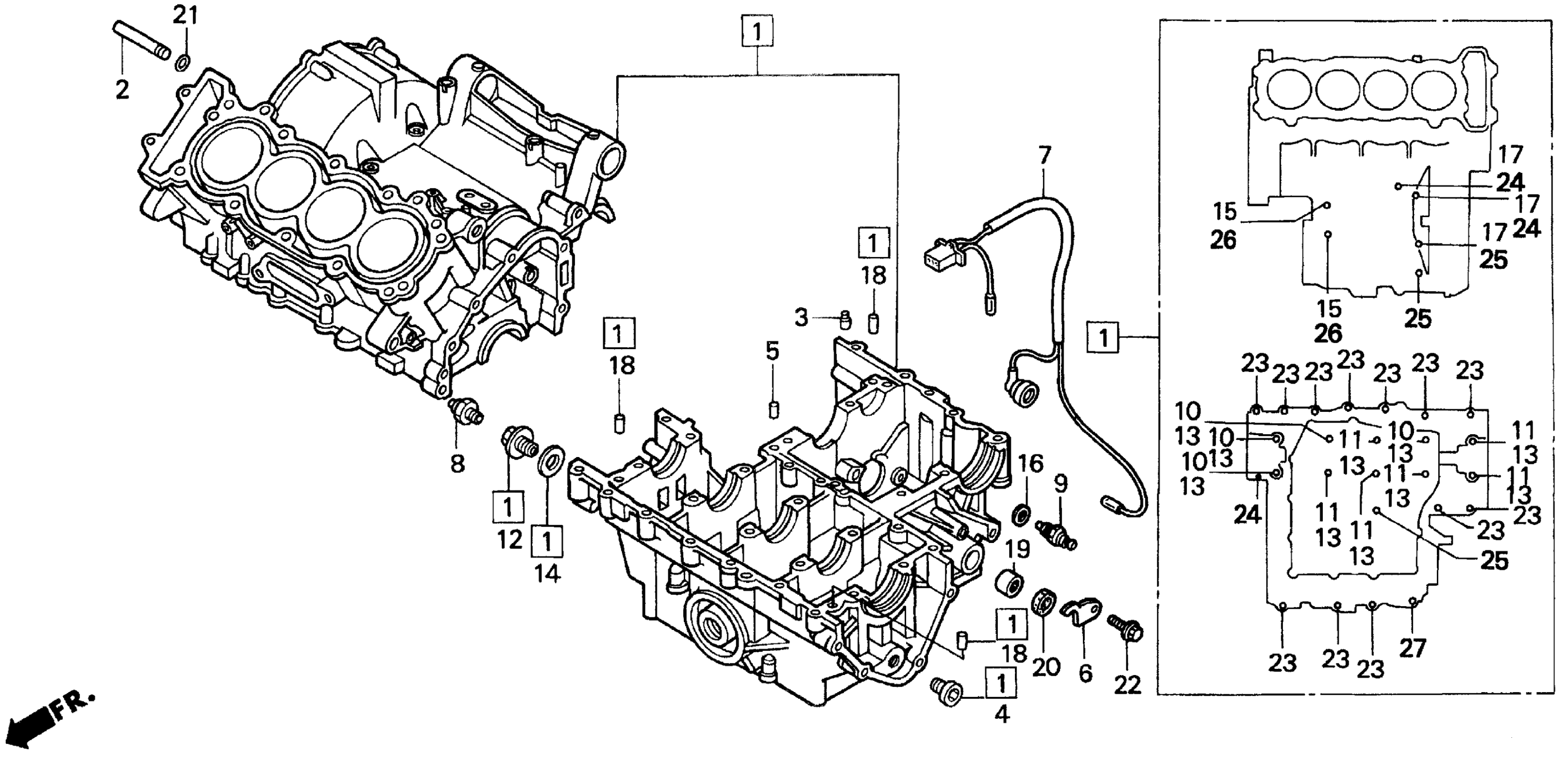

Honda CBR900RRA (94) MOTORCYCLE, JPN, VIN# JH2SC280-RM200001 TO JH2SC280-RM203322 CRANKCASE Diagram

CRANKCASE SET

11000-MW0-000

Unavailable

PLUG, SEALING

11103-MW0-000

Unavailable

ORIFICE (1.2MM)

11104-MW0-000

$19.30

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

BOLT, SEALING (18MM) This part replaces 12206-371-300.

12206-ML8-300

$9.11

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.11

BOLT, SEALING (18MM) This part replaces 12206-611-300.

12206-ML8-300

$9.11

ORIFICE (1.2MM)

15515-KT8-000

$7.72

SUB-WIRE A

32101-MW0-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

BOLT, FLANGE (9X90)

90014-MW0-003

Unavailable

BOLT, FLANGE (9X110)

90015-MAT-000

$5.98

BOLT, FLANGE (9X110) This part replaces 90015-MW0-003.

90015-MAT-000

$5.98

BOLT, SEALING (20MM) This part replaces 90048-MM5-000.

90048-MAL-600

$11.87

BOLT, SEALING (20MM)

90048-MAL-600

$11.87

WASHER, SEALING (9MM)

90401-MW0-000

$5.66

WASHER, SEALING (20MM)

90441-MN5-000

$5.08

WASHER, SEALING (8MM)

90442-028-000

$1.77

WASHER, NEUTRAL

90443-MJ6-000

$1.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

O-RING (5.2X1.9)

91315-PN1-000

$2.33

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (10X65)

95701-10065-00

$3.13
