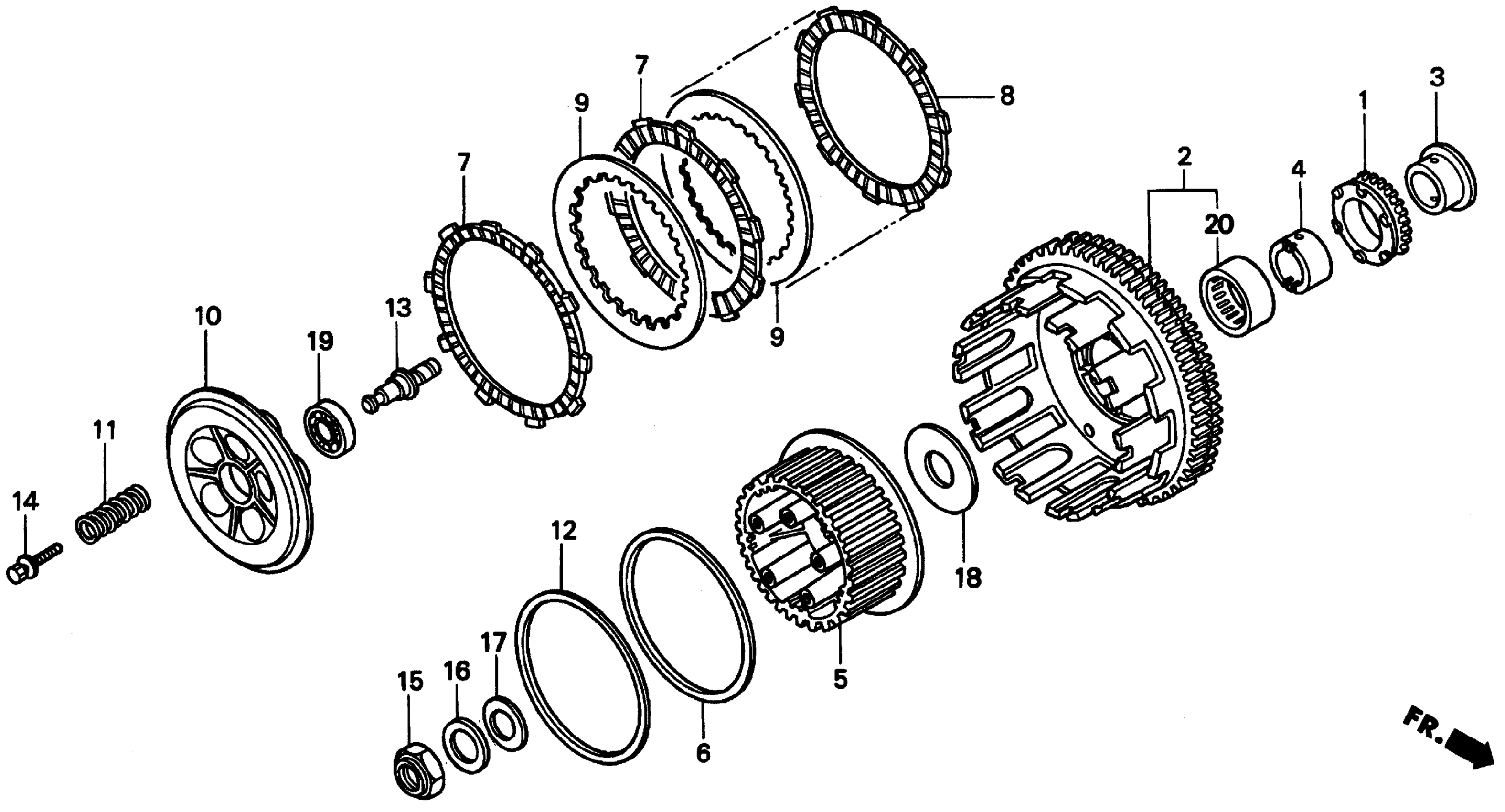

Honda CBR900RRA (94) MOTORCYCLE, JPN, VIN# JH2SC280-RM200001 TO JH2SC280-RM203322 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T) This part replaces 15131-MV9-671.

15131-MAS-003

$62.23

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

$62.23

2

CLUTCH (OUTER) This part replaces 22100-MW0-000.

22100-MAE-000

Unavailable

2

CLUTCH (OUTER)

22100-MAE-000

Unavailable

3

COLLAR, OIL PUMP SPROCKET

22116-MV9-670

Unavailable

4

COLLAR, DISTANCE

22117-MW0-000

Unavailable

5

CENTER, CLUTCH

22120-MW0-000

Unavailable

6

SEAT, JUDDER SPRING

22125-ML7-000

$10.67

7

DISK, CLUTCH FRICTION This part replaces 22201-MV4-000.

22201-MAE-000

$16.01

8

DISK B, CLUTCH FRICTION This part replaces 22202-MV8-920.

22202-MAE-000

$16.01

8

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

9

PLATE, CLUTCH

22321-MW0-000

$17.31

10

PLATE, CLUTCH PRESSURE

22350-ML7-000

Unavailable

11

SPRING, CLUTCH

22401-MS8-000

$4.51

12

SPRING, JUDDER

22402-MW0-000

Unavailable

13

PIN, CLUTCH LIFTER This part replaces 22847-MW0-000.

22847-MAE-000

$65.31

13

PIN, CLUTCH LIFTER

22847-MAE-000

$65.31

14

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

15

NUT, LOCK (22MM)

90231-MM5-000

$10.45

16

WASHER, SPRING (22MM)

90432-MM5-000

$8.52

18

WASHER (60X25X2)

90459-MM4-000

$10.73

19

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

20

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$89.90
