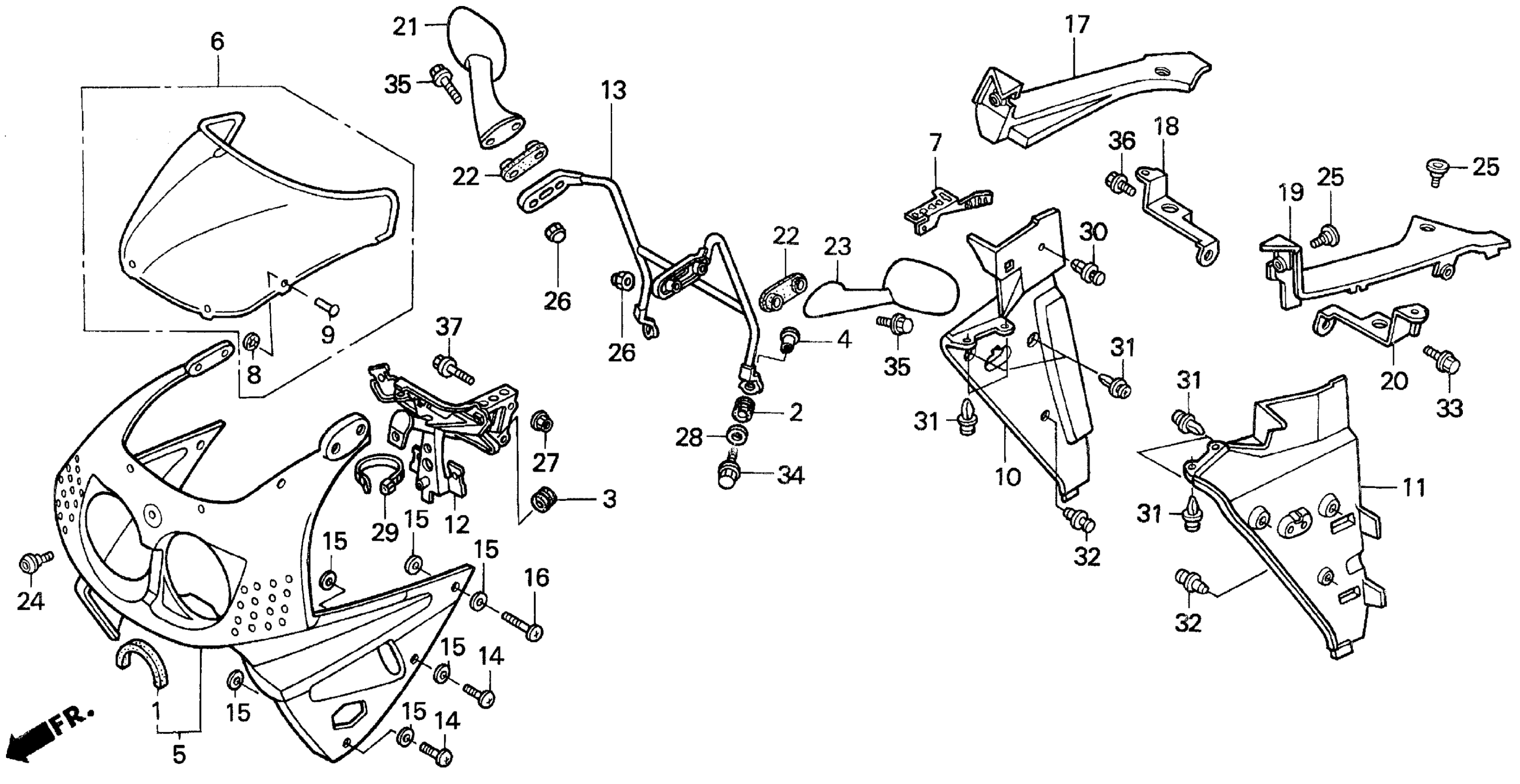

Honda CBR900RRA (93) MOTORCYCLE, JPN, VIN# JH2SC280-PM100002 TO JH2SC280-PM104964 UPPER COWL 93-94 Diagram

#

Description
Price

1

SEAL, HEADLIGHT

33103-MW0-300

Unavailable

2

RUBBER B, TAILLIGHT SETTING

33706-KW7-900

$5.12

3

RUBBER, SPEEDOMETER SETTING

37125-MR7-008

Unavailable

4

COLLAR, SETTING

61104-422-000

$6.91

5

COWL SET (UPPER) (TYPE3) (WL)

64100-MW0-670ZB

Unavailable

5

COWL SET (UPPER) (TYPE4) (WL)

64100-MW0-670ZC

Unavailable

6

WINDSCREEN SET

64110-MW0-405

Unavailable

7

HOLDER, CONNECTOR

64125-MW0-000

Unavailable

8

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

9

PIN, SCREEN SETTING

64206-ML0-700

$3.12

10

COWL, R. MIDDLE (INNER) *NH196* (ROSS WHITE)

64325-MW0-670ZA

Unavailable

10

COWL, R. MIDDLE (INNER) *NH1* (BLACK)

64325-MW0-670ZB

Unavailable

11

COWL, L. MIDDLE (INNER) *NH196* (ROSS WHITE)

64375-MW0-670ZA

Unavailable

11

COWL, L. MIDDLE (INNER) *NH1* (BLACK)

64375-MW0-670ZB

Unavailable

12

STAY A, COWL (UPPER)

64501-MW0-000

Unavailable

13

STAY B, COWL (UPPER)

64502-MW0-000

Unavailable

14

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.52

15

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

16

STUD (6X22) This part replaces 64512-KV3-830.

64512-KV3-831

$15.23

17

PANEL, R. (INNER)

64590-MW0-000

Unavailable

18

STAY, R. PANEL (INNER)

64591-MW0-000

Unavailable

19

PANEL, L. (INNER)

64595-MW0-000

Unavailable

20

STAY, L. PANEL (INNER)

64596-MW0-000

Unavailable

21

MIRROR ASSY., R. BACK *NH1* (BLACK) This part replaces 88110-MW0-003ZA.

88110-MW0-791ZA

Unavailable

21

MIRROR ASSY., R. BACK *NH1* (BLACK)

88110-MW0-791ZA

Unavailable

22

RUBBER, MIRROR SETTING

88116-MW0-000

Unavailable

23

MIRROR ASSY., L. BACK *NH1* (BLACK) This part replaces 88120-MW0-003ZA.

88120-MW0-791ZA

Unavailable

23

MIRROR ASSY., L. BACK *NH1* (BLACK)

88120-MW0-791ZA

Unavailable

24

BOLT, COWL SETTING

90112-MT4-000

$3.31

25

SCREW, PAN (6X14)

90113-MM5-000

$3.10

26

NUT, CAP (6MM)

90201-428-900

$2.23

27

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$3.12

27

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

28

WASHER, PLAIN (22X6X1.6)

90404-PD1-000

$2.44

29

BAND, WIRE

90650-KV6-003

$3.12

30

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

31

CLIP, BODY COVER

90683-GR1-003

$2.92

32

CLIP, AIR IN. COVER This part replaces 91549-SD5-010ZD.

91549-P1E-003

$4.57

32

CLIP, AIR IN. COVER This part replaces 91549-SD5-010ZF.

91549-P1E-003

$4.57

33

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

34

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

35

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

36

BOLT, FLANGE (6X12)

96300-06012-08

$1.80

37

BOLT, FLANGE (8X32)

96400-08032-07

$1.79
