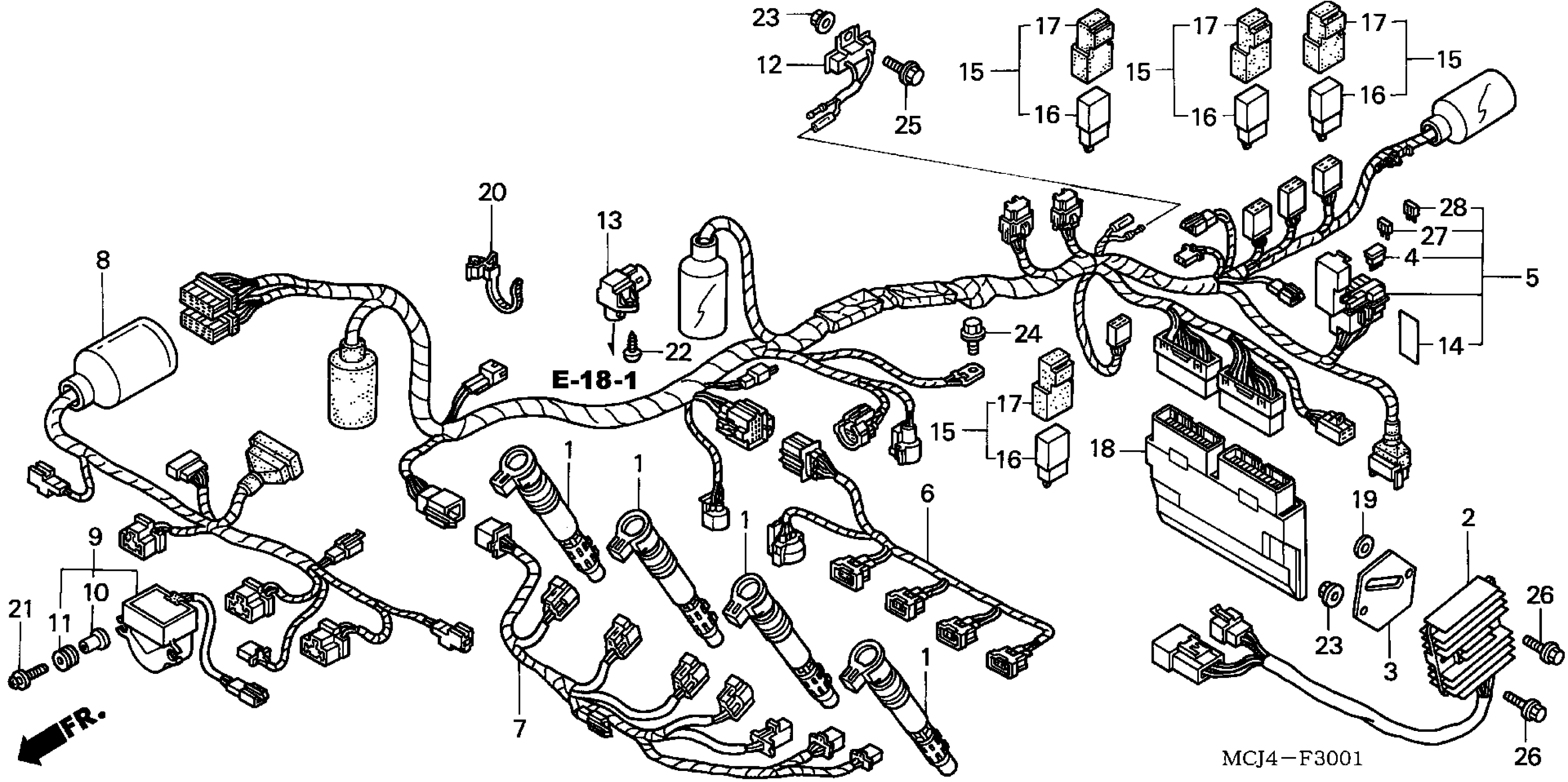

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 WIRE HARNESS (2) Diagram

#

Description
Price

1

COIL, CAP & IGNITION

30700-MBW-611

$77.55

2

RECTIFIER ASSY., REGULATOR

31600-MCJ-750

Unavailable

3

SPACER, REGULATOR RECTIFIER

31605-MCJ-750

Unavailable

4

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

5

WIRE HARNESS

32100-MCJ-A00

Unavailable

6

SUB-WIRE, INJECTOR

32102-MCJ-750

Unavailable

7

SUB-HARNESS, IGNITION

32103-MCJ-750

Unavailable

8

SUB-HARNESS, FR.

32105-MCJ-A00

Unavailable

9

SENSOR ASSY., BANK ANGLE This part replaces 35160-MBW-D21.

35160-MBW-D22

$134.15

9

SENSOR ASSY., BANK ANGLE

35160-MBW-D22

$134.15

10

COLLAR

35162-MN5-003

$7.25

11

GROMMET

35163-MN5-003

$3.15

12

RESISTOR

35400-MCJ-750

Unavailable

13

SENSOR, MAP

37830-MCF-003

$206.58

14

LABEL, FUSE

38215-MCJ-D00

$3.46

15

RELAY ASSY., STARTER

38500-GC7-612

$50.16

16

RELAY, STARTER (MITSUBA)

38501-GN2-014

$49.65

17

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.49

18

PGM-FI UNIT

38770-MCJ-A01

Unavailable

19

WASHER (6MM)

90402-921-000

Unavailable

20

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

21

SCREW-WASHER (4X20)

93891-04020-00

Unavailable

22

SCREW, TAPPING (4X12)

93913-24220

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

25

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

26

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

27

FUSE, MINI (10A)

98200-41000

$1.49

28

FUSE, MINI (20A)

98200-42000

$1.49
