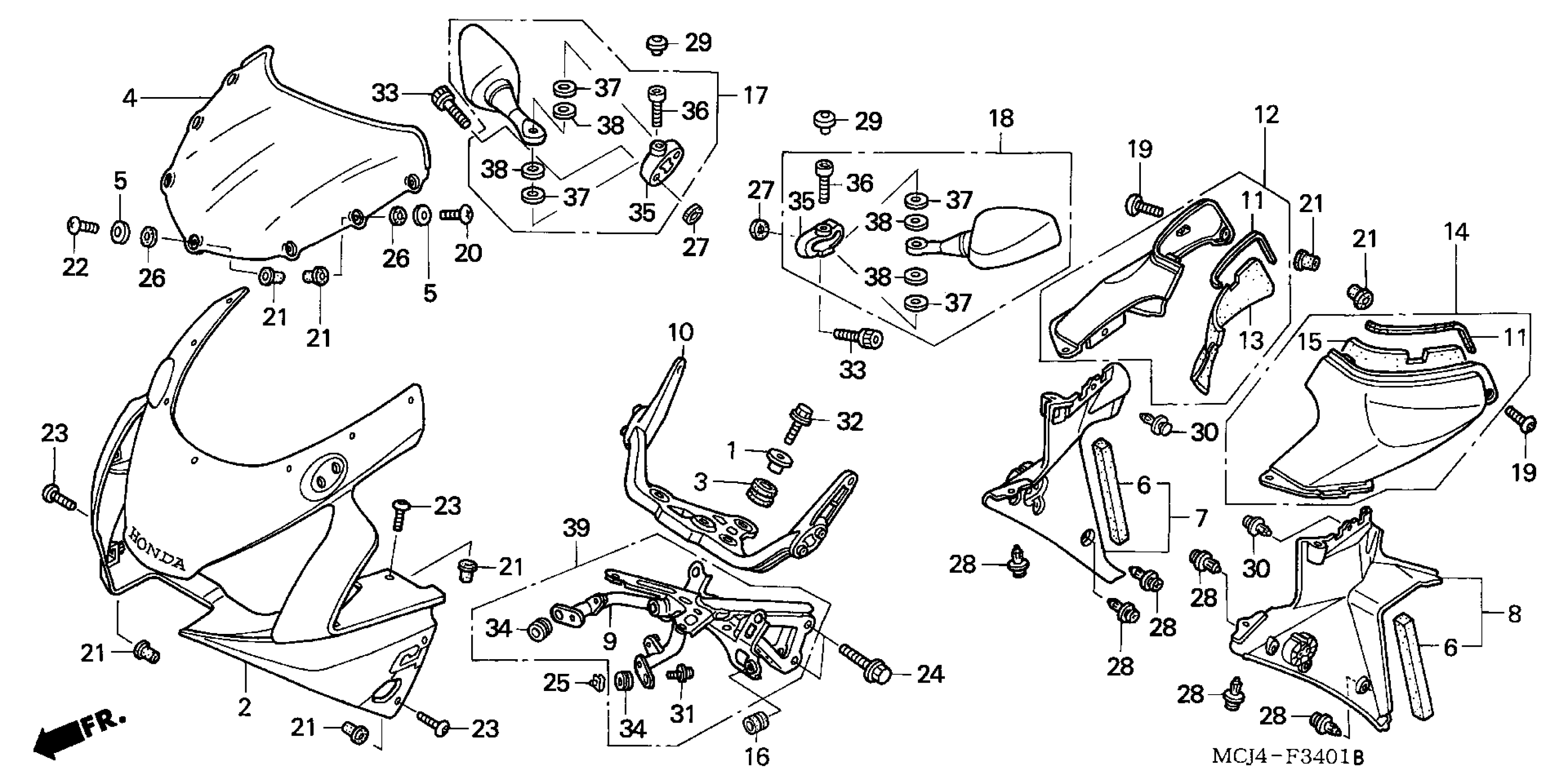

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 UPPER COWL (2) Diagram

COLLAR, SETTING

61104-422-000

$6.91

COWL SET (UPPER) (TYPE1) (WL)

64100-MCJ-A10ZA

Unavailable

COWL SET (UPPER) (TYPE2) (WL)

64100-MCJ-A10ZB

Unavailable

RUBBER B, SIDE SHELTER

64122-KV0-000

$4.53

WINDSCREEN

64200-MCJ-750

Unavailable

WASHER, SCREEN SETTING

64205-166-610

$2.21

SEAL B, FR. SIDE COWL

64317-MBG-300

Unavailable

COWL, R. MIDDLE (INNER) *NH1* (BLACK)

64325-MCJ-750ZA

Unavailable

COWL, L. MIDDLE (INNER) *NH1* (BLACK)

64375-MCJ-750ZA

Unavailable

STAY A, COWL (UPPER)

64501-MCJ-751

$71.70

STAY B, COWL (UPPER)

64502-MCJ-750

$117.41

SEAL, AIR DUCT

64581-MCJ-750

Unavailable

COVER SET, R. DUCT *NH430R* (GENTLE GRAY)

64593-MCJ-750ZA

Unavailable

MAT, R. DUCT COVER

64594-MCJ-750

Unavailable

COVER SET, L. DUCT *NH430R* (GENTLE GRAY)

64598-MCJ-750ZA

Unavailable

MAT, L. DUCT COVER

64599-MCJ-750

$35.16

RUBBER B, RR. COWL MOUNTING

80116-MR1-000

$4.13

MIRROR ASSY., R. BACK

88110-MCJ-023

Unavailable

MIRROR ASSY., L. BACK

88120-MCJ-023

Unavailable

SCREW, PAN (5X20)

90103-MBG-000

$2.02

SCREW, TRUSS (5X15)

90109-MCJ-750

$2.05

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, TRUSS (5X20)

90111-MCJ-750

$2.23

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

BOLT, FLANGE (8X28)

90120-MCJ-000

$3.02

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, THRUST (5MM)

90504-964-000

$1.90

WASHER, BUMPER

90540-SA7-000

$3.17

CLIP, BODY

90683-MBW-003

$2.16

CAP, SOCKET BOLT

91456-371-770

$3.47

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

SCREW-WASHER (5X20)

93891-05020-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, SOCKET (6X14)

96600-06014-07

$1.49

RUBBER, SPEEDOMETER SETTING

80101-028-940

$1.80

BASE, BACK MIRROR

88111-MCJ-003

Unavailable

BOLT, SOCKET (8X25)

90101-MAS-E01

$2.56

WASHER A (8MM)

90501-MAS-E01

$1.90

WASHER (8MM)

90502-MAS-E01

$1.90
