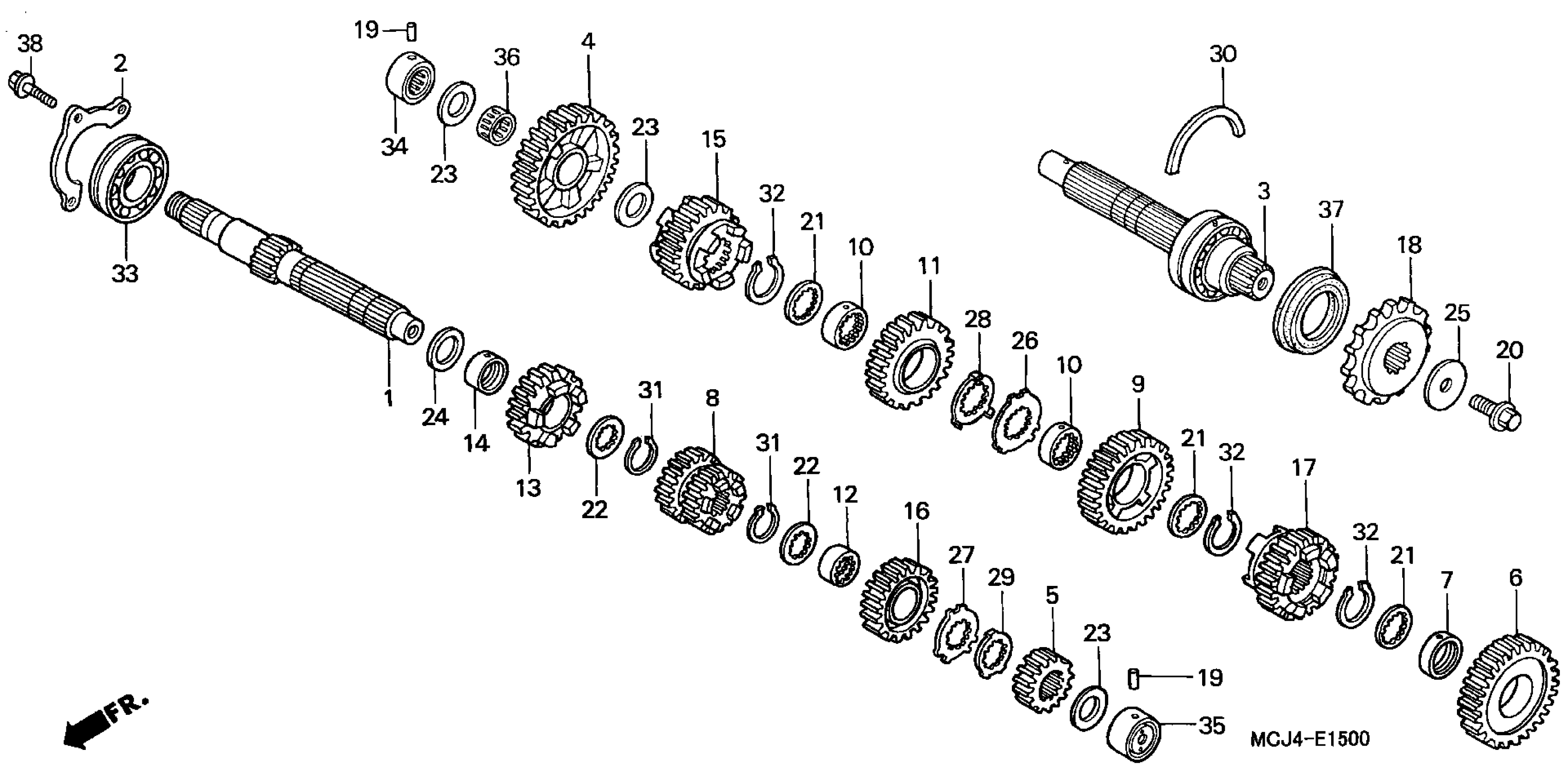

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23211-MCJ-000

Unavailable

2

PLATE, BEARING SETTING

23212-MBW-000

Unavailable

3

COUNTERSHAFT

23220-MCJ-000

Unavailable

4

GEAR, COUNTERSHAFT FIRST (35T)

23421-MCJ-750

Unavailable

5

GEAR, MAINSHAFT SECOND (15T)

23431-MCJ-750

Unavailable

6

GEAR, COUNTERSHAFT SECOND (29T)

23441-MCJ-750

Unavailable

7

COLLAR (30X9.5)

23442-MCJ-000

$12.84

8

GEAR, MAINSHAFT THIRD & FOURTH (20T/20T)

23451-MCJ-750

$154.56

9

GEAR, COUNTERSHAFT THIRD (32T)

23461-MCJ-750

$127.43

10

COLLAR, SPLINE (30X9)

23462-MCJ-000

$12.84

11

GEAR, COUNTERSHAFT FOURTH (28T)

23481-MCJ-750

Unavailable

12

COLLAR, SPLINE (28X16)

23482-MCJ-000

$20.10

13

GEAR, MAINSHAFT FIFTH (21T)

23491-MCJ-750

Unavailable

14

COLLAR (28X13)

23495-MM5-000

$23.00

15

GEAR, COUNTERSHAFT FIFTH (27T)

23501-MCJ-750

Unavailable

16

GEAR, MAINSHAFT TOP (21T)

23511-MCJ-000

Unavailable

17

GEAR, COUNTERSHAFT TOP (25T)

23521-MCJ-750

$125.20

18

SPROCKET, DRIVE (16T)

23801-MCJ-750

$83.30

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

23

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

24

WASHER, THRUST (28MM)

90458-729-920

$5.34

25

WASHER (10.2MM)

90459-438-000

$5.83

26

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

27

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.56

28

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

29

WASHER, LOCK (28MM)

90464-MCJ-000

$5.56

30

SET-RING (62MM)

90602-ML7-000

$9.05

31

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

31

CIRCLIP (28MM)

90603-MN4-000

$4.11

32

CIRCLIP (30MM)

90604-MM5-000

$4.48

33

BEARING, RADIAL BALL (6305) (NTN)

91001-MT7-003

Unavailable

34

BEARING, NEEDLE (22MM) (TOYO)

91022-MM5-003

$59.07

35

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05

36

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

37

OIL SEAL (40X62X8.4) (NOK)

91207-MW0-003

$15.27

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
