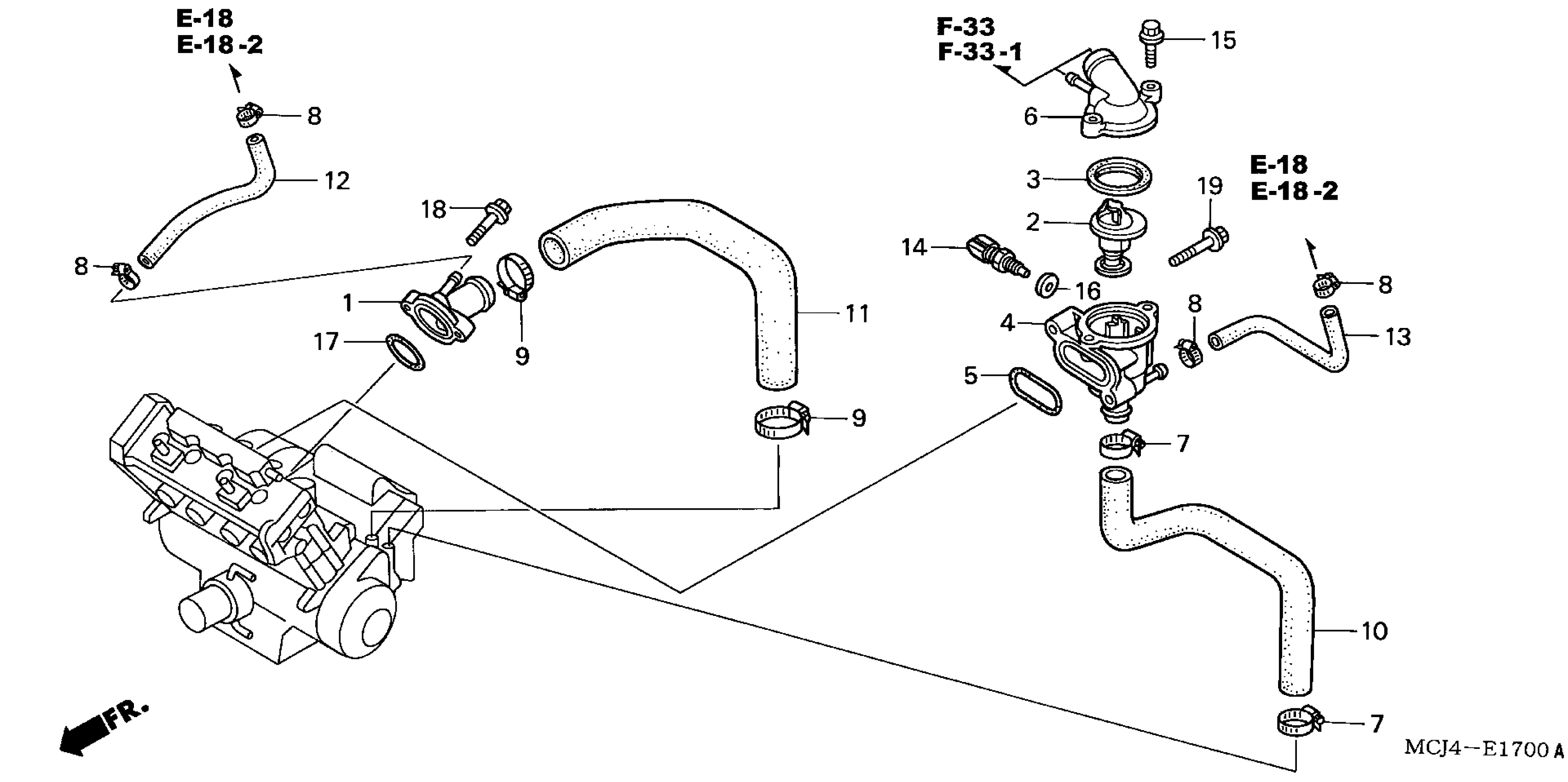

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 THERMOSTAT Diagram

#

Description
Price

1

JOINT, WATER

19060-MCJ-000

Unavailable

2

THERMOSTAT ASSY. This part replaces 19300-MCJ-000.

19300-MCJ-003

$51.92

2

THERMOSTAT

19300-MCJ-003

$51.92

3

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

4

CASE, THERMOSTAT

19311-MCJ-305

Unavailable

5

GASKET, THERMOSTAT CASE

19312-MBW-000

$3.72

6

COVER, THERMOSTAT

19315-MCJ-750

Unavailable

7

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

8

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

9

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

10

HOSE, BYPASS

19523-MCJ-000

Unavailable

11

HOSE A, WATER

19525-MCJ-000

Unavailable

12

HOSE C, WATER

19527-MCJ-750

Unavailable

13

HOSE D, WATER

19528-MCJ-000

Unavailable

14

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$83.34

15

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.75

16

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

17

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

17

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
