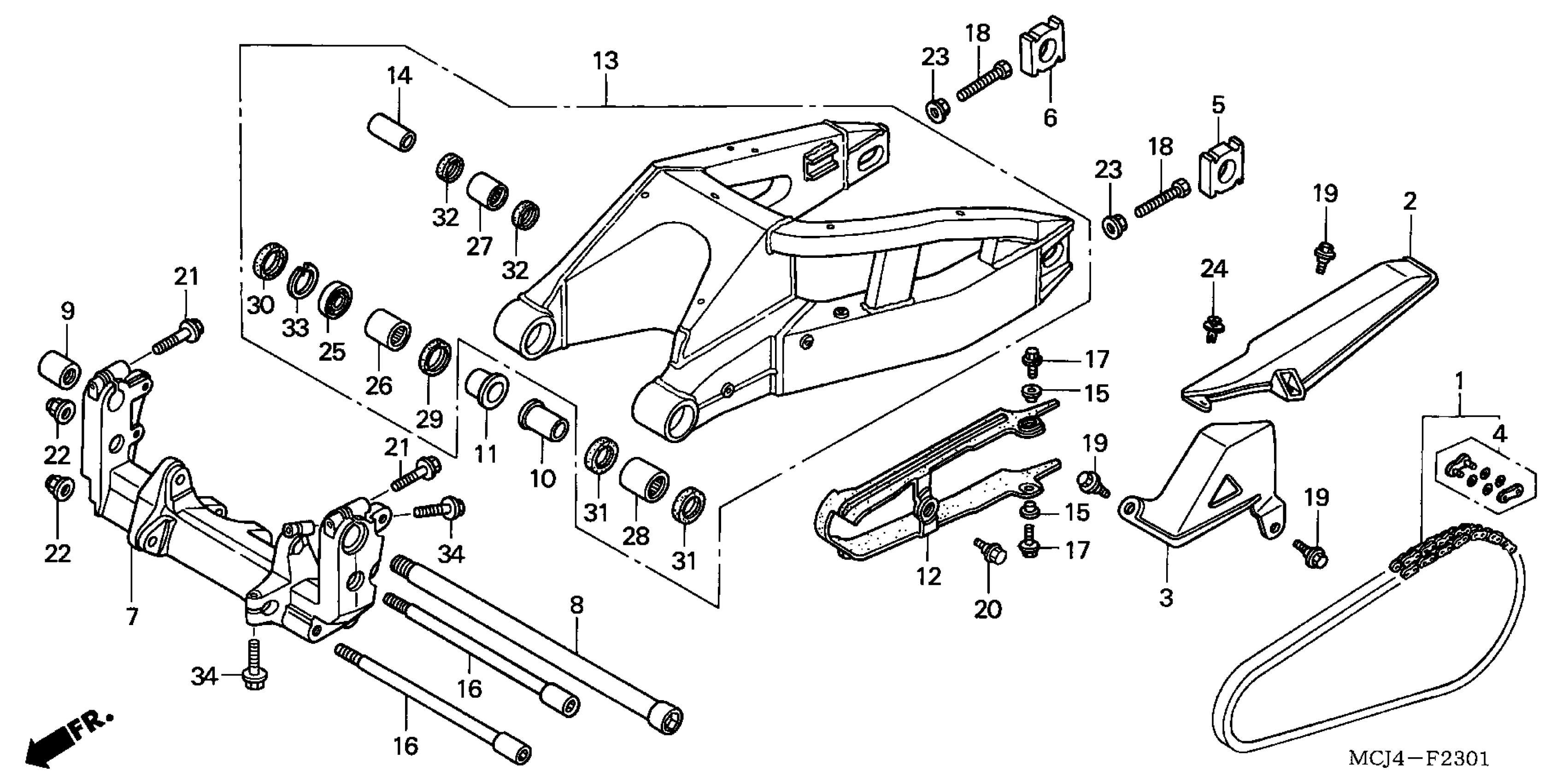

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 SWINGARM (2) Diagram

CHAIN SET, DRIVE (DID50 102-120L) (DAIDO) (NOT AVAILABLE)

06405-MCF-P00

Unavailable

CHAIN SET, DRIVE (RK50 102-120L) (RK EXCEL) (NA USE ALT:40540-MCJ-005)

06405-MCJ-000

Unavailable

CASE A, DRIVE CHAIN

40510-MCJ-000

$68.41

CASE B, DRIVE CHAIN

40520-MCJ-000

Unavailable

MASTER LINK (DID)

40545-MCF-003

Unavailable

MASTER LINK (RK EXCEL)

40545-MCJ-005

$7.84

COLLAR, L. RR. AXLE

42305-MCJ-000

Unavailable

COLLAR, R. RR. AXLE

42306-MCJ-000

Unavailable

BRACKET, RR. CUSHION (LOWER)

50300-MCJ-750

Unavailable

BOLT, SWINGARM PIVOT

52101-MCJ-750

$59.41

NUT, SWINGARM PIVOT

52102-MCJ-000

Unavailable

COLLAR, L. PIVOT DISTANCE

52143-MCJ-000

Unavailable

COLLAR, R. PIVOT DISTANCE

52144-MCJ-750

Unavailable

SLIDER, CHAIN

52170-MCJ-750

$58.21

SWINGARM SUB-ASSY.

52200-MCJ-750

Unavailable

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

COLLAR

81312-GJ5-000

$3.31

BOLT, SOCKET (10X157)

90104-MCJ-000

Unavailable

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

BOLT, HEX. (8X50)

90106-MCJ-000

$2.51

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

BOLT, CHAIN SLIDER

90130-MCJ-750

$3.06

BOLT, FLANGE (8X50)

90166-MCJ-000

$2.33

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, HEX. (8MM)

90309-357-000

$3.40

CLIP, BODY COVER

90683-GR1-003

$2.92

BEARING, RADIAL BALL (6905)

91053-MCJ-003

$16.79

BEARING, NEEDLE (32X42X20)

91053-MCJ-751

$32.10

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

BEARING, NEEDLE (32X42X37)

91071-MCJ-003

$21.06

DUST SEAL (32X39X5)

91251-MCJ-003

Unavailable

DUST SEAL (32X45X5)

91252-MCF-003

$6.91

DUST SEAL (32X42X6)

91253-MCF-003

$6.41

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

CIRCLIP (INNER) (45MM)

94520-45000

$2.19

BOLT, FLANGE (8X38)

96300-08038-00

$1.74
