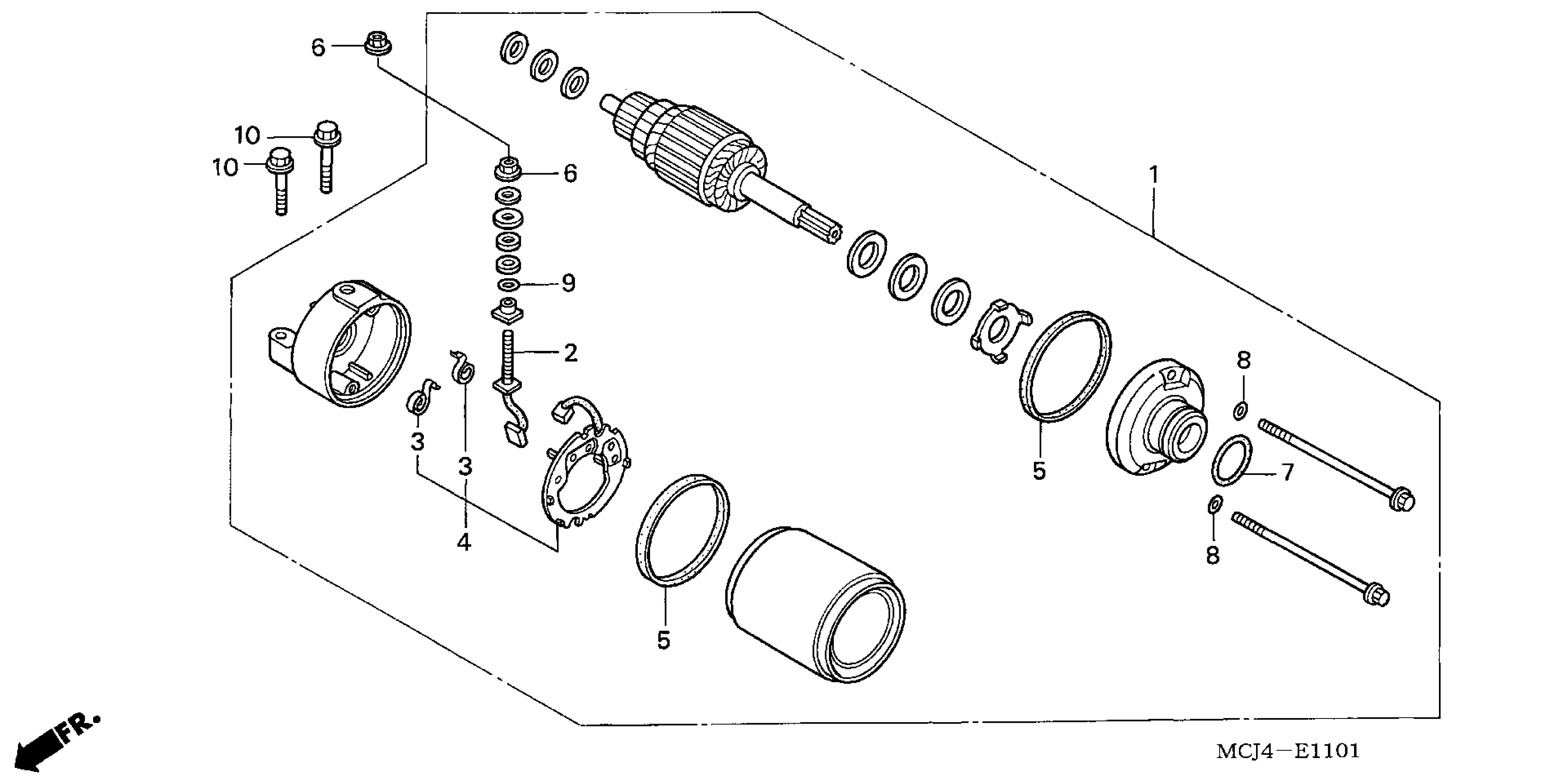

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 STARTING MOTOR (2) Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MCJ-751

Unavailable

2

TERMINAL SET, BRUSH

31201-MBE-008

$10.48

3

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

4

HOLDER SET, BRUSH

31206-MBE-008

$23.72

5

RING

31207-MBE-008

$3.96

6

NUT-WASHER (6MM)

90071-MB0-000

$1.91

7

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$5.80

7

O-RING (24.4X3.1)

91312-MG7-003

$5.80

8

O-RING

91320-MBE-008

$2.25

9

O-RING (4X2)

91320-MB0-000

$2.24

10

BOLT, FLANGE (6X28)

95701-06028-00

$1.81
