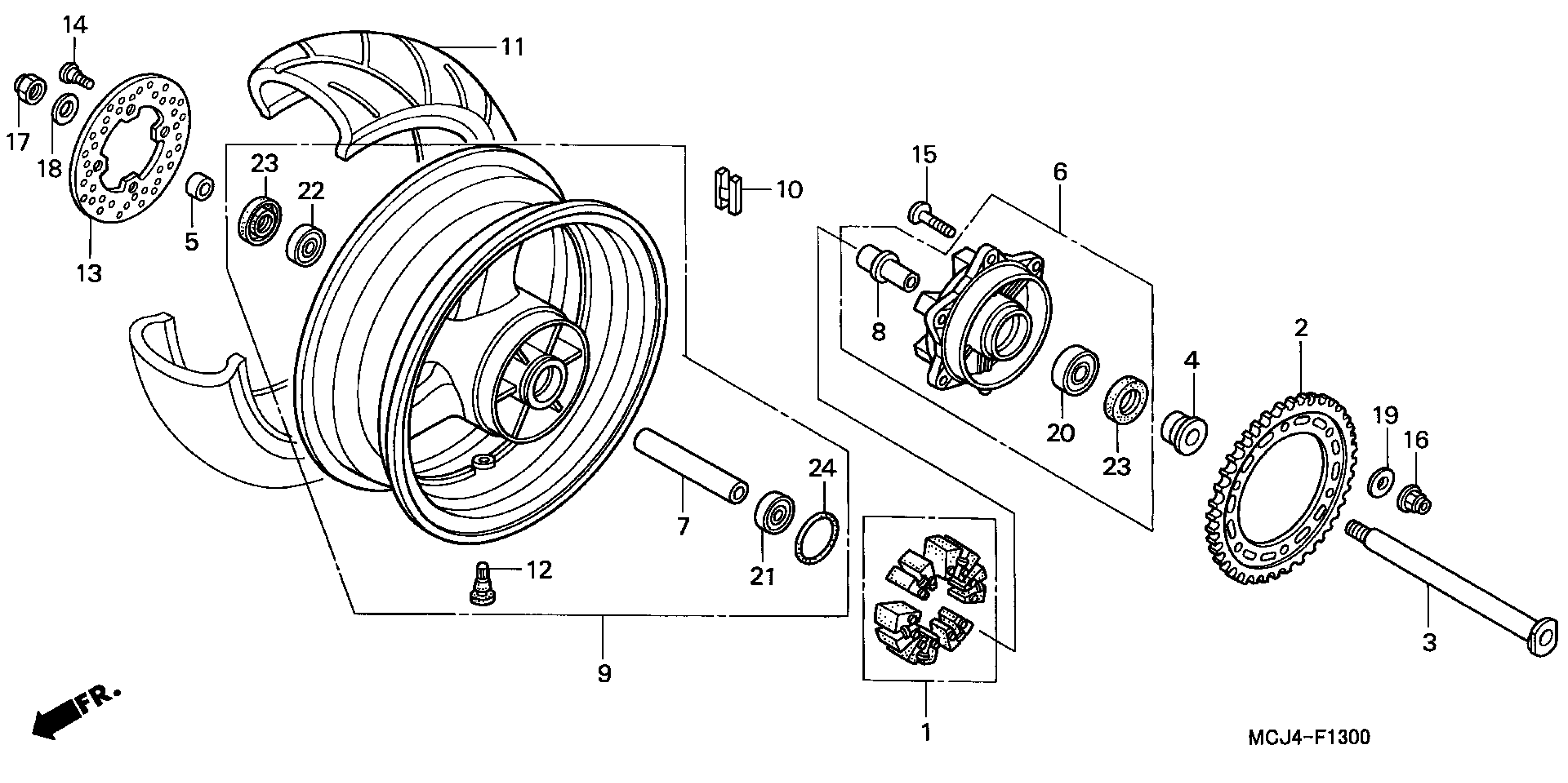

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MCF-000

$75.12

2

SPROCKET, FINAL DRIVEN (43T)

41201-MCJ-670

Unavailable

3

AXLE, RR. WHEEL

42301-MCJ-750

Unavailable

4

COLLAR, RR. WHEEL SIDE

42311-MCJ-750

$16.99

5

COLLAR, RR. BRAKE SIDE

42312-MCJ-750

Unavailable

6

FLANGE SUB-ASSY., RR. DRIVEN

42615-MCF-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-MCF-000

Unavailable

8

COLLAR B, RR. WHEEL DISTANCE

42625-MCF-000

$26.59

9

WHEEL SUB-ASSY., RR. (TYPE2)

42650-MCJ-750ZA

Unavailable

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

11

TIRE, RR. (190/50ZR17) (73W PSE) (MICHELIN) (NA USE ALT:42711-MCJ-003)

42711-MCJ-007

Unavailable

11

TIRE, RR. (190/50ZRR17) (M/C 73W) (BS)

42711-MCJ-751

Unavailable

12

VALVE, RIM (BS)

42753-ML7-003

$12.74

12

VALVE, RIM (MICHELIN)

42753-MT4-005

$6.23

13

DISK, RR. BRAKE This part replaces 43251-MCJ-000.

43251-MEE-000

$229.93

13

DISK, RR. BRAKE

43251-MEE-000

$229.93

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

BOLT (10X30)

90121-MCF-000

$3.24

16

NUT, U (10MM)

90304-KAE-871

$4.33

17

NUT, U (22MM)

90305-KZ4-J20

$8.96

17

NUT, U (22MM) This part replaces 90305-MAZ-000.

90305-KZ4-J20

$8.96

18

WASHER (23X37X2.5)

90401-MCJ-000

$5.05

19

WASHER (10MM)

90502-MCF-000

$2.80

20

BEARING, RADIAL BALL (27X52X23.8)

91051-MCF-003

$43.89

21

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

22

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

23

DUST SEAL (35X52X7.5) This part replaces 91254-MCF-003.

91254-MEE-003

$6.91

23

DUST SEAL (35X52X7.5)

91254-MEE-003

$6.91

24

O-RING (51X2)

91352-MCF-003

$3.77
