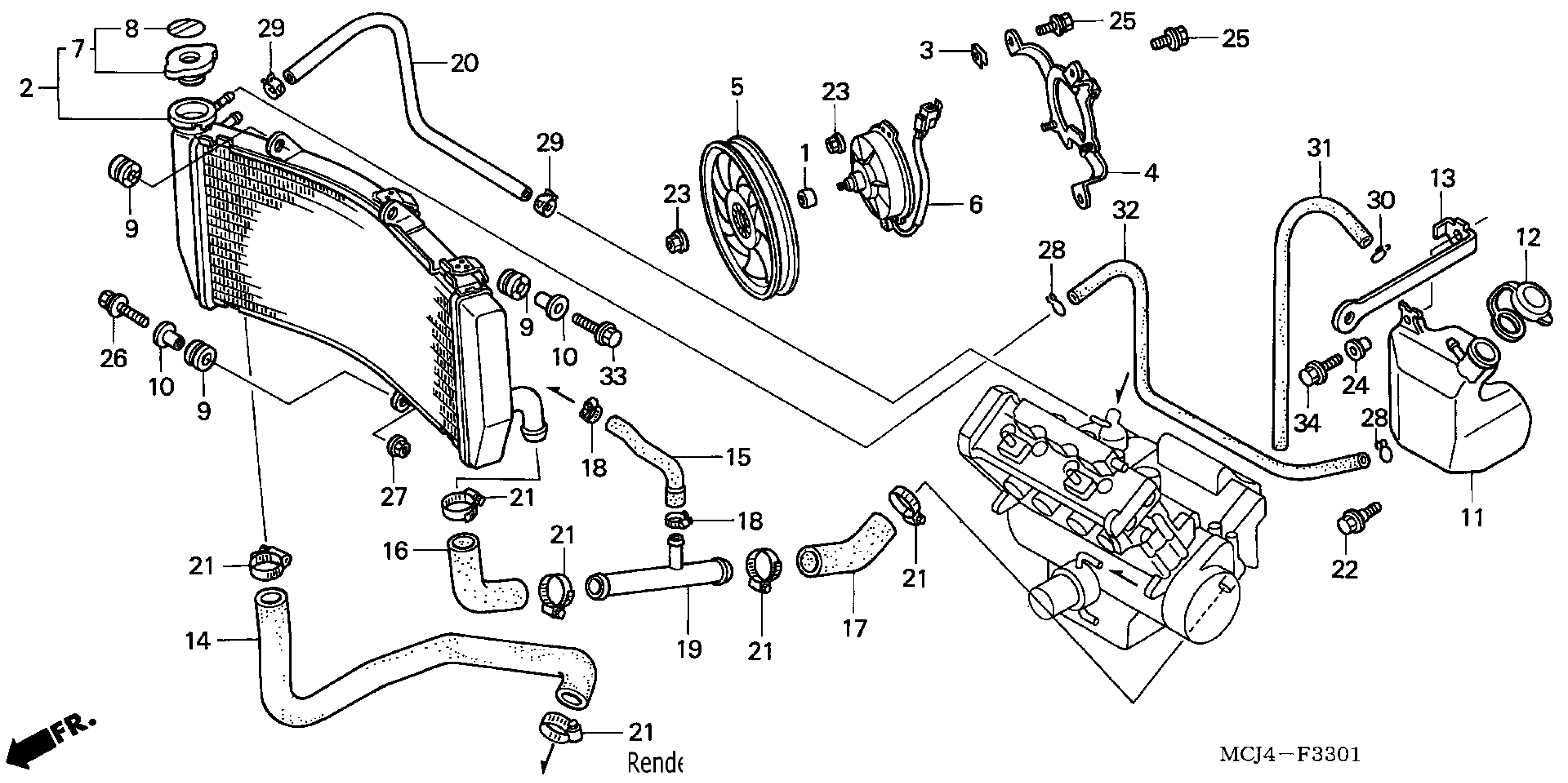

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 RADIATOR (2) Diagram

#

Description
Price

1

COLLAR

19006-MCJ-003

Unavailable

2

RADIATOR

19010-MCJ-751

Unavailable

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD

19015-MCJ-003

Unavailable

5

FAN, COOLING

19020-MCF-003

Unavailable

6

MOTOR ASSY., FAN

19030-MCJ-751

Unavailable

7

CAP, RADIATOR

19037-GEE-710

$27.80

8

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

10

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

11

TANK, RADIATOR RESERVE

19101-MCJ-000

$45.76

12

CAP, RESERVE TANK

19104-MB0-700

$11.16

13

STAY, RADIATOR

19113-MCJ-000

Unavailable

14

HOSE, RADIATOR (UPPER)

19501-MCJ-750

Unavailable

15

HOSE, OIL COOLER

19502-MCJ-750

Unavailable

16

HOSE, L. RADIATOR (UPPER)

19503-MCJ-750

$9.57

17

HOSE, L. RADIATOR (LOWER)

19504-MCJ-750

Unavailable

18

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

19

JOINT, HOSE (THREE-WAY)

19507-MCJ-750

Unavailable

20

TUBE, WATER

19511-MCJ-000

$15.61

21

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

22

BOLT, FLANGE (6MM)

90111-162-000

$2.66

23

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

24

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.79

25

BOLT-WASHER (6X14)

93401-06014-00

$1.63

26

BOLT-WASHER (6X28)

93404-06028-00

$0.94

27

NUT, FLANGE (6MM)

94050-06000

$0.60

28

CLIP, TUBE (B10)

95002-02100

$1.75

29

CLAMP, TUBE (D12.5)

95002-41250-08

$2.31

30

CLIP, TUBE (C9)

95002-50000

$1.16

31

BULK HOSE, VACUUM (5X3000) (5X520)

95005-50003-30M

Unavailable

32

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

33

BOLT, FLANGE (6X25)

96001-06025-07

$1.24

34

BOLT, FLANGE (6X20)

96300-06020-00

$1.19
