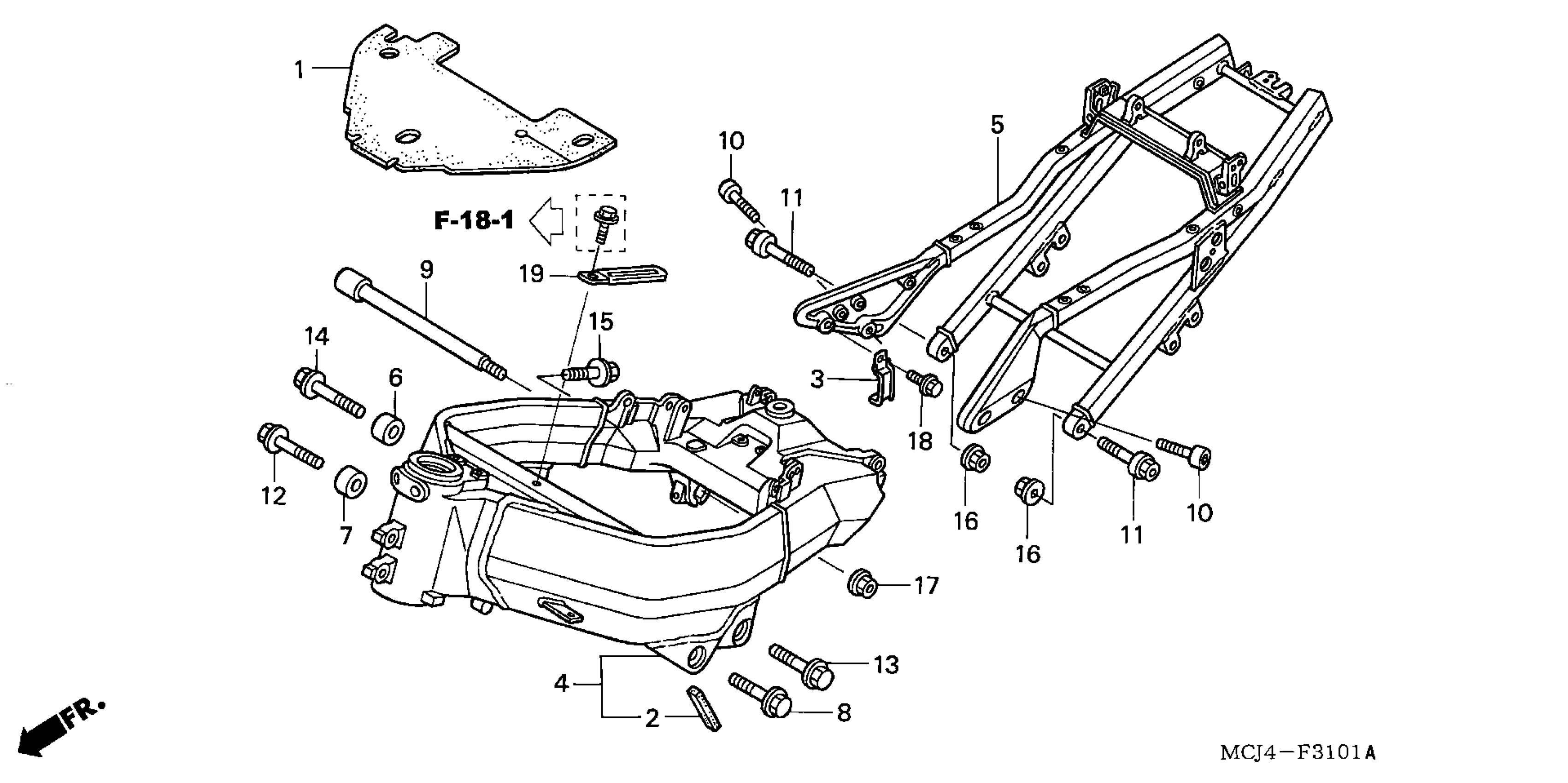

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 FRAME (2) Diagram

GUARD, HEAT

19126-MCJ-750

Unavailable

SEAL, HEAT GUARD

19127-MCJ-300

Unavailable

CLAMP, HARNESS

32972-MCJ-750

Unavailable

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

50100-MCJ-A00ZA

$2,059.69

RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)

50200-MCJ-750ZA

Unavailable

COLLAR B, ENGINE HANGER

50352-MCJ-000

Unavailable

COLLAR, RR. ENGINE HANGER

50355-KT8-000

Unavailable

BOLT, FLANGE (10X45)

90101-MBW-000

$3.89

BOLT, SOCKET (12X183)

90102-MCJ-000

Unavailable

BOLT, SOCKET (8X25)

90102-MN8-700

$3.89

BOLT, SPECIAL (10X39)

90110-MCJ-750

Unavailable

BOLT, FLANGE (10X55)

90162-MCJ-000

$2.90

BOLT, FLANGE (12X50)

90163-MCJ-000

Unavailable

BOLT, FLANGE (12X60)

90164-MCJ-000

$4.67

BOLT, FLANGE (8X40)

90165-MCJ-000

$2.43

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

CLIP, WIRE

91406-166-000

$3.83
