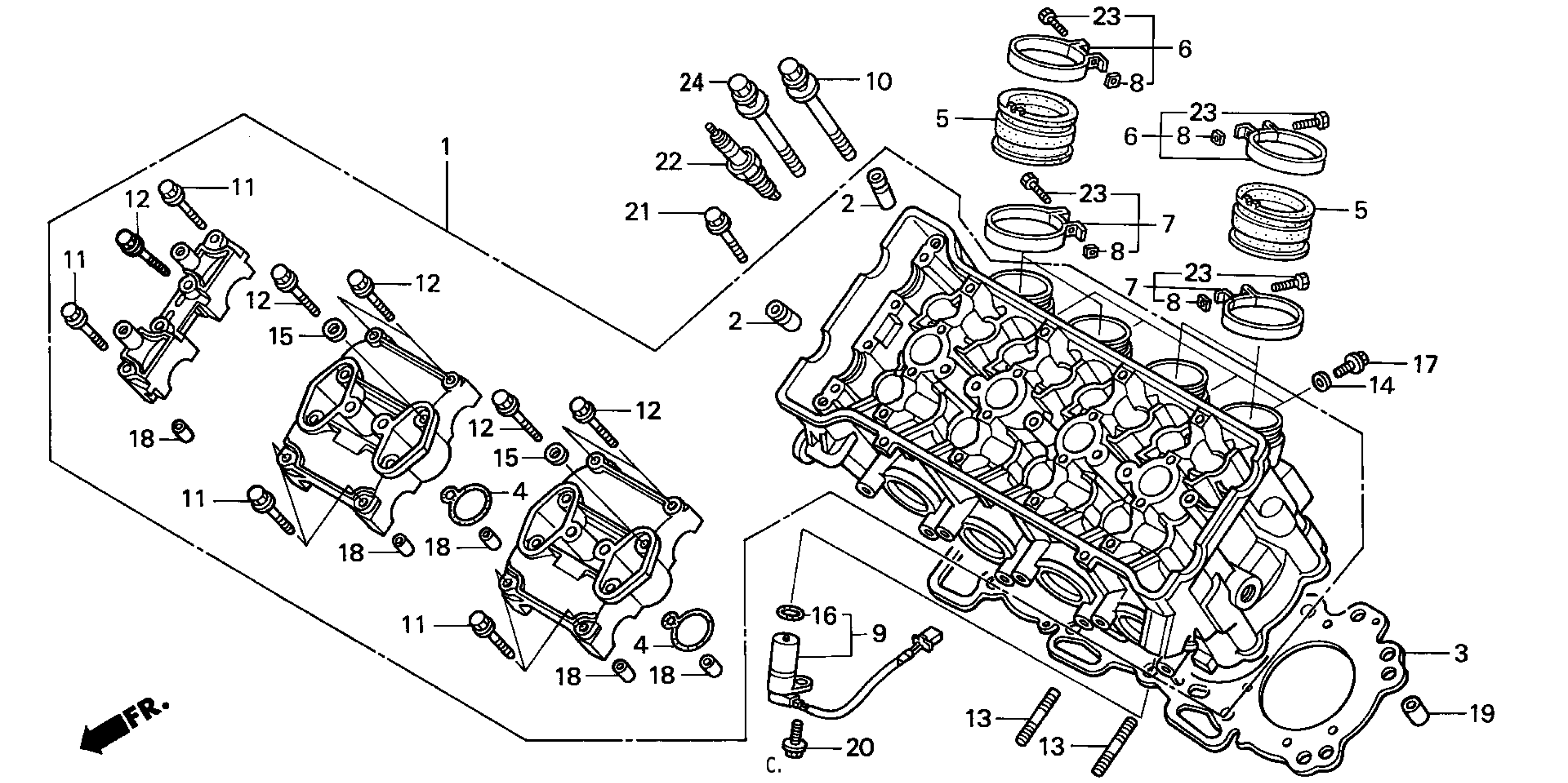

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MCJ-750

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MCJ-305

Unavailable

3

GASKET, CYLINDER HEAD | Use up to Engine SN 2118762 This part replaces 12251-MCJ-751.

12251-MCJ-752

$83.51

3

GASKET, CYLINDER HEAD

12251-MCJ-752

$83.51

4

GASKET, PLUG HOLE

12395-MCJ-000

$4.94

5

INSULATOR, THROTTLE BODY

16210-MCJ-000

Unavailable

6

BAND A, INSULATOR

16217-MCJ-000

$9.07

7

BAND B, INSULATOR

16218-MCJ-000

$8.76

8

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

9

PULSER ASSY., CAM This part replaces 36140-MCJ-000.

36140-MCJ-003

Unavailable

9

PULSER ASSY., CAM

36140-MCJ-003

Unavailable

10

BOLT-WASHER (9X95) | Use up to Engine SN 2118762

90007-MAL-A00

$8.07

10

BOLT-WASHER (9X95) | Use from Engine SN 2118763

90007-MAL-A00

$8.07

11

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

12

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

13

BOLT, STUD (8X29)

90035-MCJ-000

$4.15

15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

16

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

18

PIN, DOWEL (8X20)

94301-08200

$2.25

19

PIN, DOWEL (10X16)

94301-10160

$2.28

20

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

21

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

22

SPARK PLUG (IMR8C-9H) (NGK) | (Optional).

31911-MBW-E11

$15.29

22

SPARK PLUG (IMR9C-9H) (NGK)

31912-MBW-E11

$15.29

22

SPARK PLUG (VUH24D) (DENSO) | (Optional).

31921-MBW-E12

$34.57

22

SPARK PLUG (VUH27D) (DENSO)

31922-MBW-E12

$32.60

23

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

24

BOLT-WASHER (9X100) | Use from Engine SN 2118763

90007-MCW-000

$4.04
