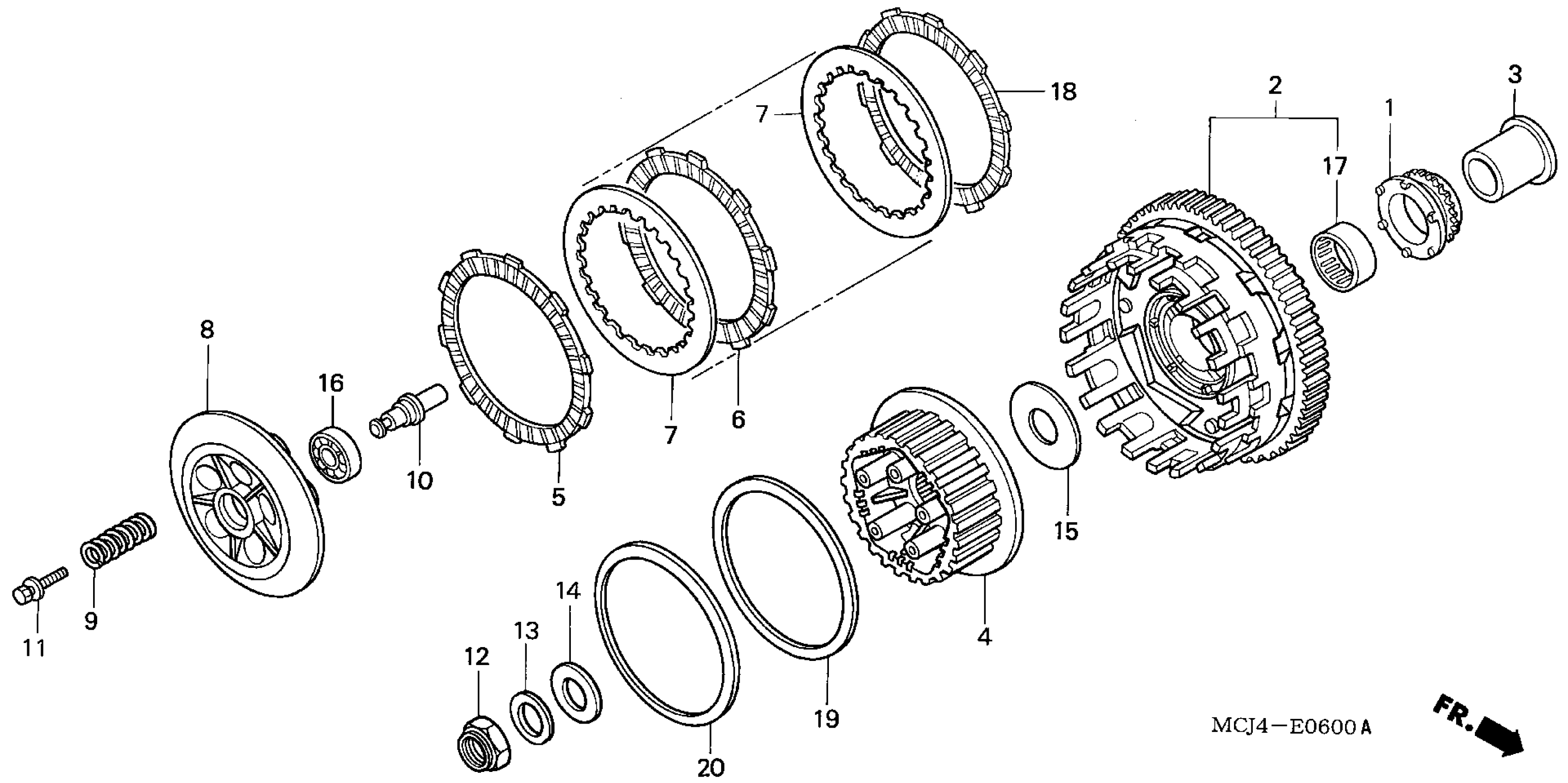

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

Unavailable

2

CLUTCH (OUTER)

22100-MCJ-010

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MBW-000

Unavailable

4

CENTER, CLUTCH

22120-MCJ-000

Unavailable

5

DISK, CLUTCH FRICTION

22201-MAL-600

Unavailable

6

DISK, CLUTCH FRICTION

22201-MAS-E00

$11.69

7

PLATE, CLUTCH

22321-MW0-000

$15.44

8

PLATE, CLUTCH PRESSURE

22350-MCJ-000

$57.71

9

SPRING, CLUTCH

22401-MAS-E00

$4.49

10

PIN, CLUTCH LIFTER

22847-MAE-000

$58.63

11

BOLT-WASHER (6X28)

90024-MAS-000

$3.48

12

NUT, LOCK (22MM)

90231-MM5-000

$9.38

13

WASHER, SPRING (22MM)

90432-MM5-000

$7.66

14

WASHER, THRUST (22X39X2)

90451-KG4-000

$4.28

15

WASHER (60X25X2)

90459-MM4-000

$9.63

16

BEARING, RADIAL BALL (16003)

91009-MAS-003

$20.39

17

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$81.87

18

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.37

19

SEAT, JUDDER SPRING

22125-ML7-000

$9.59

20

SPRING, JUDDER

22402-MAS-E00

$18.88
