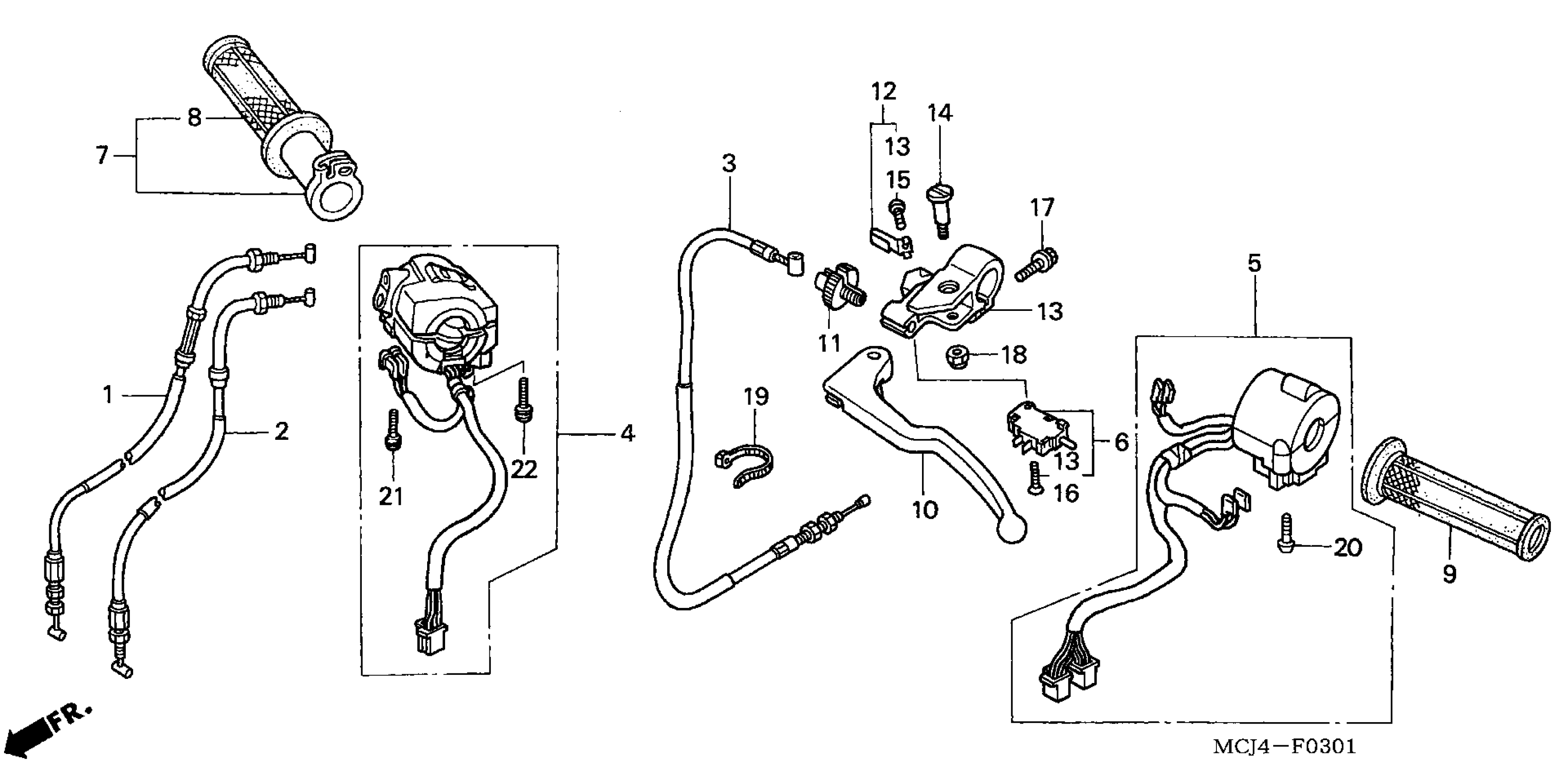

Honda CBR900RRA (03) CBR954RR, JPN, VIN# JH2SC500-3M100001 CABLE + SWITCH (2) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCJ-751

Unavailable

2

CABLE B, THROTTLE

17920-MCJ-751

Unavailable

3

CABLE, CLUTCH

22870-MCJ-750

Unavailable

4

SWITCH SET, STARTER STOP This part replaces 35013-MCJ-A00.

35013-MCJ-A02

Unavailable

4

SWITCH SET, STARTER STOP This part replaces 35013-MCJ-A01.

35013-MCJ-A02

Unavailable

4

SWITCH SET, STARTER STOP

35013-MCJ-A02

Unavailable

5

SWITCH SET, TURN SIGNAL

35020-MCJ-A00

Unavailable

6

SWITCH SET, CLUTCH This part replaces 35335-MCJ-750.

35335-MCJ-751

$12.82

6

SWITCH SET, CLUTCH

35335-MCJ-751

$12.82

7

GRIP, R.

53140-MY9-890

$28.67

8

GRIP, R. HANDLE (NA USE ALT:53140-MCF-305)

53165-MY9-890

Unavailable

9

GRIP, L. HANDLE This part replaces 53166-MGF-305.

53166-MY9-890

$16.22

9

GRIP, L. HANDLE This part replaces 53166-MY9-305.

53166-MY9-890

$16.22

9

GRIP, L. HANDLE

53166-MY9-890

$16.22

10

LEVER, L. HANDLE

53182-MCJ-750

$21.52

11

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.03

12

SPRING SET, CLUTCH LEVER This part replaces 53190-MCJ-750.

53190-MCJ-751

$3.78

12

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$3.78

13

BRACKET SET, CLUTCH LEVER This part replaces 53195-MCJ-750.

53195-MCJ-751

$22.90

13

BRACKET SET, CLUTCH LEVER

53195-MCJ-751

$22.90

14

BOLT, LEVER PIVOT

90122-MCJ-750

$4.47

15

SCREW, PAN (4X10) This part replaces 90123-MCJ-750.

90123-MCJ-751

$0.84

15

SCREW, PAN (4X10)

90123-MCJ-751

$0.84

16

SCREW, FLAT (3X16) This part replaces 90124-MCJ-750.

90124-MCJ-752

$0.57

16

SCREW, FLAT (3X16) This part replaces 90124-MCJ-751.

90124-MCJ-752

$0.57

16

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

17

BOLT, FLANGE (6X20)

90126-MCJ-750

$1.71

18

NUT, U (6MM)

90301-MCJ-750

$2.06

19

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

20

SCREW, PAN (5X20)

93500-05020-0A

$0.75

21

SCREW-WASHER (5X20)

93892-05020-07

$0.78

22

SCREW-WASHER (5X25)

93892-05025-07

$0.99
